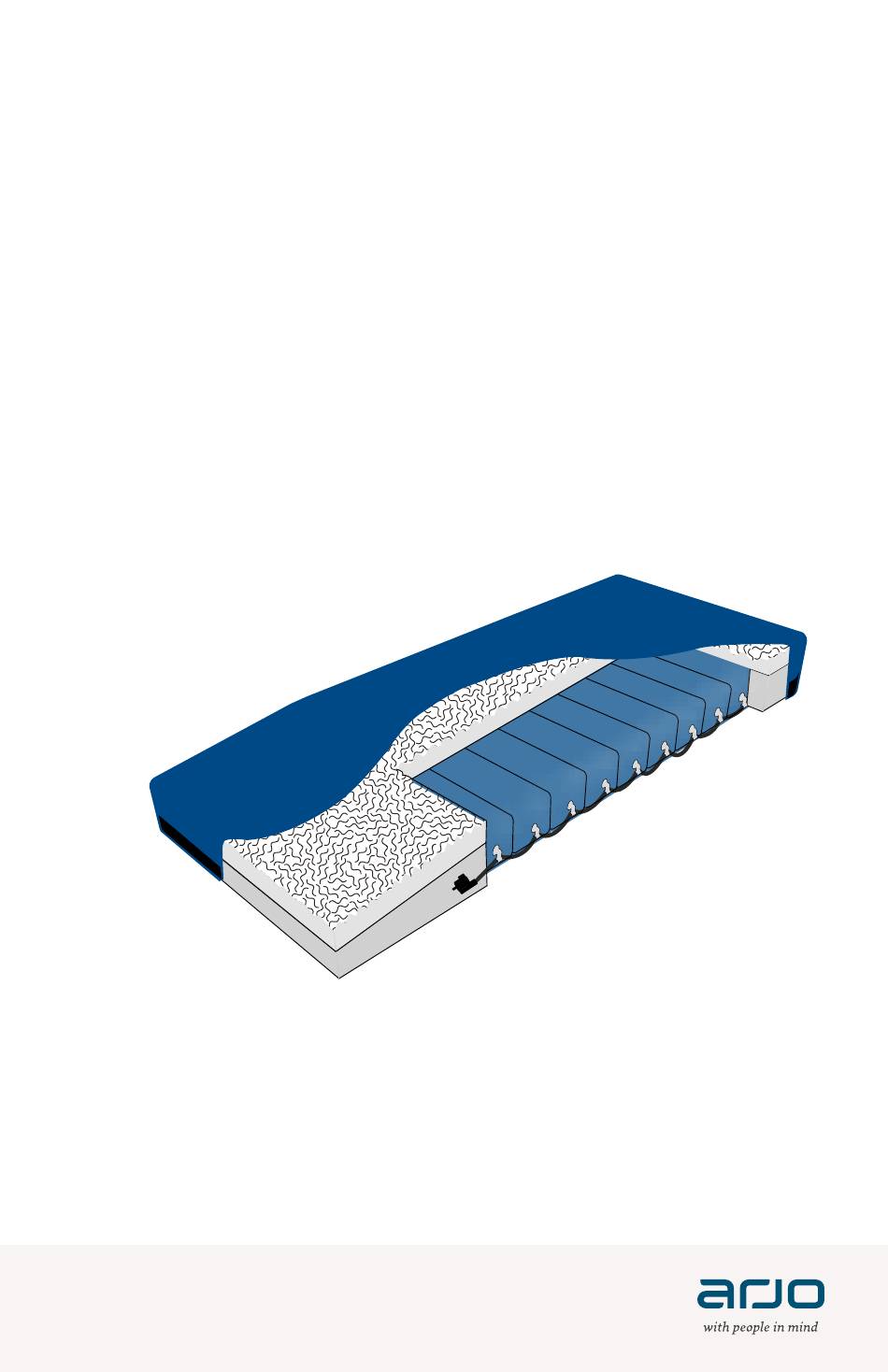

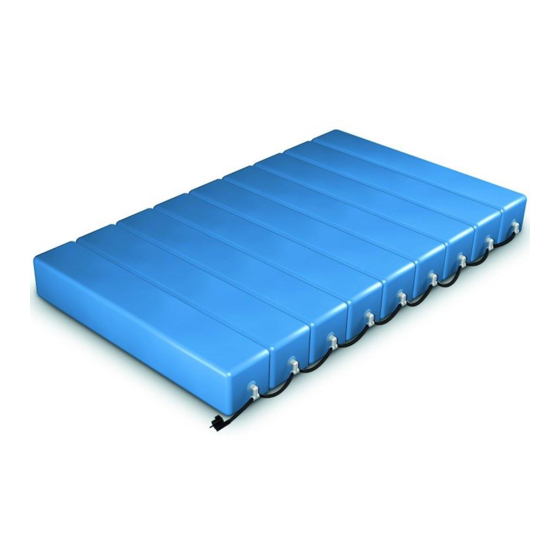

INSTRUCTIONS FOR USE
AtmosAir
Mattress Replacement System
AtmosAir with SAT 4000 series
AtmosAit with SAT 9000 series
AtmosAir with SAT APod 25 series
AtmosAir with SAT T-series
AtmosAir with SAT V-series
AtmosAir with SAT M-series
407384-AH Rev 05 • 09/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AtmosAir SAT 4000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjo AtmosAir SAT 4000 Series

Summary of Contents for Arjo AtmosAir SAT 4000 Series

  • Page 1 INSTRUCTIONS FOR USE AtmosAir Mattress Replacement System AtmosAir with SAT 4000 series AtmosAit with SAT 9000 series AtmosAir with SAT APod 25 series AtmosAir with SAT T-series AtmosAir with SAT V-series AtmosAir with SAT M-series 407384-AH Rev 05 • 09/2019...
  • Page 2 Mandatory to read the Instructions for Use. ® and ™ are trademarks belonging to the Arjo group of companies © Arjo 2019. SAT™ (Self Adjusting Technology™) is a trademark of MPTI, Ltd. Total Care and VersaCare are trademarks of Hill-Rom and / or its affiliates.
  • Page 3 Contact Arjo for updates. Important Information For Users In order for Arjo products to perform properly, Arjo recommends the following conditions. Failure to comply with these conditions will void any applicable warranties. • Use this product only in accordance with these instructions and applicable product labeling.
  • Page 4 Intentionally left blank...

  • Page 5: Table Of Contents

    Table Of Contents Introduction .......................3 Indications ........................3 Contraindications ......................3 Risks and Precautions ....................3 Safety Information ......................4 Serious Incident ......................5 Mattress Installation ..................6 AtmosAir with SAT 4000, 9000 (all models), APod 25 (all models), T-Series* (all models) ........................6 AtmosAir with SAT V-Series* ..................
  • Page 6 Intentionally left blank...

  • Page 7: Introduction

    • AtmosAir with SAT M-Series (non powered) The AtmosAir MRS comes in a wide variety of lengths and widths to support various customer requirements. Contact an Arjo representative for additional product information. Indications • AtmosAir MRS are intended to treat and prevent pressure ulcers.

  • Page 8: Safety Information

    Patient Migration – Specialty surfaces have different shear and support characteristics than conventional surfaces and may increase the risk of patient movement, sinking and / or migration into hazardous positions of entrapment and / or inadvertent bed exit. Monitor patients frequently to guard against patient entrapment. Oxygen Use –...
  • Page 9 Side Rails / Patient Restraints - Whether and how to use side rails or restraints is a decision that should be based on each patient’s needs and should be made by the patient and the patient’s family, physician and caregivers, with facility protocols in mind.

  • Page 10: Serious Incident

    Fire Barrier Contact – Care should be taken with regards to the fire barrier when the cover is removed. It is recommended that Personal Protective Equipment (PPE) is used during handling of the mattress with the fire barrier exposed to avoid contact with loose particles.

  • Page 11: Mattress Installation

    Preparation for Use For information concerning the bed frame refer to the manufacturers' User Guide. Open shipping container(s). Do not use sharp instruments to open boxes. Damage to mattress could result. Remove AtmosAir with SAT MRS from plastic protective cover. The mattress cover may appear wrinkled when unpacked.

  • Page 12: Atmosair With Sat V-Series

    AtmosAir with SAT V-Series* V-Series mattress on VersaCare™ Frame Position mattress on bed frame with logo facing up and product Pocket information tags at foot end of Locking Bar bed. Slide locking bar located in pocket on underside of headend of mattress to one side, as shown at right (Figure 1).

  • Page 13: Atmosair With Sat M-Series

    Finished Installation Figure 5 When removing the AtmosAir with SAT V-Series, be sure to disengage locking bar and magnets before removing from bed frame. AtmosAir with SAT M-Series* M-Series mattress installation on Multicare frame Position mattress on bed frame with logo facing up and product information tags at foot end of bed.

  • Page 14: Atmosair Pump Installation

    AtmosAir Pump Installation Pump installation steps for A and AR models: Place pump on a solid stationary surface or suspend on end of bed frame with built-in hanger. Attach pump hoses to mattress, as shown at right (Figure 7): A Models (alternating pressure): •...

  • Page 15: Led Indicators

    LED Indicators Green LED is lit when the pressure is at the set level Yellow LED is lit when pressure is below the set level. Check connections. MAX. MIN. AtmosAir NORMAL PRESSURE LOW PRESSURE POWER ALT. PRESSURE / ROTATION...

  • Page 16: Patient Placement And Nursing Care

    Patient Placement and Nursing Care It is recommended that all sections of this User Guide be read prior to product use. Carefully review the Contraindications, Safety Information and Risks and Precautions sections prior to placing a patient on any AtmosAir MRS. Transfer patient following all applicable safety rules and institution protocols.

  • Page 17: Cpr

    Level bed. Disconnect hoses from pump to level mattress (for A and AR models), as shown at right (Figure 9). Lower or remove side rail on caregiver’s side if necessary. Begin CPR as per facility protocol. Consider use of backboard if indicated. After CPR is performed: •...

  • Page 18: Care And Cleaning

    Care and Cleaning The following processes is recommended, but should be adapted to comply with local institution protocols. If you are uncertain, you should seek advice from your local Infection Control Specialist. The AtmosAir MRS should be routinely decontaminated between patients and at regular intervals while in use.

  • Page 19: Cleaning Atmosair Pump And Tubes (A And Ar Models)

    Wipe and rinse any soiling from the mattress surface and base. Use 1000 ppm chlorine or 70% alcohol. Rinse with a wet towel to remove chemicals. After wipe down, dry surface with towel. Ensure bed linens are refitted and not wrinkled under patient. Clean pump and tubes (if needed) by wiping with a damp cloth.

  • Page 20: Preventive Maintenance Schedule

    Preventive Maintenance Schedule Preventive maintenance for the AtmosAir MRS consists of regular cleaning (see Care and Cleaning) and an overall system check-out to be performed at the intervals described below. All components must be cleaned, disinfected and inspected after each patient’s use and before use by a new patient.

  • Page 21: Troubleshooting

    Troubleshooting Do not attempt troubleshooting outside this guide or where the solution recommends to contact Arjo. Any unauthorized service, modification, alteration or misuse may lead to serious injury and / or product damage and will void all applicable warranties. SYMPTOM...

  • Page 22: Parts Diagram - Atmosair With Sat 4000

    Parts Diagram - AtmosAir with SAT 4000 All hoses were removed to improve diagram readability. The fire barrier is a sleeve that fits over the foam and SAT assemblies. The SAT Cover, SAT Cells, SAT Interliner and rotation bladders (for A and AR models) are all part of the integrated SAT System and cannot be ordered separately.

  • Page 23: Parts Diagram - Atmosair With Sat 9000 And T-Series

    Parts Diagram - AtmosAir with SAT 9000 and T-Series All hoses were removed to improve diagram readability. The fire barrier is a sleeve that fits over the foam and SAT assemblies. The SAT Cover, SAT Cells, SAT Interliner and rotation bladders (for A and AR models) are all part of the integrated SAT System and cannot be ordered separately.

  • Page 24: Parts Diagram - Atmosair With Sat Apod 25 Series

    Parts Diagram - AtmosAir with SAT APod 25 Series All hoses were removed to improve diagram readability. The Fire Barrier is a sleeve that fits over the foam and SAT assemblies. The SAT Cover, SAT Cells, SAT Interliner, SAT Air Pods and rotation bladders (for A and AR models) are all part of the integrated SAT System and cannot be ordered separately.

  • Page 25: Parts Diagram - Atmosair With Sat M-Series And V-Series

    Parts Diagram - AtmosAir with SAT M-Series and V-Series All hoses were removed to improve diagram readability. The fire barrier is a sleeve that fits over the foam and SAT assemblies. The SAT Cover, SAT Cells, SAT Interliner are all part of the integrated SAT System and cannot be ordered separately.

  • Page 26: Parts Diagram - Atmosair Pump

    Parts Diagram - AtmosAir Pump (A and AR models) See Replacement Parts for a complete list of parts that may be ordered for the AtmosAir Pump, as well as entire pump systems.

  • Page 27: Replacement Parts

    / or product damage and will void all applicable warranties. Replaceable AtmosAir components are listed below. For more information such as pricing, additional options, or spare parts that are not on this list, please contact your local Arjo representative. ATMOSAIR MATTRESS COMPONENTS AtmosAir Foam Shells PART TYPE ......................
  • Page 28 ATMOSAIR MATTRESS COVERS AtmosAir Model 4000 Mattress PART TYPE ......................CATALOG NUMBER Complete Cover, Soflux™ Top, Non-Skid Bottom........... A4CSONB (WWWLL)NXS Complete Cover, Soflux Top, Vinyl Gray Bottom ........... A4CSOVG (WWWLL)NXS Complete Cover, Reliant IS ™ Top, Non-Skid Bottom ........A4CRLNB (WWWLL)TXS Complete Cover, Barrier Flex 1 Top, Non-Skid Bottom ........
  • Page 29 Top Cover, Reliant IS , RF Welded ..............AXCRFXX(WWWLL)TXS Top Cover, Premium, RF Welded ..............AXCPRXX(WWWLL)NXS Base Cover, PU Non-skid Bottom, No Handles..........AXCXXPN(WWWLL)XXS Base Cover, PU Non-skid Bottom, With Handles ..........AXCXXPU(WWWLL)XXS AtmosAir Model 9000A Mattress with Alternating Pressure and Rotation PART TYPE ......................CATALOG NUMBER Complete Cover, Reliant IS , RF Welded Top, Non-Skid PU Bottom, No Handles ......................ARCRFPN(WWWLL)TXS...
  • Page 30 Complete Cover, Soflux Top, Non-Skid Bottom ..........DRCSONB(WWWLL)NXS Complete Cover, Soflux Top, Vinyl Gray Bottom ........... DRCSOVG(WWWLL)NXS Complete Cover, Reliant IS Top, Non-Skid Bottom ........DRCRLNB(WWWLL)TXS Complete Cover, Reliant IS Top, Vinyl Gray Bottom ........DRCRLVG(WWWLL)TXS Top Cover, Reliant IS , RF Welded ..............DRCRFXX(WWWLL)TXS Top Cover, Premium, RF Welded ..............DRCPRXX(WWWLL)NXS Base Cover, PU Non-Skid Bottom, No Handles ..........

  • Page 31: Specifications

    Cycle Time ..........................12 minutes * Patient weight capacity may vary depending on frame use. Please consult frame manufacturer. ** Additional sizes are available. Contact Arjo for more information. AtmosAir 4000 and 9000 Series up to 42 in (106.7 cm) with Reliant IS...

  • Page 32: Electromagnetic Compatibility

    Electromagnetic Compatibility This section pertains only to A and AR models. Although this equipment conforms with the intent of the directive 89/336/EEC in relation to electromagnetic compatibility (EMC), all electrical equipment may produce interference. If interference is suspected, move equipment away from sensitive devices or contact the manufacturer.
  • Page 33 Guidance and manufacturer’s declaration - electromagnetic immunity The AtmosAir MRS is intended for use in the electromagnetic environment specified below. The customer or user of the AtmosAir MRS should assure that it is used in such an environment. IEC 60601 Electromagnetic Immunity Test Compliance Level...
  • Page 34 Guidance and manufacturer’s declaration - electromagnetic immunity The AtmosAir MRS is intended for use in an electromagnetic environment specified below. The customer or user of the AtmosAir MRS should assure that it is used in such an environment. Immunity Test IEC 60601 Test Compliance Level Electromagnetic Environment Guidance...

  • Page 35: Symbols Used

    Symbols Used Indicates the product is a Medical IPXO Device according to EU Medical Protection from ingress of fluids Device Regulation 2017/745 Important Operational Information Type BF Applied Part Foot End Possible electrical shock hazard Warning of possible hazard to Attention - See User Guide system, patient or staff Consult User Guide...

  • Page 36: Customer Contact Information

    Note: the symbol is blue on the product label. Customer Contact Information For questions regarding this product, supplies, maintenance or additional information about Arjo products and service, please contact Arjo or an Arjo authorized representative, or visit www.arjo.com.
  • Page 37 Intentionally left blank...
  • Page 38 Intentionally left blank...
  • Page 39 AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Poznań) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
  • Page 40 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise the standard of safe and dignified care.
