Reference Manual
(Hardware)
Digital Input/Output Module

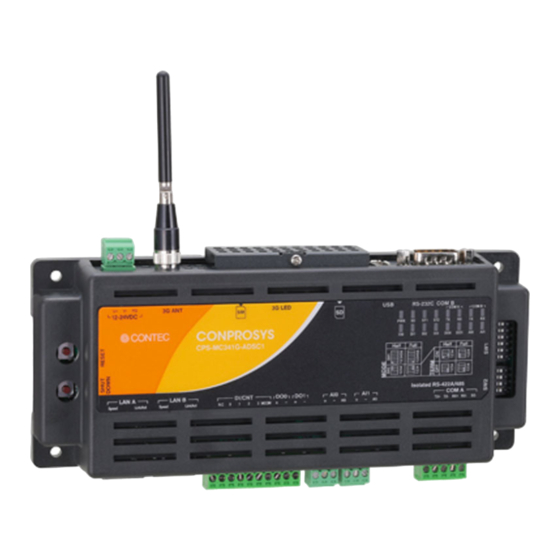

CPS-MC341-DS1-111
CONTENTS
Introduction .................................................................. 4
Safety Precautions .................................................... 12
Product Nomenclature and Function ............... 20
Setup ............................................................................. 32
Installation ................................................................... 38
Appendix ...................................................................... 56
Optional Products .................................................... 65
Customer Support and Inquiry ............................ 67
Index .............................................................................. 69
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Contec CONPROSYS CPS-MC341-DS1-111
Summary of Contents for Contec CONPROSYS CPS-MC341-DS1-111
- Page 1 Reference Manual (Hardware) Digital Input/Output Module CPS-MC341-DS1-111 CONTENTS Introduction ..............4 Safety Precautions ............ 12 Product Nomenclature and Function ....20 Setup ................32 Installation ..............38 Appendix ..............56 Optional Products ............ 65 Customer Support and Inquiry ......67 Index ................
-
Page 2: Table Of Contents
Table of Contents Introduction ............... 4 1. Related Manuals ..............................5 2. Check the Firmware Version ..........................6 3. About the Product ..............................7 4. Interface Within ............................... 8 5. Features ..................................9 1. Hardware features ............................9 2. Software Features ............................10 6. - Page 3 Table of Contents 2. Mounting on/Removing from a DIN Rail .................... 41 3. Mounting on the Wall ..........................43 2. Connecting to an External Device ......................... 44 3. Cable Connection ..............................46 1. Power ................................. 46 2. LAN ..................................47 3.
-
Page 4: Introduction
Introduction This section provides necessary information of the product such as the outline, bundled items and manuals before actual use. — 4 —... -
Page 5: Related Manuals
(Printed matter) package. and describes the precautions. Setup Manual Download from Read this when setting up the This describes the required items for the Contec product. setup and configuration procedure. website (PDF) Reference Manual Download from Read this when operating the... -
Page 6: Check The Firmware Version
Before start using the product, visit our website to check the firmware version and update to the latest one if necessary. Updating firmware to the latest version will resolve troubles and stabilize the operation. https://www.contec.com/download/ Download Refer to the "Reference Manual (Software)" for the details of the firmware updating. -
Page 7: About The Product
— — Introduction CPS-MC341-DS1-111 Reference Manual (Hardware) 3. About the Product This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, and LAN interface. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. You can perform all processes on a web browser from the development to the operation. -
Page 8: Interface Within
— — Introduction CPS-MC341-DS1-111 Reference Manual (Hardware) 4. Interface Within This product is a M2M controller with the following interfaces. SD Card Analog Input Analog Output Digital Input Digital Output Slot ［Current］ ［Current］ Analog Output 3GSIM Analog Input RS-232C Counter RS-422A/485 （Standard SIM）... -
Page 9: Features
— — Introduction CPS-MC341-DS1-111 Reference Manual (Hardware) 5. Features 1. Hardware features Compact design Compact design, 188.0(W) x 78.0(D) x 30.5(H), features flexibility in installation. Adaptable to a temperature range between -20 and +60°C The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments. ... -
Page 10: Software Features
Introduction CPS-MC341-DS1-111 Reference Manual (Hardware) No electrolytic capacitor or primary battery Neither an electrolytic capacitor, which has a limited life, nor a primary battery is used. The Contec is creating the product with a longer life. 2. Software Features ... -
Page 11: Product Configuration List
(Digital) *This product is verified in conformity with our recommended power supply. In case you use other power supplies, thus, it may not be able to fulfil certification requirements. Please see the Contec website regarding power supply recommendation (https://www.contec.com/). — 11 —... -
Page 12: Safety Precautions
Safety Precautions Understand the following definitions and precautions to use the product safely. Never fail to read them before using the product. — 12 —... -
Page 13: Safety Information
— — Safety Precautions CPS-MC341-DS1-111 Reference Manual (Hardware) 1. Safety Information This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely. DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 14: Handling Precautions
— — Safety Precautions CPS-MC341-DS1-111 Reference Manual (Hardware) 2. Handling Precautions DANGER Do not use the product in locations exposed to a flammable or corrosive gas. It may cause explosion, fire, electrical shock, or malfunction. Do not allow the device to come into contact with foreign substances (metal particles, ... - Page 15 When removing connectors or cables, always unplug the power cables and confirm the LEDs are turned off. Do not modify the product. CONTEC will bear no responsibility for any problems, etc., resulting from modifying the product. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the ...
- Page 16 Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever (Including damages for loss of business profits) arising out of the use or inability to use this CONTEC product or the information contained herein.
- Page 17 Lors du dépôt de connecteurs ou de câbles, toujours débrancher les câbles d’alimentation de l’unité centrale et confirmer la mise hors tension des DEL. Ne pas modifier le produit. CONTEC ne pourra être tenue responsable de tout problème, etc., issu de la modification du produit.
- Page 18 Lors d’un fonctionnement du produit sans interruption, s’assurer de lire le manuel du site Web CONTEC et d’assimiler le contenu. Lorsque le produit est utilisé à un endroit influencé par une surintensité ou une surtension ...
-
Page 19: Fcc Part15 Subpart B Class A
— — Safety Precautions CPS-MC341-DS1-111 Reference Manual (Hardware) 1. FCC PART15 Subpart B Class A NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 20: Product Nomenclature And Function
Product Nomenclature and Function This section describes product component names and their functions, pin assignment of each connector. — 20 —... -
Page 21: Nomenclature Of Product Components
— — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) 1. Nomenclature of Product Components Component names of the product are shown in the figure below. 12-24VDC Half Full Half Full LAN A LAN B COM A Name Function Power Connector This is a connector for power. -
Page 22: Description Of Product Components
To check the supplied connector type, refer to “Appendix - Connector Check”. Pin Assignment Pin No. Signal Name V-(GND) V+(12-24VDC) 2. Debug Connector Do not use this. 3. SD Card Slot Insert the SD card to store such as data. *Use the Contec SD card "SD-4GB-A (4GB)". — 22 —... -
Page 23: Led Indicator
— — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) 4. LED Indicator Status of the product is indicated by of LED ON/OFF and flashing. The meaning of each LED is described below. Color and Description Color Display Description Green Power has been supplied. -
Page 24: Dip Switch
— — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) 7. DIP switch DIP switch for system setup and RS-422A/485 setup of COM A. The factory default of all switches are set to “OFF”. R S-232 C C O M B 2 3 4 1 2 3 4 5 6 DIP Switch... -
Page 25: Lan Port
— — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) 8. LAN Port This product has 2 ports of Ethernet LAN Port. As the LAN port of this product is set in HUB mode, it is recognized as one port from OS. Ethernet Hub function in this product is the switching hub. -
Page 26: Digital Output Connecter
— — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) CAUTION HUB mode of this product might be slower than other standard switching HUB products. If a large amount of data or high-speed response is requested, an external switching HUB will ... - Page 27 — — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) Name Function This indicates the output signals of channel 2. It connects the input signals from the other devices. This indicates the output signals of channel 1. It connects the input signals from the other devices.
-
Page 28: Digital Input Connecter
— — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) 10. Digital Input Connecter This product has 8 channels of isolated digital input. Use the 10-pin connector, included in the package, to connect to external power. Connector type: DEGSON 15EDGK-3.5-10P-14-1000AH (or equivalent) *The type of connectors in the package differs depending on the period of manufacturing. -
Page 29: Rs-422A/485 Connector
— — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) 11. RS-422A/485 Connector This product has 1 port (COM A) of RS-422A/485 communication. Use the 5-pin connector included in the package to connect to external power. Connector type: DEGSON 15EDGK-3.5-05P-14-1000AH (or equivalent) *The type of connectors in the package differs depending on the period of manufacturing. -
Page 30: Other Functions
— — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) 3. Other Functions 1. Digital Filter This product can apply a digital filter to every input pin, thereby preventing wrong recognition of input signals from being affected by noise or chattering. ... - Page 31 — — Product Nomenclature and Function CPS-MC341-DS1-111 Reference Manual (Hardware) Digital Filter Setting Time Set the digital filter time to 0 – 20 (00h - 14h). Setting the digital filter time to 0 disables the function of filtering (0 is set as default and upon turning on the power).
-
Page 32: Setup
Setup This section describes how to set switches (and an antenna) that are necessary to operate the product. — 32 —... -
Page 33: Set Data Transfer Mode
— — Setup CPS-MC341-DS1-111 Reference Manual (Hardware) 1. Set Data Transfer Mode With the DIP switch (SW1, SW2), data transfer mode can be changed (half-duplex or full-duplex). Set the data transfer mode in accordance with a device which you are connecting to. 1. - Page 34 — — Setup CPS-MC341-DS1-111 Reference Manual (Hardware) DIP Switch Bit No. ON/OFF Description Enable the TX Terminator Disable the TX Terminator Enable the RX Terminator Disable the RX Terminator Internal connection state of TX+ and RX+: Short (Half Duplex) Internal connection state of TX+ and RX+: Open (Full Duplex) Internal connection state of TX- and RX-: Short (Half Duplex) Internal connection state of TX- and RX-: Open (Full Duplex) System Reservation: Always OFF...
- Page 35 — — Setup CPS-MC341-DS1-111 Reference Manual (Hardware) Terminator(Bit 1) Terminator(Bit 2) This Product External Device Terminator(Bit 2) Terminator(Bit 1) Use the terminator inside Set the terminator outside 2 3 4 1 2 3 4 5 6 2 3 4 1 2 3 4 5 6 DIP Switch Bit No.
-
Page 36: Insert Sd Card
— — Setup CPS-MC341-DS1-111 Reference Manual (Hardware) 2. Insert SD Card Unfasten the screw of the cover. (Card cover is attached to the product upon shipping). Slide the card cover to remove it. With the chipped edge of the SD card is in the position shown below, insert the card all the way into the slot. - Page 37 — — Setup CPS-MC341-DS1-111 Reference Manual (Hardware) Fasten with a screw. *Reverse the procedure described in the "Insert SD card "to remove the card. — 37 —...
-
Page 38: Installation
Installation This section describes how to mount the product on a DIN rail or on the wall, and to connect to an external device with a cable. — 38 —... -
Page 39: Install The Product
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) 1. Install the Product 1. Installation Conditions Installation Orientation Install the product in the orientations shown below (0 °C). Other orientations may cause problems such as malfunctions due to inadequate heat dissipation. DIN rail Mounting Wall Mounting Operating ambient temperature should be between -20 °C and +55 °C when the product is installed... - Page 40 — — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) Ambient Temperature The ambient temperature is decided from the multiple measurement points which are a 50mm- distance from the product. During the operation, adjust the air current to make certain that the temperatures measured in the points stay within the specified temperature.
-
Page 41: Mounting On/Removing From A Din Rail
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) ATTENTION Remarquez que même si la température ambiante se situe dans la plage de température spécifiée, une défaillance opérationnelle peut survenir si un autre appareil à proximité émet beaucoup de chaleur. Le rayonnement influence la hausse de température du produit. N’installez pas le produit dans un espace entièrement scellé... - Page 42 — — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) Push the hooks up to lock the product on the DIN rail. How to Remove Pull down the hooks to unlock. If the hooks are stuck, use a slotted screwdriver to unlock. Fixed hooks (1).
-
Page 43: Mounting On The Wall
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) 3. Mounting on the Wall Appropriate screws (fit into φ3.5 hole) are required to install the product on the wall. The commercial screws can be purchased individually. Get the screws fit into φ3.5 hole and set the product. -
Page 44: Connecting To An External Device
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) 2. Connecting to an External Device Use the supplied connector plug to connect the product to an external device. The following example describes how to make the connecting cable with a 3-pin connector. Connection Cable The supplied connector... - Page 45 — — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) ATTENTION Ne tirez pas sur le câble de la fiche du connecteur pour retirer la fiche, vous risquez de briser le fil. Saisissez toujours le connecteur pour le retirer. Le couple de serrage pour le connecteur fourni est indiqué ci-dessous. ...
-
Page 46: Cable Connection
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) 3. Cable Connection 1. Power Power Cable Use the power cable described below. Cable Twisted pair cable (when using a single wire, twist V+ wire and V- wire) Cable AWG24 - 16(0.2mm - 1.25mm Diameter Cable Length Within 3 meters... -
Page 47: Lan
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) About a caution mark on the product: Please use copper wires that withstand the temperature of 75 °C and higher. ATTENTION Le couple de serrage pour le connecteur fourni est indiqué ci-dessous. ... -
Page 48: Rs-422A/485
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) 3. RS-422A/485 RS-422A/485 Cable Use the RS-422A/485 cable described below. Cable Twisted pair cable with the shield Cable AWG28-16(0.08mm - 1.25mm Diameter Cable Length Affected by the communication speed (baud rate) between the product and the external device. - Page 49 — — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) Baud Rate See the table below for the baud rate that can be set with the product. Error rate differs depending on the set baud rate. Baud Rate (bps) Error (%) 0.00 0.00 0.00 1,200...
- Page 50 — — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) Connecting to an external device Connect the product in accordance with the specification of the external device. RS-422A/485 5-pin connector TX+ TX－ RX+ RX－ SG External device － Full Duplex Full duplex needs three or more sets of twisted-pair. Two sets are for a signal line, other free line(s) is (are) for the signal ground (SG).
- Page 51 — — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) Connecting to an external device Connect the product in accordance with the specification of the external device. RS-422A/485 5-pin connector TX+ TX－ RX+ RX－ SG External device RX+ RX－ TX+ TX－ Notes on the Shield Connection Ground the shield to the frame ground (FG) of the external device.
- Page 52 — — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) ATTENTION Le couple de serrage pour le connecteur fourni est indiqué ci-dessous. DEGSON : 0,19 N·m; PHOENIX CONTACT, PTR MESSTECHNIK : 0,25 N·m Dénudez environ 7 mm (plus ou moins 0,5 mm) de la section gainée du câble pour le ...
-
Page 53: Digital Input
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) 4. Digital Input Digital Input Cable Use the Digital Input cable described below. Cable Use copper wires that withstand the temperature of 75 °C and higher. Cable AWG28 - 16 Diameter Cable Length The length differs depending on the actual use environment. *Refer to "Digital Input Connecter"... -
Page 54: Digital Output
— — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) 5. Digital Output Digital Output Cable Use the Digital Output cable described below. Cable Use copper wires that withstand the temperature of 75 °C and higher. Cable AWG28 - 16 Diameter Cable Length The length differs depending on the actual use environment. Refer to "Digital Output Connecter"... - Page 55 — — Installation CPS-MC341-DS1-111 Reference Manual (Hardware) Example of connecting to the LED The corresponding LED lights up when you output "1" into the appropriate bit. The corresponding LED turns off when you output "0" into the appropriate bit. Output pin (+) External LED 5.1kΩ...
-
Page 56: Appendix
Appendix This section lists the specifications and the physical dimensions of the product, and the details of model name. — 56 —... -
Page 57: Specifications
— — Appendix CPS-MC341-DS1-111 Reference Manual (Hardware) 1. Specifications 1. Specifications Function Specifications Item CPS-MC341-DS1-111 ARM Cortex-A8 600MHz Memory On Board 512MB DDR3 SDRAM On-Board 32MB NOR Flash for OS Transmission standard 10BASE-T/100BASE-TX The number of channels Connector RJ-45 Connector Speed (Yellow), Link/Act (Green) RS-422A/485 Transmission scheme... - Page 58 — — Appendix CPS-MC341-DS1-111 Reference Manual (Hardware) Item CPS-MC341-DS1-111 (HIGH-to-LOW transition) or rising edge (LOW-to-HIGH transition). (setting can be done by software) The number of channels DI0 – DI7 (Yellow) Connector 2-piece 3.5mm pitch 10-pin terminal (MCOM, DI0, DI1, DI2, DI3, DI4, DI5, DI6, DI7, N.C.) Applicable wire AWG28 - 16 Digital output...
- Page 59 — — Appendix CPS-MC341-DS1-111 Reference Manual (Hardware) Installation Environment Requirements Item CPS-MC341-DS1-111 Operating ambient temperature -20 - +60°C Operating ambient humidity 10 - 90%RH (No condensation) Non-operating ambient -20 - +60°C temperature Non-operating ambient humidity 10 - 90%RH (No condensation) Floating dust particles Not to be excessive Corrosive gases...
-
Page 60: Power Requirements
When you restart the power, give the product for at least one second (or longer) of the power OFF time. When you use with the CPS-PWD-15AW12-01 (by CONTEC), instantaneous voltage drop allowed time is 20 milliseconds or less... -
Page 61: Physical Dimensions
— — Appendix CPS-MC341-DS1-111 Reference Manual (Hardware) 2. Physical Dimensions CPS-MC341-DS1-111 12-24VDC H alf Full H alf Full Isolated RS-422A/485 LAN A LAN B COM A (154) 4-φ3.5 [mm] — 61 —... -
Page 62: The Details Of Model Name
— — Appendix CPS-MC341-DS1-111 Reference Manual (Hardware) 3. The Details of Model Name Details of the model name are described below. CPS - MC 3 4 1 - DS1 - 1 1 1 ８ ９ CONPROSYS Series Item Description Model Standard Integrated Type Model ARM Cortex A8 Memory... -
Page 63: Connector Check
— — Appendix CPS-MC341-DS1-111 Reference Manual (Hardware) 4. Connector Check The maker of connectors in the package or embedded in the product differs depending on the period of manufacturing. The maker and types of the connectors can be checked by the color. Maker, Type CAUTION See the table below for maker, type, and tightening torque value of the connectors to check and... - Page 64 — — Appendix CPS-MC341-DS1-111 Reference Manual (Hardware) Vérification du connecteur Selon la période de fabrication, le fabricant des connecteurs de l’emballage ou intégré au produit varie. Il est possible de confirmer le fabricant et les types de connecteur par la couleur. le nom du fabricant et le type ATTENTION Consultez le tableau ci-dessous pour connaître le fabricant, le type de connecteur et le couple de...
-
Page 65: Optional Products
Optional Products This section lists optional items that can be used along with the product. — 65 —... -
Page 66: Optional Products
Product Name Model type Description DIN rail fitting power CPS-PWD-15AW12-01 Fitting power supply 15W supply (Input: 100-240VDC, Output: 12VDC 1.3A) SD Card SD-4GB-A SD card (4GB) Visit the Contec website for the latest optional products. https://www.contec.com/ Website — 66 —... -
Page 67: Customer Support And Inquiry
Customer Support and Inquiry CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably. — 67 —... -
Page 68: Services
— — Customer Support and Inquiry CPS-MC341-DS1-111 Reference Manual (Hardware) 1. Services CONTEC offers the useful information including product manuals that can be downloaded through the CONTEC website. Download https://www.contec.com/download/ You can download updated driver software, firmware, and differential manuals in several languages. -
Page 69: Index
Index — 69 —... - Page 70 — — Index CPS-MC341-DS1-111 Reference Manual (Hardware) Revision History MONTH YEAR Summary of Changes July 2016 The First Edition April 2018 Changed the layout of the manual. September 2018 Additional information was listed due to some parts change. — 70 —...
- Page 71 CONTEC CO., LTD. 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CPS-MC341-DS1-111 Reference Manual (Hardware) NA04457 (LYTE205) 08302019_rev5 [09252015]...
