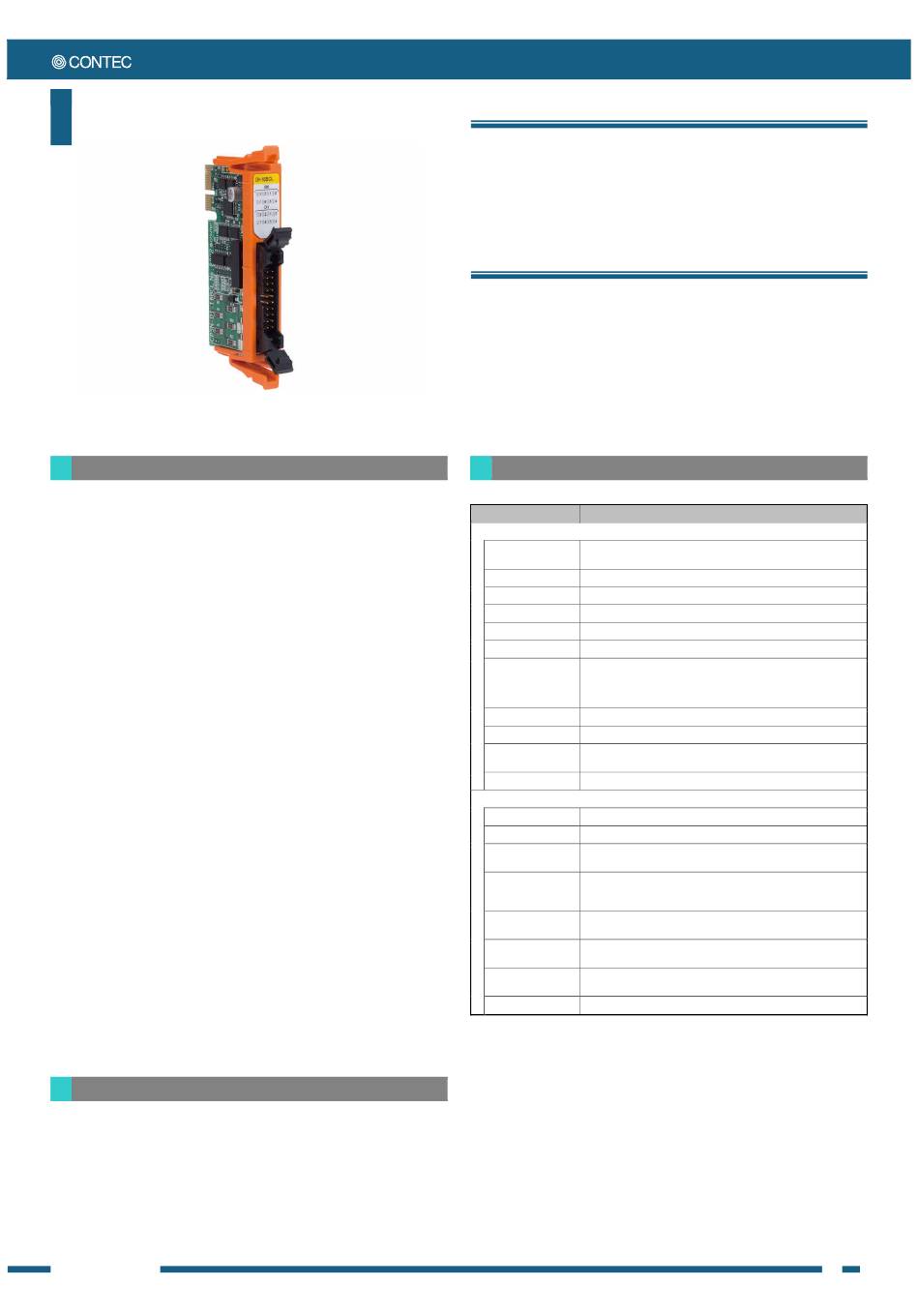

Contec CONPROSYS nano Series Quick Start Manual

CONPROSYS nano Series
Digital Input Module 16ch, Built-in power supply
CPSN-DI-16BCL
* Specifications, color and design of the products are subject to change
without notice.
Features
- Opto-coupler isolated input
The product contains 16 channels of opto-coupler isolated input whose response
speed is 200µsec or less. Also, current sink outputs and current source outputs are
switchable with the switch.
- Internal circuit power supply and external power supply
The switch is equipped to switch between the internal circuit power supply of 12V
and the external circuit power supply of 12-24V.
- All of the input signals are usable as interrupt events
You can use all of the input signals as interrupt events and also disable or enable
the interrupt in bit units and select the interrupt edge.
- Equipped with a digital filter function to prevent false recognition of input
signals due to noise and chattering
This product is equipped with a digital filter that can prevent input signal noise and
chattering. The input digital filter can be applied to all input terminals individually,
and configuration can be performed using the software.
- Input counter function
Digital input and counter input can be switched per channel. The counter values
are automatically saved upon turning off the power.
- Easy installation and removal
This product can be installed in and removed from the CPU unit without any tools.
- Adaptable to a wide range of temperature between -20 and +60°C
The product is capable of operating in the temperature between -20 and + 60°C. It
can be installed in the various environments.
- Equipped with the LED for an operation check
The product has the LED for an operation check, which helps you visually confirm
the communication status of each interface.
Packing List
Product [CPSN-DI-16BCL] ...1
Product Guide & Warranty Certificate ...1
Serial Number Label ... 1
CPSN-DI-16BCL
PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • info@plug-in.de • www.plug-in.de
This product is an expansion I/O module that adds an opto-coupler
isolated input interface with a response speed of 200 μs or less to the
CPU unit of the CONPROSYS nano series.
The product is equipped with 16 inputs and 1 common that support
current sink/source output, and the internal circuit power supply of 12V
and the external circuit power supply of 12-24V can be switched with
the switch.
* The contents in this document are subject to change without notice.
* Visit the CONTEC website to check the latest details in the document.
* The information in the data sheets is as of September, 2021.
Specification
Function Specifications
Item
Input
Input type Opto-coupler isolated input (supports current sink [negative logic] output
*1/current source [positive logic] output *2)
Isolation Opto-coupler Isolation
Voltage Resistance 500VACrms
Input Resistance 8.2kΩ
Input ON current 1.0mA or more
Input OFF current 0.16mA or less
Interrupt 16 interrupt input signals are arranged into a single output of interrupt signal.
An interrupt is generated at the falling edge (HIGH-to-LOW transition)
and the rising edge (LOW-to-HIGH transition) or at both of the edges. (setting
can be done by software)
Software filter (LPF) 1msec – 1000msec *3
Response time Within 200μsec
Number of input signal 16 (shared common)
channels
LED DI00 – DI07 (Green), DI10 – DI17 (Green)
Common
Connector MIL connector 20-pin (2.54mm pitch 10 x 2 lines)
Applicable wire Flat cable with MIL connector
External circuit power 12 - 24VDC (±10%)
supply
12VDC
Internal circuit power
Combined current output of 62 mA allowed as external output current for all
supply
inputs
5V 0.15A (Max.)
Electricity consumption
3.3V 0.10A (Max.)
Allowable distance of
Approx. 50m (depending on wiring environment)
signal extension
Physical dimensions
15.6 (W) x 52.6(D) x 84(H) (not include projection)
(mm)
Weight 50g
*1 Data "0" and "1" correspond to the High and Low levels, respectively.
*2 Data "0" and "1" correspond to the Low and High levels, respectively.
*3 To meet the specified CE EMC Directive, set the digital filter one meter or longer.
Ver.1.02
Description
1
