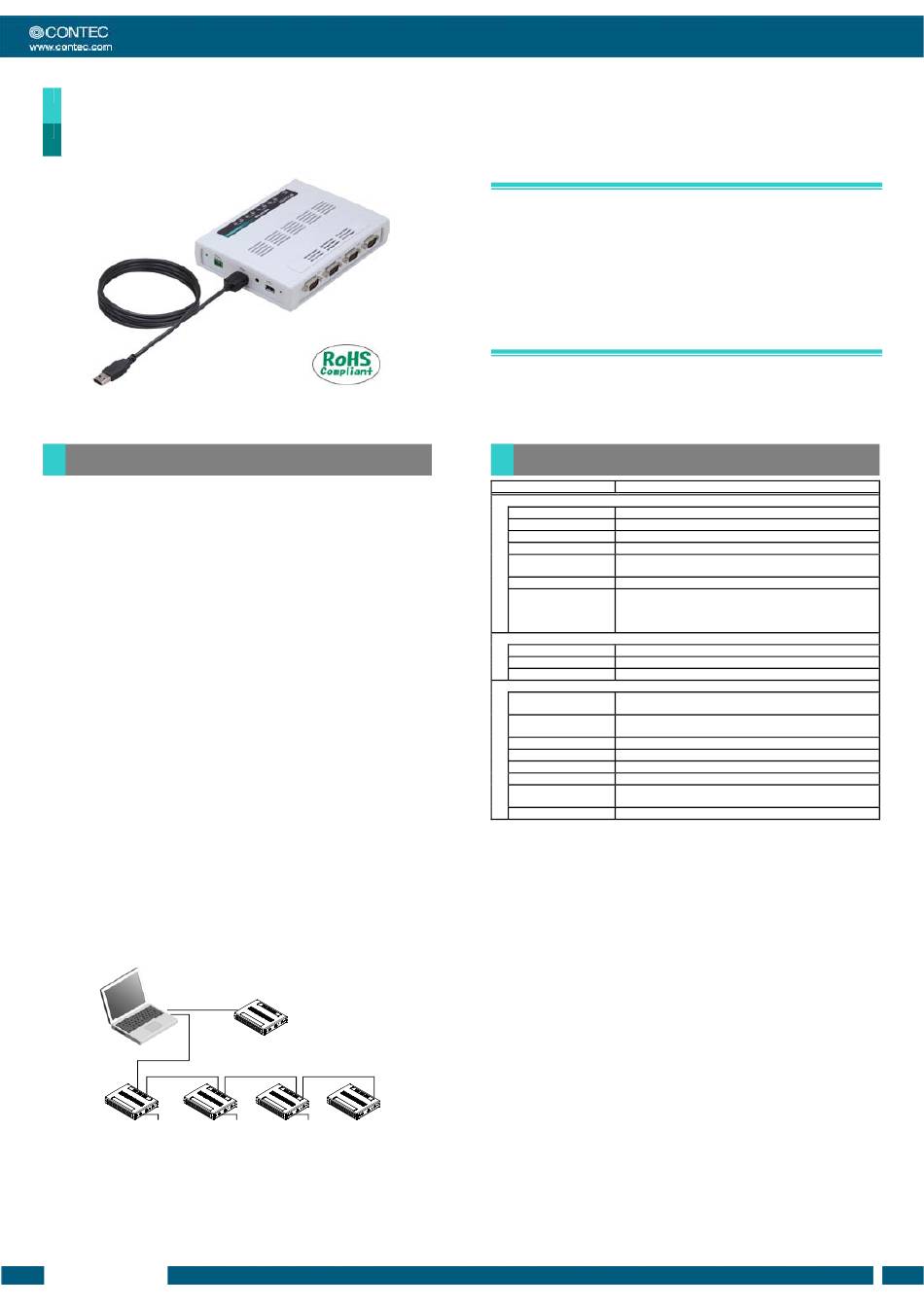

Contec COM-4CX-USB Manual

RS-232C 4 port
Serial I/O Unit for USB
COM-4CX-USB
* Specifications, color and design of the products are subject to
change without notice.
Features
Max. 921,600bps RS-232C Serial Communication)
This product has 4 port RS-232C-standard COM ports. Baud
rates from 300 to 921,600bps can be set for each port. When
data is transferred at the high speed, it may not be transferred
normally, depending on the use environment such as the
external device and cable length used.
Possibly used as Windows-standard COM ports, using the
bundled driver library
Comes with a driver software that allows the boards to be used
under Windows in the same way as COM ports on the PC.
It supports to use under Windows-standard Win32 API
communication function, Visual Basic MSComm or .NET
Framework 2.0 SerialPoart class.
Each channel is equipped with separate 128-byte /
384-byte FIFO buffers for transmit and receive.
These are FIFO format, useful for high speed communications
and to reduce the load to the CPU when transmitting/receiving.
Compatible to USB1.1/USB2.0
Compatible to USB1.1/USB2.0 and capable to achieve high
speed transfer at Full Speed (12 Mbps).
USB HUB function
This product has the USB HUB function. Max. 4
COM-4CX-USB can be used in 1 USB port of PC. *1 When you
use 4 or more COM-4CX-USB, you can do by connecting
COM-4CX-USB to the another USB port of PC side. *2 Also,
you can connect the CONTEC's USB device other than
COM-4CX-USB to the USB port of COM-4CX-USB. *3*4
USB cable
USB cable
AC adapter AC adapter
(option) (option)
*1 This product cannot be stacked up for installation.
*2 When you use the USB port included on the COM-4CX-USB, use 5VDC power supply for
self-power. For more details on the connection with 5VDC power supply, refer to chapter2
- step3, "Connection with 5VDC Power Supply for Self-power".
*3 Do not connect the device other than that of CONTEC's USB to the USB port included on
the COM-4CX-USB. Otherwise, this may cause a failure or malfunction.
*4 When connecting multiple units with USB HUB function and set up them, do one at a time
and complete setup for the previous unit before starting to do the next unit.
COM-4CX-USB
USB cable USB cable
AC adapter
(option)
This product is an USB2.0-compliant unit designed for
extending RS-232C compatible serial communication
functionality on your PC.
This product supports a baud rate of up to 921,600bps and has
separate 128-byte / 384-byte buffer memory for transmit and
receive.
It also comes with a Windows driver, which allows products to
be used as OS-standard COM ports.
Specification
Item
I/O
Number of port s 4 port
Interface type RS-232C
Transfer method Asynchronous serial transfer
Baud rate 300 - 921,600bps *1 *2 *7
Data length 7, 8 bits
1, 2 stop bits *1
Parity check Even, Odd, Non-parity *1
Controller chip XR21V1414 or equivalent
(Mounting the FIFO memory as the common buffer of
RS-232C communication and USB. Each channel has
384-byte receive and 128-byte transmit FIFO buffers.)
USB section
Bus specification USB Specification 2.0/1.1 standard
USB transfer rate 12Mbps (Full-speed) *3
Power supply Either self-power or bus-power can be used. *4
Common section
Number of terminals 63 terminals (Max.) *5
used at the same time
Current consumption
(Max.) 5VDC 200mA
Operating temperature *6 0 - 50°C, 10 - 90%RH(No condensation)
Connecting distance 15m (Typ.)
Dimension (mm) 180(W) x 140(D) x 34(H) (No protrusions)
Weight 300g (Not including the USB cable, attachment)
Connector 9-pin D-SUB connector, DELC-J9PAF-20L9 [mfd. by JAE,
M(male) type] equivalent
Attached cable USB cable 1.8m
*1 These items can be set by software.
For the "Standard COM Driver Software COM Setup Disk" on the supplied CD-ROM, the
range is 300 - 921,600 bps.
*2 Data transmission at high speed may not be performed normally depending on the
environment including the type of status of connected material of cable and environment.
*3 This depends on the PC environment used (OS and USB host controller).
*4 If using a bus-power hub, use self-power for the COM-4CX-USB.
*5 As a USB hub is also counted as one device, you cannot just connect 63 USB unit.
*6 To suppress the heating, ensure that there are spaces for ventilation (about 5cm) around
this product.
*7 It becomes 230,400bps or less when using it for three or above simultaneous ports.
Ver.1.01
