Reference Manual
(Hardware)
Analog Input/Output Module
CPS-MC341-A1-111
CONTENTS
Introduction .................................................................. 4
Safety Precautions .................................................... 12
Product Nomenclature and Function ............... 20
Setup ............................................................................. 28
Installation ................................................................... 31
Appendix ...................................................................... 47
Optional Products .................................................... 56
Customer Support and Inquiry ............................ 58
Index .............................................................................. 60
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Contec CONPROSYS CPS-MC341-A1-111
Summary of Contents for Contec CONPROSYS CPS-MC341-A1-111
- Page 1 Reference Manual (Hardware) Analog Input/Output Module CPS-MC341-A1-111 CONTENTS Introduction ..............4 Safety Precautions ............ 12 Product Nomenclature and Function ....20 Setup ................28 Installation ..............31 Appendix ..............47 Optional Products ............ 56 Customer Support and Inquiry ......58 Index ................
-
Page 2: Table Of Contents
Table of Contents Introduction ............... 4 1. Related Manuals ..............................5 2. Check the Firmware Version ..........................6 3. About the Product ..............................7 4. Interface Within ............................... 8 5. Features ..................................9 1. Hardware features ............................9 2. Software Features ............................10 6. - Page 3 Table of Contents 2. LAN ..................................40 3. Analog Input ..............................41 4. Analog Output ............................... 44 Appendix ................47 1. Specifications ................................ 48 1. Specifications ..............................48 2. Power Requirements ............................ 51 2. Physical Dimensions ............................52 1. Product ................................52 3.
-
Page 4: Introduction
Introduction This section provides necessary information of the product such as the outline, bundled items and manuals before actual use. — 4 —... -
Page 5: Related Manuals
(Printed matter) package. and describes the precautions. Setup Manual Download from Read this when setting up the This describes the required items for the Contec product. setup and configuration procedure. website (PDF) Reference Manual Download from Read this when operating the... -
Page 6: Check The Firmware Version
Before start using the product, visit our website to check the firmware version and update to the latest one if necessary. Updating firmware to the latest version will resolve troubles and stabilize the operation. https://www.contec.com/download/ Download *Refer to the "Reference Manual (Software)" for the details of the firmware updating. -
Page 7: About The Product

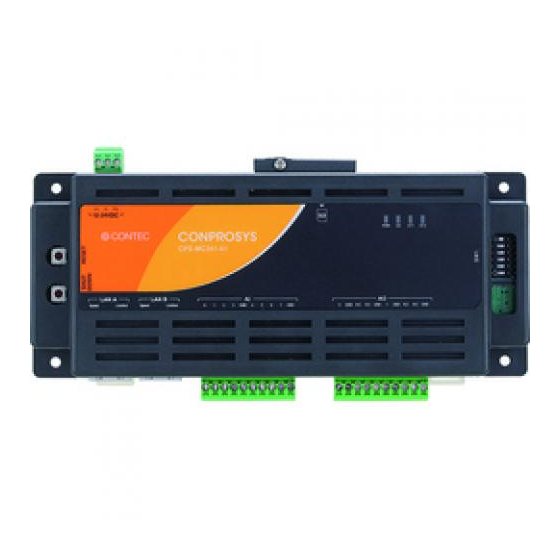

— — Introduction CPS-MC341-A1-111 Reference Manual (Hardware) 3. About the Product This product is a M2M controller with analog input and output. It contains high precision 8 channels of analog input and 2 channels of output with 16-bit solution each. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. -
Page 8: Interface Within
— — Introduction CPS-MC341-A1-111 Reference Manual (Hardware) 4. Interface Within This product is a M2M controller with the following interfaces. SD Card Analog Input Analog Output Digital Input Digital Output Slot ［Current］ ［Current］ Analog Output 3GSIM Analog Input Counter RS-422A/485 RS-232C （Standard SIM）... -
Page 9: Features
— — Introduction CPS-MC341-A1-111 Reference Manual (Hardware) 5. Features 1. Hardware features Bus isolated high precision 8 channels of analog input and 2 channels of output within Supplied with analog input (16-bit, 8 channels), and analog output (16-bit, 2 channels). ... -
Page 10: Software Features
Introduction CPS-MC341-A1-111 Reference Manual (Hardware) No electrolytic capacitor or primary battery Neither an electrolytic capacitor, which has a limited life, nor a primary battery is used. The Contec is creating the product with a longer life. 2. Software Features ... -
Page 11: Product Configuration List
(Analog) *This product is verified in conformity with our recommended power supply. In case you use other power supplies, thus, it may not be able to fulfil certification requirements. Please see the Contec website regarding power supply recommendation (https://www.contec.com/). — 11 —... -
Page 12: Safety Precautions
Safety Precautions Understand the following definitions and precautions to use the product safely. Never fail to read them before using the product. — 12 —... -
Page 13: Safety Information
— — Safety Precautions CPS-MC341-A1-111 Reference Manual (Hardware) 1. Safety Information This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely. DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 14: Handling Precautions
— — Safety Precautions CPS-MC341-A1-111 Reference Manual (Hardware) 2. Handling Precautions DANGER Do not use the product in locations exposed to a flammable or corrosive gas. It may cause explosion, fire, electrical shock, or malfunction. Do not allow the device to come into contact with foreign substances (metal particles, ... - Page 15 When removing connectors or cables, always unplug the power cables and confirm the LEDs are turned off. Do not modify the product. CONTEC will bear no responsibility for any problems, etc., resulting from modifying the product. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the ...
- Page 16 Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever (Including damages for loss of business profits) arising out of the use or inability to use this CONTEC product or the information contained herein.
- Page 17 Lors du dépôt de connecteurs ou de câbles, toujours débrancher les câbles d’alimentation de l’unité centrale et confirmer la mise hors tension des DEL. Ne pas modifier le produit. CONTEC ne pourra être tenue responsable de tout problème, etc., issu de la modification du produit.
- Page 18 Lors d’un fonctionnement du produit sans interruption, s’assurer de lire le manuel du site Web CONTEC et d’assimiler le contenu. Lorsque le produit est utilisé à un endroit influencé par une surintensité ou une surtension ...
-
Page 19: Fcc Part15 Subpart B Class A Notice
— — Safety Precautions CPS-MC341-A1-111 Reference Manual (Hardware) 1. FCC PART15 Subpart B Class A Notice NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 20: Product Nomenclature And Function
Product Nomenclature and Function This section describes product component names and their functions, pin assignment of each connector. — 20 —... -
Page 21: Nomenclature Of Product Components
— — Product Nomenclature and Function CPS-MC341-A1-111 Reference Manual (Hardware) 1. Nomenclature of Product Components Component names of the product are shown in the figure below. 12-24VDC LAN A LAN B Name Function Power Connector This is a connector for power. Use the 3-pin connector included in the package. -
Page 22: Description Of Product Components
To check the supplied connector type, refer to “Appendix - Connector Check”. Pin Assignment Pin No. Signal Name V-(GND) V+(12-24VDC) 2. Debug Connector Do not use this. 3. SD Card Slot Insert the SD card to store such as data. *Use the Contec SD card "SD-4GB-A (4GB)". — 22 —... -
Page 23: Led Indicator
— — Product Nomenclature and Function CPS-MC341-A1-111 Reference Manual (Hardware) 4. LED Indicator Status of the product is indicated by ON/OFF and flashing of LED. The meaning of each LED is described below. Color and Description Color Display Description Green Power has been supplied. -
Page 24: Dip Switch
— — Product Nomenclature and Function CPS-MC341-A1-111 Reference Manual (Hardware) 7. DIP Switch DIP switch for system setup. The factory default of all switches are set to “OFF”. 1 2 3 4 5 6 DIP Switch Bit No. ON/OFF Description System Reservation: Always OFF System Reservation: Always OFF System Reservation: Always OFF... - Page 25 — — Product Nomenclature and Function CPS-MC341-A1-111 Reference Manual (Hardware) Pin Assignment Pin No. Signal Name Description Transmission data (+) Output Transmission data (-) Output Reception data (+) Input N.C. This pin is left unconnected. N.C. This pin is left unconnected. Reception data (-) Input N.C.
-
Page 26: Analog Input Connecter
— — Product Nomenclature and Function CPS-MC341-A1-111 Reference Manual (Hardware) 9. Analog Input Connecter This product has 8 channels of analog input. Use the 10-pin connector, included in the package, to connect to external power. Connector type: DEGSON 15EDGK-3.5-10P-14-1000AH (or equivalent) *The type of connectors in the package differs depending on the period of manufacturing. -
Page 27: Analog Output Connecter
— — Product Nomenclature and Function CPS-MC341-A1-111 Reference Manual (Hardware) 10. Analog Output Connecter This product has 2 channels of analog output. Use the 10-pin connector, included in the package, to connect to external power. Connector type: DEGSON 15EDGK-3.5-10P-14-1000AH (or equivalent) *The type of connectors in the package differs depending on the period of manufacturing. -
Page 28: Setup
Setup This section describes how to set switches and an antenna that are necessary to operate the product. — 28 —... -
Page 29: Insert Sd Card
— — Setup CPS-MC341-A1-111 Reference Manual (Hardware) 1. Insert SD Card Unfasten the screw of the cover. (Card cover is attached to the product upon shipping). Slide the card cover to remove it. With the chipped edge of the SD card is in the position shown below, insert the card all the way into the slot. - Page 30 — — Setup CPS-MC341-A1-111 Reference Manual (Hardware) Insert the catch of the card cover into the opening shown in the figure below. Catch Fasten with a screw. *Reverse the procedure described in the "Insert SD card "to remove the card. —...
-
Page 31: Installation
Installation This section describes how to mount the product on a DIN rail or on the wall, and to connect to an external device with a cable. — 31 —... -
Page 32: Install The Product
— — Installation CPS-MC341-A1-111 Reference Manual (Hardware) 1. Install the Product 1. Installation Conditions Installation Orientation Install the product in the orientations shown below (0 °C). Other orientations may cause problems such as malfunctions due to inadequate heat dissipation. DIN rail Mounting Wall Mounting Operating ambient temperature should be between -20 °C and +55 °C when the product is installed... - Page 33 — — Installation CPS-MC341-A1-111 Reference Manual (Hardware) Ambient Temperature The ambient temperature is decided from the multiple measurement points which are a 50mm- distance from the product. During the operation, adjust the air current to make certain that the temperatures measured in the points stay within the specified temperature.
-
Page 34: Mounting On/Removing From A Din Rail
— — Installation CPS-MC341-A1-111 Reference Manual (Hardware) ATTENTION Remarquez que même si la température ambiante se situe dans la plage de température spécifiée, une défaillance opérationnelle peut survenir si un autre appareil à proximité émet beaucoup de chaleur. Le rayonnement influence la hausse de température du produit. N’installez pas le produit dans un espace entièrement scellé... - Page 35 — — Installation CPS-MC341-A1-111 Reference Manual (Hardware) Push the hooks up to lock the product on the DIN rail. How to Remove Pull down the hooks to unlock. If the hooks are stuck, use a slotted screwdriver to unlock. Fixed hooks (1).
-
Page 36: Mounting On The Wall
— — Installation CPS-MC341-A1-111 Reference Manual (Hardware) 3. Mounting on the Wall Appropriate screws (fit into φ3.5 hole) are required to install the product on the wall. The commercial screws can be purchased individually. Get the screws fit into φ3.5 hole and set the product. -
Page 37: Connecting To An External Device
— — Installation CPS-MC341-A1-111 Reference Manual (Hardware) 2. Connecting to an External Device Use the supplied connector plug to connect the product to an external device. The following example describes how to make the connecting cable with a 3-pin connector. Connection Cable The supplied connector... - Page 38 — — Installation CPS-MC341-A1-111 Reference Manual (Hardware) ATTENTION Ne tirez pas sur le câble de la fiche du connecteur pour retirer la fiche, vous risquez de briser le fil. Saisissez toujours le connecteur pour le retirer. Le couple de serrage pour le connecteur fourni est indiqué ci-dessous. ...
-
Page 39: Cable Connection
— — Installation CPS-MC341-A1-111 Reference Manual (Hardware) 3. Cable Connection 1. Power Power Cable Use the power cable described below. Cable Twisted pair cable (when using a single wire, twist V+ wire and V- wire) Cable Diameter AWG24 - 16(0.2mm - 1.25mm Cable Length Within 3 meters... -
Page 40: Lan
— — Installation CPS-MC341-A1-111 Reference Manual (Hardware) ATTENTION Ne tirez pas sur le câble de la fiche du connecteur pour retirer la fiche, vous risquez de briser le fil. Saisissez toujours le connecteur pour le retirer. Le couple de serrage pour le connecteur fourni est indiqué ci-dessous. ... -
Page 41: Analog Input
— — Installation CPS-MC341-A1-111 Reference Manual (Hardware) 3. Analog Input Analog Input Cable Use the analog input cable described below. Cable Use copper wires that withstand a temperature of 75 °C or higher. Cable Diameter AWG28-16 Cable Length Within 3 meters *Refer to "Analog Input Connecter"... - Page 42 — — Installation CPS-MC341-A1-111 Reference Manual (Hardware) Connection using a coaxial cable The example below uses a coaxial cable to connect the Controller to an external device. Use this type of cable if the distance between the signal source and the product is long. For each analog input channel, connect the core wire to the signal line and connect the shielding to ground.
- Page 43 — — Installation CPS-MC341-A1-111 Reference Manual (Hardware) with a high-speed amplifier can be placed between the product and the signal source in order to reduce the fluctuation. About a caution mark on the product: Please use copper wires that withstand the ...
-
Page 44: Analog Output
— — Installation CPS-MC341-A1-111 Reference Manual (Hardware) 4. Analog Output Analog Output Cable Use the analog output cable described below. Cable Use copper wires that withstand a temperature of 75 °C or higher. Cable Diameter AWG28-16 Cable Length The recommended cable length for voltage output is within 3 meters, and for current output is within 20 meters. - Page 45 — — Installation CPS-MC341-A1-111 Reference Manual (Hardware) Connection using a shielded cable Use shielded cable if the distance between the signal source and the product is long or if you want to provide better protection from noise. For analog output channel of the product and for ground, connect the core wire to the signal lines and ground of the external device respectively.
- Page 46 — — Installation CPS-MC341-A1-111 Reference Manual (Hardware) Pour le signal de sortie analogique, la capacité actuelle est de ± 1 mA (max.). Vérifiez les spécifications de l'appareil connecté avant de connecter le produit. Ne court-circuitez pas une sortie analogique et une mise à la terre analogique ou numérique, ...
-
Page 47: Appendix
Appendix This section lists the specifications and the physical dimensions of the product, and the details of model name. — 47 —... -
Page 48: Specifications
— — Appendix CPS-MC341-A1-111 Reference Manual (Hardware) 1. Specifications 1. Specifications Function Specifications Item CPS-MC341-A1-111 ARM Cortex-A8 600MHz Memory On Board 512MB DDR3 SDRAM On-Board 32MB NOR Flash for OS Transmission standard 10BASE-T/100BASE-TX The number of channels Connector RJ-45 Connector Speed (Yellow), Link/Act (Green) SD card slot Standard... - Page 49 — — Appendix CPS-MC341-A1-111 Reference Manual (Hardware) Item CPS-MC341-A1-111 Voltage Resistance 500VDC Connector 2- piece 3.5mm pitch 10-pin Terminal Applicable wire AWG28 - 16 Power (Green)/Status 1 (Green)/Status 2 (Red) Switch Reset SW, Shutdown SW RTC built-in (battery not equipped) Power supply *5 Rated input voltage 12 - 24VDC...
- Page 50 — — Appendix CPS-MC341-A1-111 Reference Manual (Hardware) Installation Environment Requirements Item CPS-MC341-A1-111 Operating ambient temperature -20 - +60°C Operating ambient humidity 10 - 90%RH (No condensation) Non-operating ambient temperature -20 - +60°C Non-operating ambient humidity 10 - 90%RH (No condensation) Floating dust particles Not to be excessive Corrosive gases...
-
Page 51: Power Requirements
Quand vous remettez le courant, laissez le produit hors tension pendant au moins une seconde (ou plus) du délai hors tension. Lorsque vous utilisez le produit avec CPS-PWD-15AW12-01 (de CONTEC), le délai permis de chute instantanée de tension sera de 20 millisecondes ou moins. -
Page 52: Physical Dimensions
— — Appendix CPS-MC341-A1-111 Reference Manual (Hardware) 2. Physical Dimensions 1. Product 12-24VDC LAN A LAN B (154) 4-φ3.5 [mm] — 52 —... -
Page 53: The Details Of Model Name
— — Appendix CPS-MC341-A1-111 Reference Manual (Hardware) 3. The Details of Model Name Details of the model name are described below. CPS - MC 3 4 1 - A 1 - 1 1 1 ８ ９ CONPROSYS Series Item Description Model Standard Integrated Type Model ARM Cortex A8... -
Page 54: Connector Check
— — Appendix CPS-MC341-A1-111 Reference Manual (Hardware) 4. Connector Check The maker of connectors in the package or embedded in the product differs depending on the period of manufacturing. The maker and types of the connectors can be checked by the color. Maker, Type CAUTION See the table below for maker, type, and tightening torque value of the connectors to check and... - Page 55 — — Appendix CPS-MC341-A1-111 Reference Manual (Hardware) Vérification du connecteur Selon la période de fabrication, le fabricant des connecteurs de l’emballage ou intégré au produit varie. Il est possible de confirmer le fabricant et les types de connecteur par la couleur. le nom du fabricant et le type ATTENTION Consultez le tableau ci-dessous pour connaître le fabricant, le type de connecteur et le couple de...
-
Page 56: Optional Products
Optional Products This section lists optional items that can be used along with the product. — 56 —... -
Page 57: Optional Products
DIN rail fitting power CPS-PWD-15AW12-01 Fitting power supply 15W supply (Input: 100-240VDC, Output: 12VDC 1.3A) SD Card SD-4GB-A SD card 4GB Magnet CPS-MAG01-4 Magnet (Four Piece Set) Visit the Contec website for the latest optional products. https://www.contec.com/ Website — 57 —... -
Page 58: Customer Support And Inquiry
Customer Support and Inquiry CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably. — 58 —... -
Page 59: Services
— — Customer Support and Inquiry CPS-MC341-A1-111 Reference Manual (Hardware) 1. Services CONTEC offers the useful information including product manuals that can be downloaded through the CONTEC website. Download https://www.contec.com/download/ You can download updated driver software, firmware, and differential manuals in several languages. -
Page 60: Index
Index — 60 —... - Page 61 — — Index CPS-MC341-A1-111 Reference Manual (Hardware) Revision History MONTH YEAR Summary of Changes November 2015 The First Edition April 2018 Changed the layout of the manual. — 61 —...
- Page 62 CONTEC CO., LTD. 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CPS-MC341-A1-111 Reference Manual (Hardware) NA04568 (LYTJ157) 01242020_rev7 [11092015]...
