LtAP
LtAP

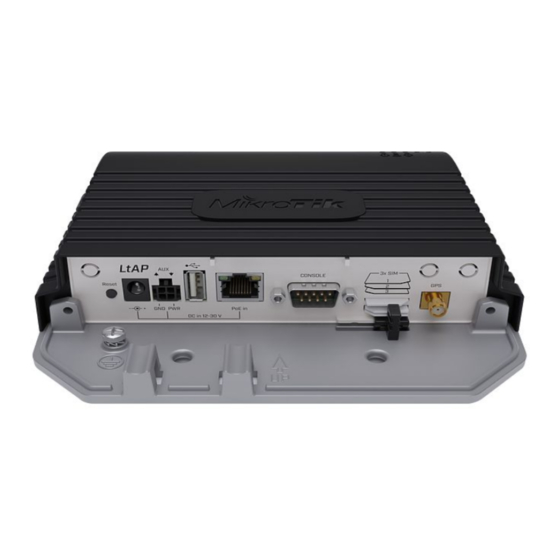

The LtAP is a wireless access point with three SIM card slots for cellular data modems.
Quickstart
Please follow these quick steps to set up your device:
Unscrew two screws and remove doors to access all ports. Please see the
Connect your Internet cable to the Ethernet port (this is optional if using LTE as the primary connection).
Install your modem see
Insert the SIM card into the slot (optional) (see
Connect GPS antenna (optional).
Mount unit in your desired place, please see
Choose your powering solution, please see the
Set your computer IP configuration to automatic (DHCP).
From your PC or smartphone, connect to the wireless network name which starts with "MikroTik".
Once connected to the wireless network, open
default, you will be logged in automatically.
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best
performance and stability.
Choose your country, to apply country regulation settings, and set up your password on the screen that loads.
Extension slots and ports
Built-in 2 GHz wireless access point module, AP/station/bridge/p2p modes are supported. Onboard PIF antennas built-in, as well as MMCX
connectors for external antennas (software selectable).
Two miniPCIe slots and three SIM slots.
Built-in GPS module with an external SMA connector. Supports - GPS, GLONASS, BeiDou, Galileo).
Gigabit Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or crossover cable can be used for
connecting to other network devices. The Ethernet port accepts 12-30 V DC powering from a passive PoE injector.
One DB9 RS232 serial port for serial console access. Configured as 115200 bit/s, 8 data bits, 1 stop bit, no parity.
One USB 2.0 port for storage devices or cellular modems.
miniPCIe
slot usage (optional).
SIM card
Mounting
Powering
https://192.168.88.1
Mounting
).
paragraph.
section for possibilities.
in your web browser to start configuration, since there is no password by
section.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LtAP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MikroTik LtAP

Summary of Contents for MikroTik LtAP

  • Page 1 LtAP LtAP The LtAP is a wireless access point with three SIM card slots for cellular data modems. Quickstart Please follow these quick steps to set up your device: Unscrew two screws and remove doors to access all ports. Please see the ...
  • Page 2 Mounting It is possible to attach the device to a wall, using the provided four screws and designed four holes on the unit. The ports are protected with a small door, that is held in place with two screws. Remove to access Ethernet ports, antenna connector, SIM slots, etc.

  • Page 3: Minipcie Slot

    Setting antenna to external - /system gps set gps-antenna-select=external; Checking configuration - /system gps print. Configuration information - https://wiki.mikrotik.com/wiki/Manual:System/GPS#Basic_examples Powering Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 12-30 V DC with provided 24 V, 1.2 A adapter.

  • Page 4: Reset Button

    This LtAP version is without a modem installed. In this case, an internal antenna is not connected. Installing a miniPCIe module should be done by a qualified person, please follow safety precautions when handling electrical equipment, the device supports two LR cards: Use a wrist grounding strap when unpacking and working with electrical components to avoid electrical discharge (ESD) damage;...

  • Page 5: Specifications

    MikroTik mobile app Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point. Scan QR code and choose your preferred OS. Install and open application.

  • Page 6: Industry Canada

    BG С настоящото Mikrotīkls SIA декларира, че този тип радиосъоръжение RouterBOARD е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: https://mikrotik.com/products CS Tímto Mikrotīkls SIA prohlašuje, že typ rádiového zařízení RouterBOARD je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě...
  • Page 7 DE Hiermit erklärt Mikrotīkls SIA , dass der Funkanlagentyp RouterBOARD der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU- Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: https://mikrotik.com/products EL Με την παρούσα ο/η Mikrotīkls SIA , δηλώνει ότι ο ραδιοεξοπλισμός RouterBOARD πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης...
  • Page 8 * It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed! According to Commission Decision 2000/299/EC (6 April 2000), the product falls under the scope of Class 2.
  • Page 9 BG. Инструкция: Свържете адаптера на захранване, за да включите устройството. Отворете 192.168.88.1 в уеб браузър, за да настроите продукта. Повече информация в {_}{+}https://mt.lv/help-bg+_ CS. Návod k použití: Připojte napájecí adaptér k zapnutí přístroje. Otevřete 192.168.88.1 ve webovém prohlížeči pro konfiguraci produktu. Více informací najdete v {_}{+}https://mt.lv/help-cs+_ DA.
