LDF 5-series
LDF 5, LDF 5 ac
The LDF (Lite dish feed) is an outdoor wireless system with a built-in antenna, meant to be installed on satellite offset dish antennas.
Assembly
The device is compatible with standard offset dishes, commonly used for satellite television. The offset mount is universal at 40 mm diameter, and the LDF
can easily be placed inside it. To attach the Ethernet cable to the LDF unit, follow these steps:

1.

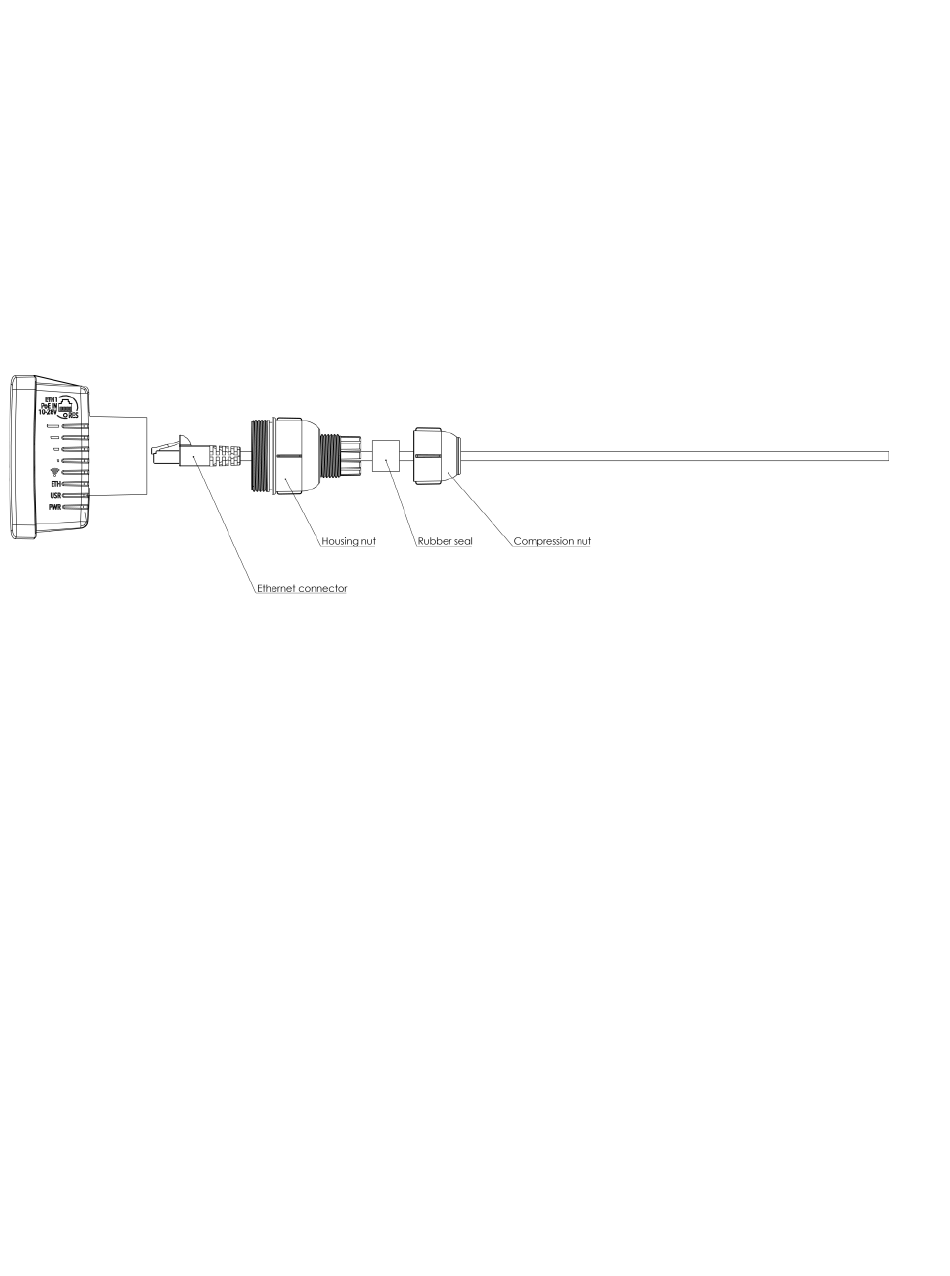

Assemble all components as shown in the illustration. If using pre-made cables, cut the rubber seal on one side, to put it onto the cable. Self
crimped cables should be crimped after the seal is on the cable;
2.
Connect Ethernet cable to Ethernet connector on LDF;
3.
Attach Housing nut to LDF body by rotating clockwise;
4.
Slide rubber seal into housing nut, then seal the waterproof gland by turning compression nut clockwise.
Assembling on dish

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDF 5 and is the answer not in the manual?

Questions and answers

Related Manuals for MikroTik LDF 5

Summary of Contents for MikroTik LDF 5

  • Page 1 LDF 5-series LDF 5, LDF 5 ac The LDF (Lite dish feed) is an outdoor wireless system with a built-in antenna, meant to be installed on satellite offset dish antennas. Assembly The device is compatible with standard offset dishes, commonly used for satellite television. The offset mount is universal at 40 mm diameter, and the LDF can easily be placed inside it.
  • Page 2 A PoE injector is included in the package. Maximum power consumption: LDF 5, 6 W; LDF 5 ac, 8 W. Connecting to a PoE Adapter: Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter;...

  • Page 3: Specifications

                LDF 5, 5 GHz, 802.11a/n;             LDF 5 ac, 5 GHz, 802.11a/n/ac. One Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use either straight or cross-over cables for connecting to other network devices.

  • Page 4: Operating System Support

    MikroTik mobile app Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point: Scan QR code and choose your preferred OS; Install and open application;...

  • Page 5: Industry Canada

    This module is limited to installations in mobile or fixed applications. OEM integrators may utilize antennas of like an equal or lesser gain as appearing in the list in this document (reference 47 CFR, paragraph 15.204(c)(4) for further information on this topic. The MikroTik OEM RF Module complies with Part 15 of the FCC rules and regulations.

  • Page 6: Ce Declaration Of Conformity

    BG С настоящото Mikrotīkls SIA декларира, че този тип радиосъоръжение RouterBOARD е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: https://mikrotik.com/products CS Tímto Mikrotīkls SIA prohlašuje, že typ rádiového zařízení RouterBOARD je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě...

  • Page 7: Mpe Statement

    IS Hér með lýsir Mikrotīkls SIA yfir því að RouterBOARD er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: https://mikrotik.com/products LT Aš, Mikrotīkls SIA , patvirtinu, kad radijo įrenginių tipas RouterBOARD atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu:...
  • Page 8 Frequency bands terms of use Frequency range (for applicable models) Channels used Maximum Output Power (EIRP) Restriction 2412-2472 MHz 1 - 13 20 dBm Without any restriction to use in all EU Member States 5150-5250 MHz 26 - 48 23 dBm Restricted to indoor use only* 5250-5350 MHz 52 - 64...
  • Page 9 * It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed! Note. Information contained here is subject to change. Please visit the product page on www.mikrotik.com...
