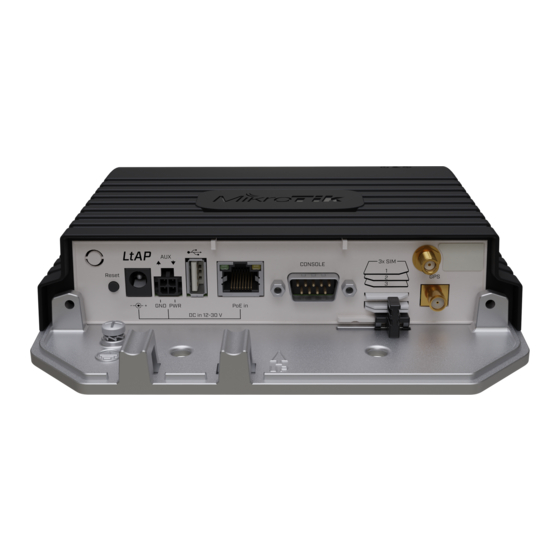

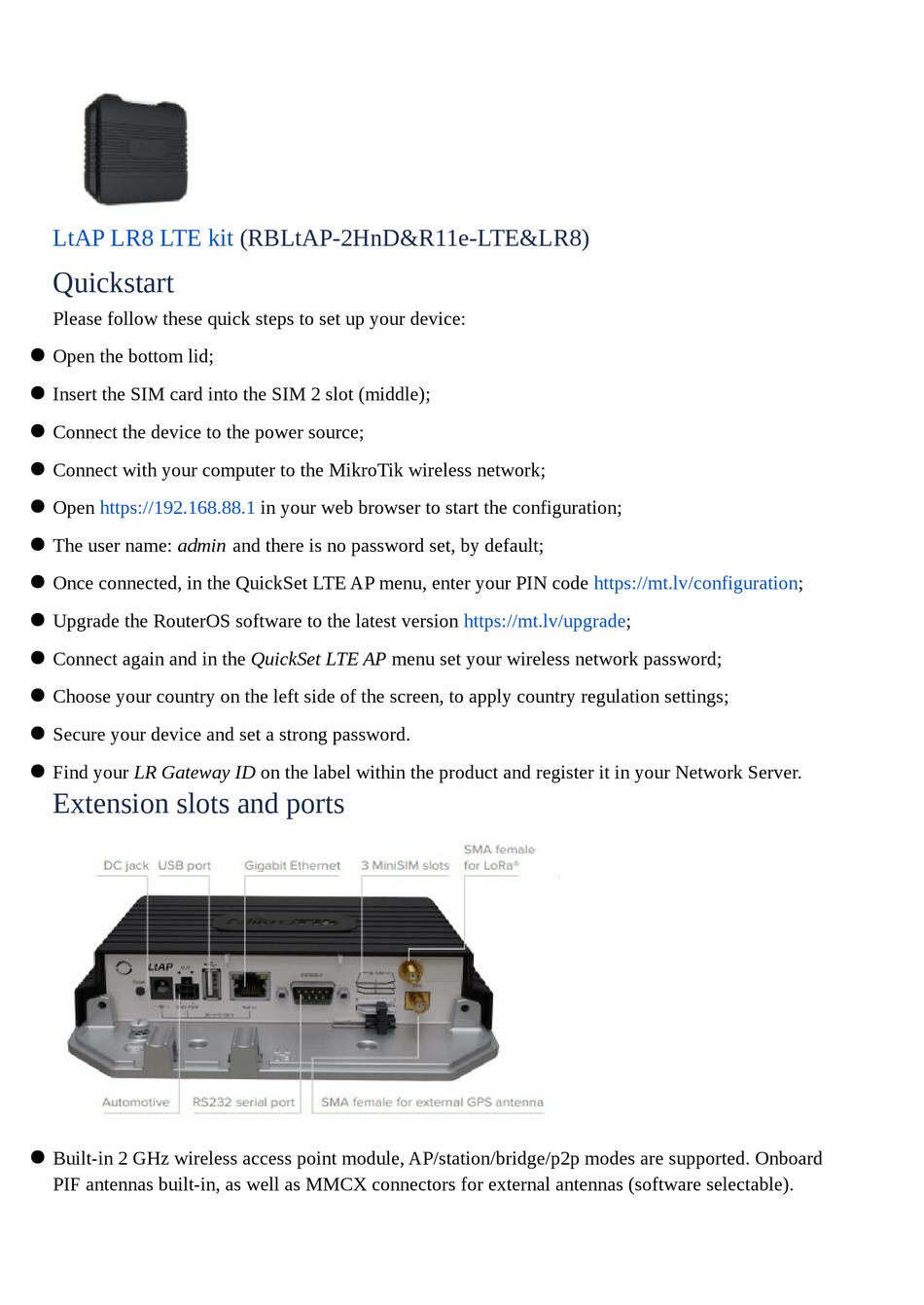

LtAP LR8 LTE
Quickstart
Please follow these quick steps to set up your device:
 Open the bottom lid;
 Insert the SIM card into the SIM 2 slot (middle);
 Connect the device to the power source;
 Connect with your computer to the MikroTik wireless network;
 Open https://192.168.88.1 in your web browser to start the configuration;
 The user name: admin and there is no password set, by default;
 Once connected, in the QuickSet LTE AP menu, enter your PIN code https://mt.lv/configuration;
 Upgrade the RouterOS software to the latest version https://mt.lv/upgrade;
 Connect again and in the QuickSet LTE AP menu set your wireless network password;
 Choose your country on the left side of the screen, to apply country regulation settings;
 Secure your device and set a strong password.
 Find your LR Gateway ID on the label within the product and register it in your Network Server.
Extension slots and ports
 Built-in 2 GHz wireless access point module, AP/station/bridge/p2p modes are supported. Onboard
PIF antennas built-in, as well as MMCX connectors for external antennas (software selectable).
kit (RBLtAP-2HnD&R11e-LTE&LR8)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LtAP LR8 LTE kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MikroTik LtAP LR8 LTE kit

  • Page 1  Insert the SIM card into the SIM 2 slot (middle);  Connect the device to the power source;  Connect with your computer to the MikroTik wireless network;  Open https://192.168.88.1 in your web browser to start the configuration;  The user name: admin and there is no password set, by default;...
  • Page 2  Two miniPCIe slots and three SIM slots.  Built-in GPS module with an external SMA connector.  Gigabit Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or crossover cable can be used for connecting to other network devices. The Ethernet port accepts 12-30 V DC powering from a passive PoE injector.
  • Page 3: Usb Usage

     Enabling - /system gps set enable=yes;  Setting antenna to external - /system gps set gps-antenna-select=external;  Checking configuration - /system gps print. https://wiki.mikrotik.com/wiki/Manual:System/GPS LR usage For interface configuration please visit https://wiki.mikrotik.com/wiki/Manual:Interface/Lora We recommend using our antenna kit, https://mikrotik.com/product/lora_antenna_kit...
  • Page 4 Automotive connector usage Powering  Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 12-30 ⎓ V DC with provided 24 V, 1.2 A adapter.  Ethernet port accepts passive Power over Ethernet 12-30 V DC ⎓...
  • Page 5: Minipcie Slot

    miniPCIe slot SIM card connectivity  MiniPCIe 1 LR (top slot) supports PCIe and USB 2.0 cards but is shared with the USB 2.0 type A port (can use either the USB port or miniPCIe slot at the same time). It can be used only for SIM slot #1.
  • Page 6: Reset Button

    RouterOS menu /system resource. Other operating systems have not been tested. MikroTik mobile app Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point.
  • Page 7: Safety Warnings

    1. Scan QR code and choose your preferred OS. 2. Install and open application. 3. By default, the IP address and user name will be already entered. 4. Click Connect to establish a connection to your device through a wireless network. 5.
  • Page 8: Ce Declaration Of Conformity

    It is the end users responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed.
  • Page 9 Mikrotīkls SIA igazolja, hogy a RouterBOARD típusú rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: https://mikrotik.com/products Il fabbricante, Mikrotīkls SIA, dichiara che il tipo di apparecchiatura radio RouterBOARD è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità...
  • Page 10 MikroTik respecte les limites maximales de puissance de transmission WLAN et LTE conformément aux réglementations ETSI. Pour plus d'informations, voir la déclaration de conformité ci-dessus / Questo dispositivo MikroTik è conforme ai limiti massimi di potenza di trasmissione WLAN e LTE in conformità con le normative ETSI. Per ulteriori informazioni, consultare la dichiarazione di conformità...
