MikroTik LtAP RB912R-2nD-LTm&R11e-LTE User Manual

LtAP mini kit-series
LtAP mini LTE series user manual for models:
LtAP mini LTE kit (RB912R-2nD-LTm&R11e-LTE)
LtAP mini LTE kit-US (RB912R-2nD-LTm&R11e-LTE-US)
LtAP mini 4G kit (RB912R-2nD-LTm&R11e-4G)

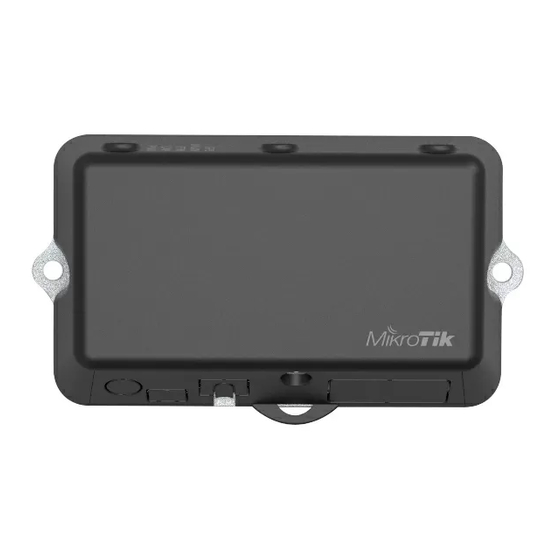

The LtAP mini LTE kit is a wireless access point with two SIM card slots. The LtAP mini LTE, 4G kit comes with a factory-installed card.

Connecting

If the intent is to use GPS, an external antenna is required (see "
Choose your powering solution (see "
Connect your Internet cable to the Ethernet port.
Set your computer IP configuration to
Connect your direct input power jack if not using PoE, to start up the device.
The device will boot up and the Wireless network will be available for connecting.
Open network connections on your PC, mobile phone, or other device and search for MikroTik wireless network and connect to it.
Once connected to the wireless network, open
default, you will be logged in automatically. The configuration also can be done using the mobile app (see "
Configuration tool https://mt.lv/winbox
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best
performance and stability.
Choose your country, to apply country regulation settings, and set up your password on the screen that loads.

Mounting

1. It is possible to attach the device to a wall, using the provided screw holes on the sides of the unit. The device should be mounted in a way that
the cable openings are pointing downward as shown in the picture.
2. The ports are protected with a small door, that is held in place with one screw. Use the Philips PH2 screwdriver to access the ports.
3. The door has cut-out places for all available ports, but please only break out the openings that you will use. The device can be used both indoors
and outdoors. The IP rating scale for this device is IP54.
4. The device enclosure has places where you can drill openings for external LTE and GPS antennas. Use a drill to make holes that are appropriate
for the antenna cable used.
Alternatively, you can obtain a "DINrail Pro" - mounting bracket, designed to fit standard 35 mm x 7.5 mm DIN rails.
Gps Usage
Powering ").
automatic (DHCP).
https://192.168.88.1
.
").
in your web browser to start configuration, since there is no password by
Mikrotik Mobile App "), and WinBox
https://mikrotik.com/product/dinrail_pro
