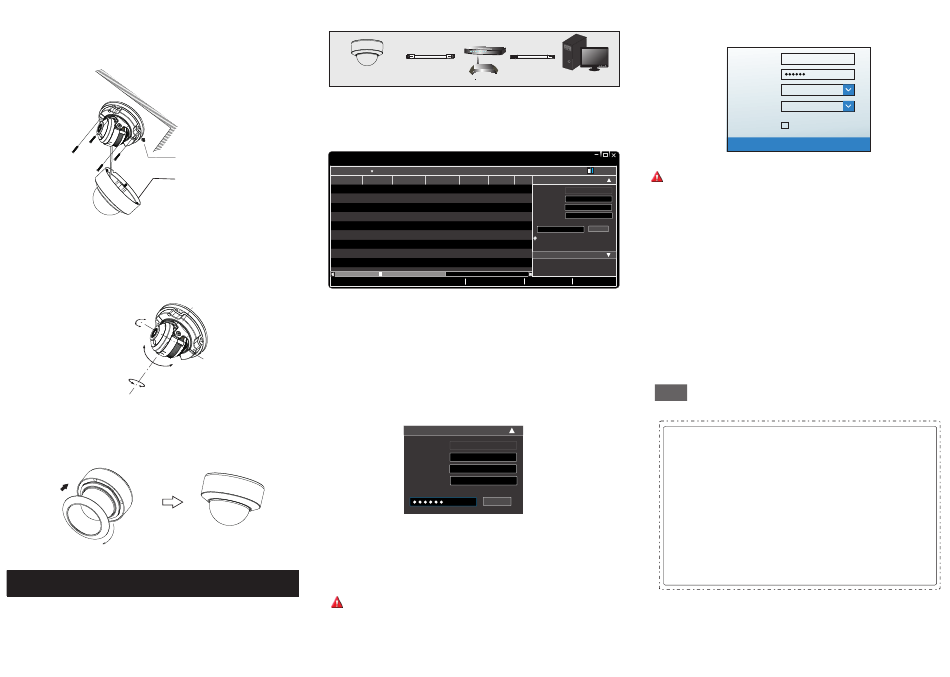

Loosen the screws to open the lower dome.
③
④ Route and connect the cables.
⑤ Secure the camera to the wall with screws provided as shown
below.
Rubber Plug
Lower dome
Three-axis adjustment. Before adjustment, view the image of
⑥
the camera on a monitor and then adjust the camera according to the
figure below to get an optimum angle.
Pan 0°~355°
Tilt 0°~67°
Rotation 0°~355°
Install the lower dome back to the camera and fix it with the
⑦
screws. Then put the trim ring onto the lower dome and then rotate it
clockwise until it is locked.
5
Network Connection
In LAN, there are two ways to access the camera. 1. Access
Through Xcel IP Utility; 2. Direct Access Through Web Browser
• Access Through Xcel IP Utility
Switch
Network Cable
IPC
Router
① Make sure that the camera and the PC are connected to the local
network.
② Install the Xcel IP Utility from the CD and run it after installation.
Device Network Search
Immediate Refresh
Device Name Device Type Product Model IP Address Http Port Data Port
name
IPC unknown 192.168.226.201 80
name unknown 192.168.1.2 80
IPC
name
IPC unknown 192.168.1.3 80
Total Device: 3 Local IP Address:192.168.1.4 Subnet Mask:255.255.255.0 Gateway: 192.168.1.1
③ Modify the IP address. The default IP address of this camera is
192.168.226.201. Click the information of the camera listed in the
above table to show the network information on the right hand. Modify
the IP address and gateway of the camera and make sure the network
address is in the same local network segment as the computer. Please
modify the IP address of your device according to the practical
situation.
Modify Network Parameter
Mac Address CE :98 :23 :75 :35 :22
IP Address 192 .168 . 1 . 201
Subnet Mask 255 . 255 . 255 . 0
192 .168 . 1 . 1
Gateway
Modify
For example, the IP address of your computer is 192.168.1.4. So the
IP address of the camera shall be changed to 192.168.1.X. After
modification, please enter the password of the administrator and click
"Modify" button to modify the settings.
The default password of the administrator is "123456".
④ Double-click the IP address and then the system will pop up the web
browser to connect the IP Camera. Follow directions to download and install
the plugin in the computer. Then enter the user name and password in the
login interface.
Network Cable
MENU
Computer
About
The default username is admin; the default password is 123456.
Subnet Modify Network Parameter
9008 255.255.
Mac Address CE :98 :23 :75 :35 :22
9008 255.255.
192 .168 . 226 . 201
IP Address
• Direct Access Through Web Browser
9008 255.255. Subnet Mask 255 . 255 . 255 . 0
192 .168 . 226 . 1
Gateway
① Make sure that the camera and the PC are connected via LAN.
Modify
i
Tip: Enter the administrator password, and ② Find the Xcel IP Utility from the CD and then install it in the
then modify the network parameters.
computer. After that, run the Xcel IP Utility.
Restore IPC Default Configuration
③ Modify the IP address and make sure the network address is in the
DNS：210.21.196.6
same local network segment as the computer.
④ Open your web browser and enter the modified IP address in the
address bar to log in the web client. Follow directions to download the
plug-in in the computer. After that, enter the default user name and
password to log in.
Tips
Transparent dome is an optical element which is made of plastics.
fingerprints on the dome will reduce the clarity of the image, please keep it clean in the
course of installing or using but do not directly touch or wipe it. If there is any dirt or
dust, please follow these cleaning tips to clean your dome camera.
*
* If there is water or grease on the dome, please gently wipe off the water or grease with
* If there are fingerprints on the dome, please use a clean cotton cloth or lens cleaning
admin
Name：
Password：
Stream Type： 1920x1080 25fps
Language：
English
Remember me
Login
Transparent Dome Maintenance
If there is dust on the dome, please use a dry soft brush to gently brush it .
a soft cloth. Then use another clean cloth with a little neutral detergent to wipe it
several times until it is clean. Finally, dry it with a soft cloth.
wipe with a little neutral detergent to wipe it several times and then dry it with a soft
cloth.
NCT-5ML-OV2450043001328 A0
