Nuvico Xcel NCT-5ML-OV21AF Quick Start Manual

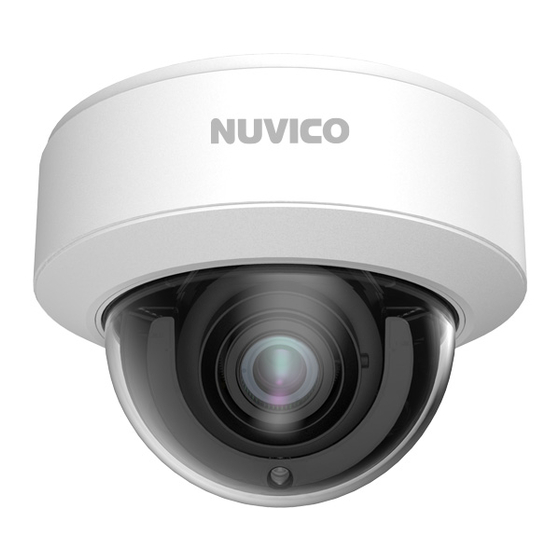

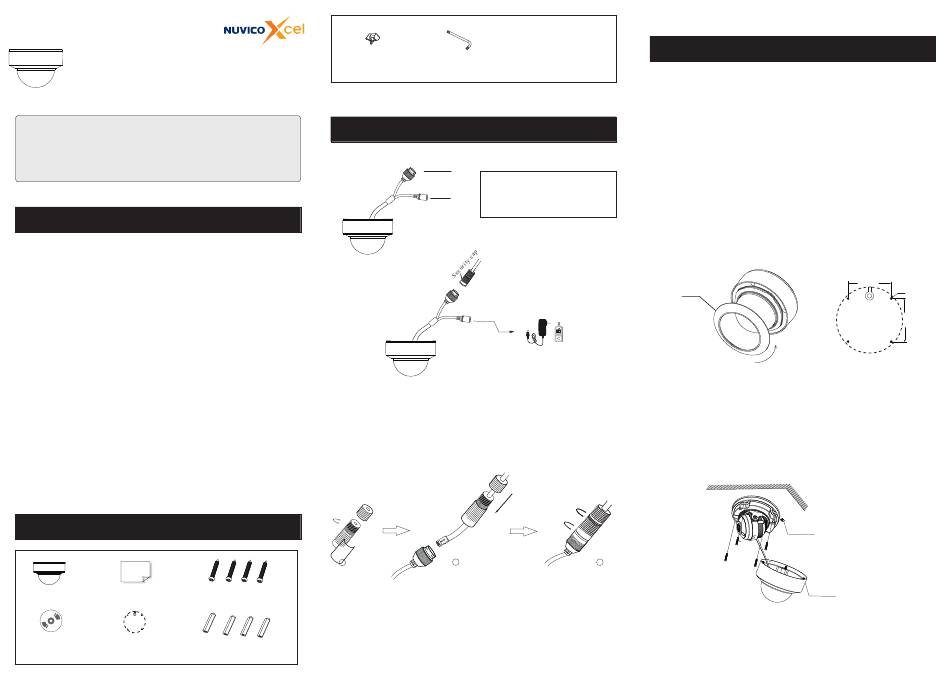

NCT-5ML-OV21AF Vandal Dome Camera
Quick Start Guide
■ Please read these instructions carefully before using the product and keep it
for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer or the nearest
service center. Never attempt to disassemble the camera yourself. (We shall not be
responsible for any problems caused by unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be in strict compliance with the electrical
safety regulations of the nation and region. When the product is mounted on wall
or ceiling, the device shall be firmly fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating temperature shall
be -22˚F~144˚F), dusty or damp locations, and do not expose it to high
electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating
environment.
2
Package
Camera Quick start guide 4 tapping screws PA 4×25
CD
Drill template
Rubber plug
3
Overview
* If the PoE switch is used to power the camera, DC12V power supply is not
required.
* It is recommended to install the security cap for outdoor installation.
► Connecting Network Cable
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through both
elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
×4
Plastic plug
nut and the main cover.
Screwdriver
1
1 Ethernet Connector
2
2 DC12V Power Connector
DC12V
2 3
4
Installation
* Please make sure that the wall or ceiling is strong enough to withstand 3
times the weight of the camera.
* Please install the camera in the dry environment. You'd better install back the
lower dome less than 4 hours after removing it.
* Do not remove the protection film until finishing the installation.
► Camera Installation
①
Rotate the trim ring anticlockwise to remove it from the camera.
② Attach the drill template to the place where you want to fix the
camera and then drill 4 screw holes and 1 cable hole (if you want to
route the cables through the ceiling) according to the drill template.
Trim Ring
Figure 1
③ Loosen the screws to open the lower dome.
④ Route and connect these cables. Then secure the camera to the
ceiling or wall with the screws provided.
Figure 3
Rubber plug
* Install it when routing the cables
through the ceiling.
3.55 in
1/32 in
∅
3.55 in
Figure 2
Lower dome
