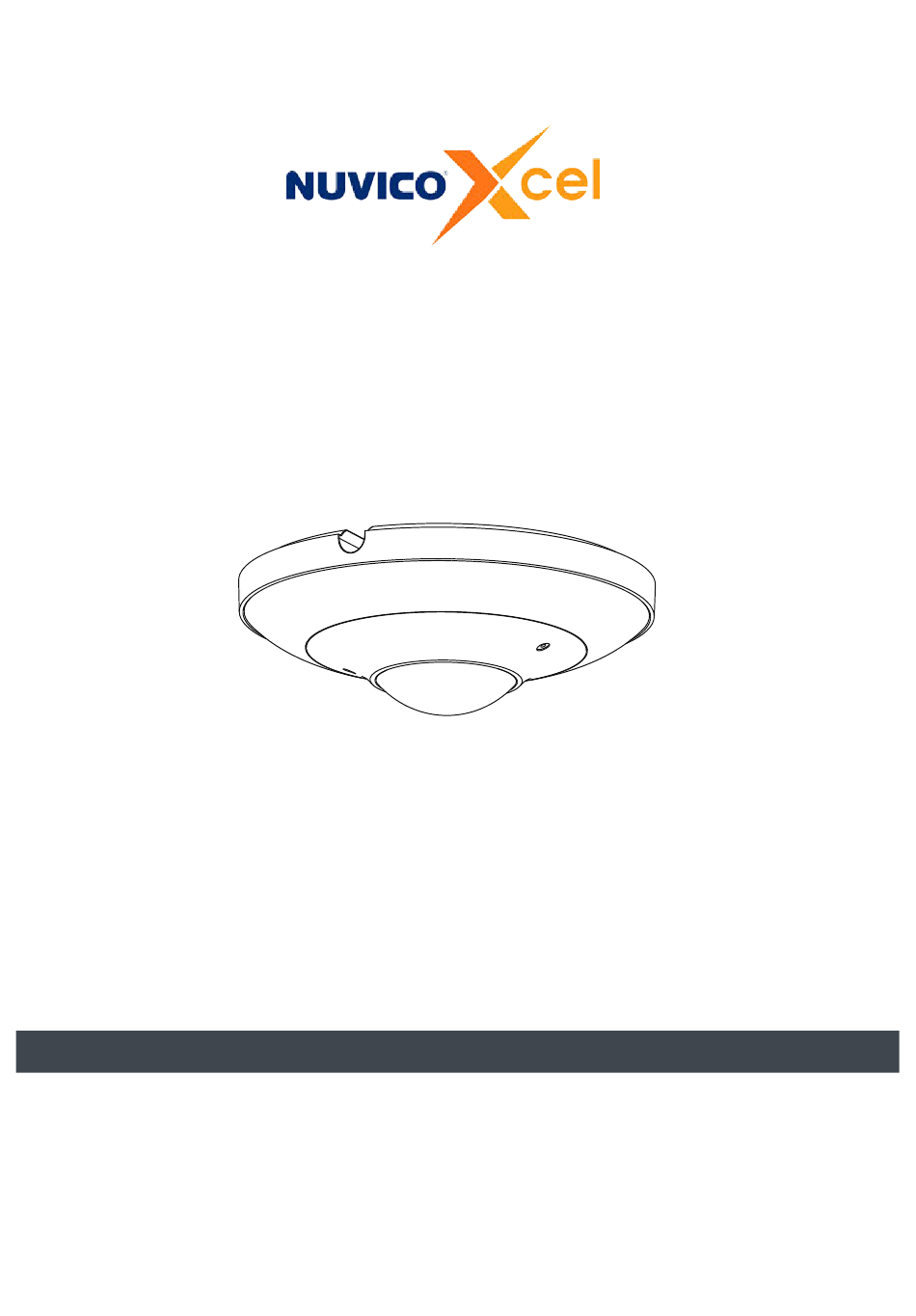

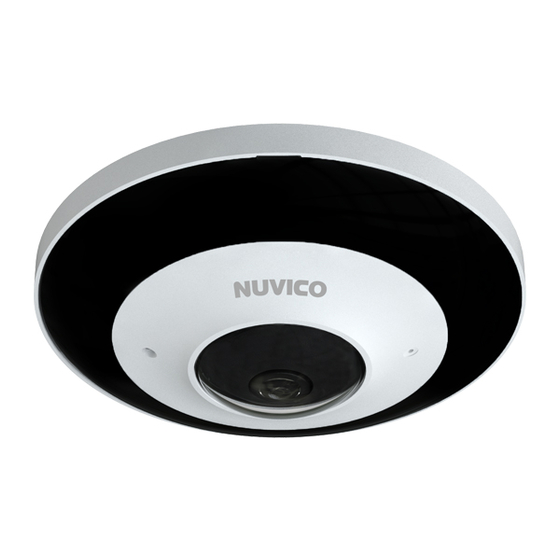

NCT-6M-FE Fisheye Camera
■
Please read these instructions carefully and preserve it for further reference.
All the examples and pictures used here are for reference only.
■
■
There may be several technically incorrect places or printing errors in this
manual. The update information will be added into the new version of this manual.
The contents of this manual are subject to change without notice.
Quick Start Guide
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nuvico Xcel NCT-6M-FE
Summary of Contents for Nuvico Xcel NCT-6M-FE
- Page 1 NCT-6M-FE Fisheye Camera Quick Start Guide ■ Please read these instructions carefully and preserve it for further reference. All the examples and pictures used here are for reference only. ■ ■ There may be several technically incorrect places or printing errors in this manual.
-
Page 2: Warning And Caution
Warning and Caution ■ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not be responsible for any problems caused by unauthorized repair or maintenance.) ■... - Page 3 Package Quick start guide Camera Screwdriver Drill template Tapping screws ×3 × 3 Plastic plug Overview 1 Ethernet Connector 2 MIC IN 3 HP Audio Output 4 Video Output 5 Alarm Input/Output 6 RS485 7 DC12V Power Supply 8 SD Card Slot 9 Reset...
- Page 4 ALM-COM ALM-OPEN ALM-INA ALM-GND RS485T+ RS485T- DC12V * If a PoE switch is used to power the camera, DC12V power supply is not required. ● Alarm Connection Alarm Input: Join the grounding ends of the sensor and the camera and then connect the signal cable of the sensor to the alarm input port (ALM-INA) of the camera.
-
Page 5: Installation
① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements. Then crimp the cable with RJ 45 connector. ③ Connect the cable to the hermetic connector. Then tighten the nut and the main cover. Installation Please install and use the camera in a dry environment. - Page 6 Install Camera ● Before installation, please make sure that the wall is strong enough to withstand 3 times the weight of the camera. ① Remove the fixed ring from the gap of the camera (see Install SD Card ① ). ②...
- Page 7 ⑤ Install the fixed ring back to the camera. Install Camera with Junction Box ● ① Remove the fixed ring from the gap of the camera (see Install SD Card ① ). ② Install the junction box onto the wall. ③...
-
Page 8: Network Connection
Rubber plug ④ Install the fixed ring back to finish the installation. Network Connection Here we take accessing the device via LAN for example. In LAN, there are two ways to access. 1. Access through Xcel IP Utility; 2. Direct Access through Web Browser... - Page 9 The default network settings are as shown below: IP address: 192.168.226.201 HTTP:80 Subnet Mask: 255.255.255.0 Data Port:9008 Gateway: 192.168.226.1 You may use the above default settings when you log in the camera for the first time. Switch Network Cable Network Cable MENU Computer Router...
- Page 10 ③ M M odify the IP address. The default IP address of this device is 192.168.226.201. Click the information of the camera listed in the above table to show the network information on the right hand. Modify the IP address and gateway of the camera and make sure the network address is in the same local network segment as the computer.
- Page 11 admin Name： Password： Stream Type： 1920x1080 25fps Language： English Remember me Login The default username is admin; the default password is 123456. • Directly Access Through Web Browser ① Make sure that the camera and the PC are connected via LAN. ②...
- Page 12 NCT-6M-FE450043000930 A1...
