Nuvico Xcel NCT-5ML-E2 Quick Start Manual

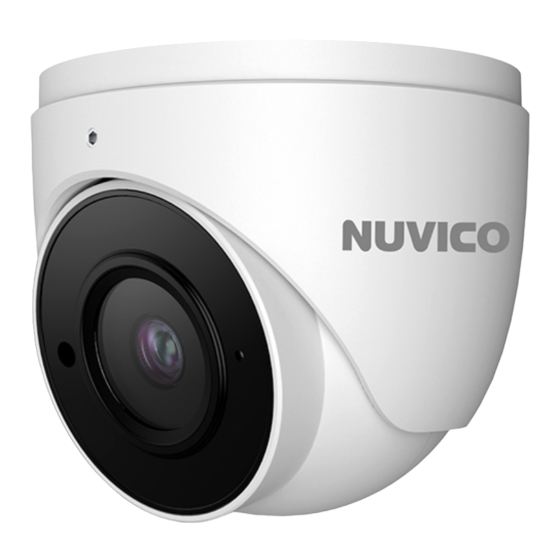

NCT-5ML-E2 Eyeball Camera
Quick Start Guide
■ Please read these instructions carefully before operating the unit
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer or
the nearest service center. Never attempt to disassemble the camera
yourself. (We shall not be responsible for any problems caused by
unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be in strict compliance with the
electrical safety regulations of the nation and region. When the product is
mounted on wall or ceiling, the device shall be firmly fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -22˚F~140˚F), dusty or damp locations, and do not
expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

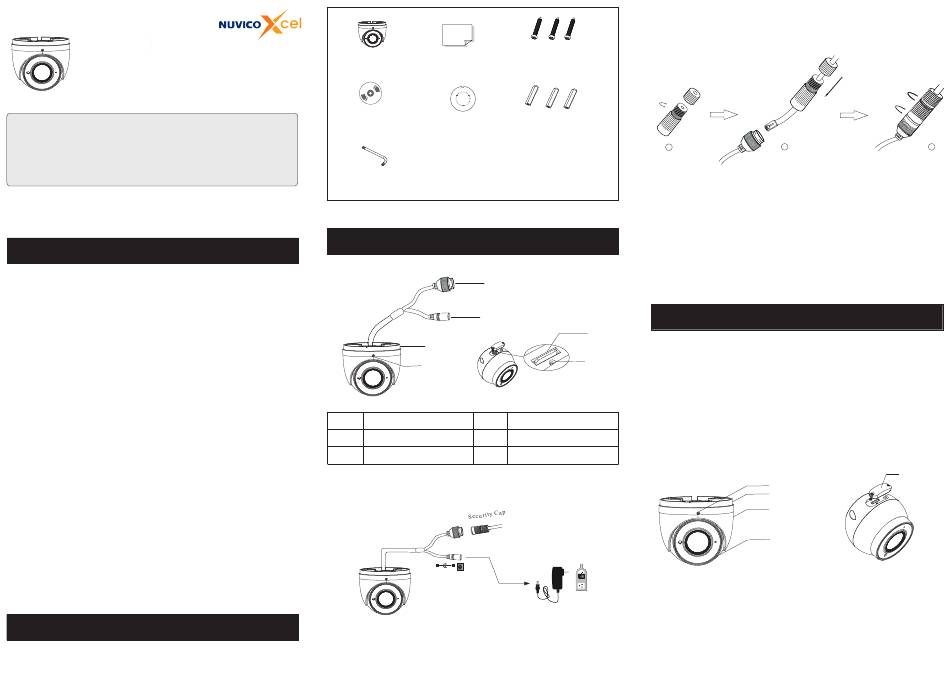

Package
Camera Quick start guide
CD
Drill template
Screwdriver
3
Overview
1
2
3
4
1
Network connector
4
Power connector
2
5
3
Mounting base 6
Note: Micro SD card slot and reset are optional. If no such interfaces, please
skip the above-mentioned(5, 6) instructions.
DC12V
* 1 It is recommended to install the security cap for outdoor installation.
* 2 If the PoE switch is used to power the camera that supports PoE power supply,
DC12V power supply is not required.
► Connecting Network Cable
Tapping screw × 3
×3
Plastic plug
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through both
elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the nut
and the main cover.
4
Installation
5
Please make sure that the wall or ceiling is strong enough to
6
withstand 3 times the weight of the camera.
①
Loosen the fixed screw to disassemble the camera.
②
Remove the cover from the dome to insert the SD card. Then,
install the cover back to the dome and fix it firmly with the screws.
Fixed screw
Note that the cover should not be installed unevenly. (Please skip this
Micro SD card slot*
step if your camera has no micro SD card slot).
Reset*
③
Attach the drill template to the place where you want to fix the camera
and then d rill the screw holes and the cable hole on the wall according to
the drill template.
2 3
Cover
Fixed Screw
Mounting Base
Enclosure
Dome
