Nuvico Xcel NCT-5ML-E21AF Quick Start Manual

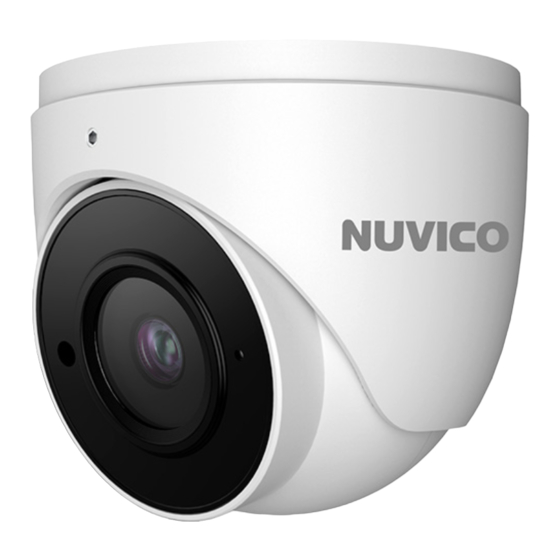

NCT-5ML-E21AF Eyeball Camera
Quick Start Guide
■ Please read these instructions carefully before operating the unit
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
1

Warning and Caution

■ If the product does not work properly, please contact your dealer or
the nearest service center. Never attempt to disassemble the camera
yourself. (We shall not be responsible for any problems caused by
unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be in strict compliance with the
electrical safety regulations of the nation and region. When the product is
mounted on wall or ceiling, the device shall be firmly fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -22˚F~140˚F), dusty or damp locations, and do not
expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating
environment.
2

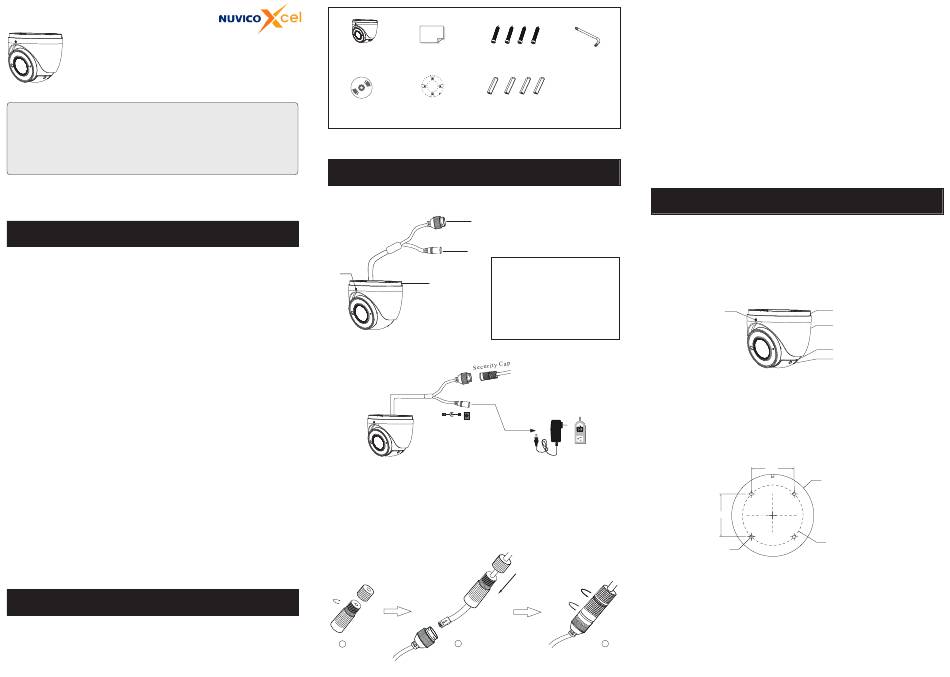

Package

Tapping screw ×4
Camera Quick start guide
Plastic plug
CD Drill template
3

Overview

1
2
4
3
DC12V
* 1 It is recommended to install the security cap for outdoor installation.
* 2 If the PoE switch is used to power the camera, DC12V power supply is not
required.

► Connecting Network Cable

1 2
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through both
elements. Then crimp the cable with RJ 45 connector.
Screwdriver
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
×4
4

Installation

Please make sure that the wall or ceiling is strong enough to
withstand 3 times the weight of the camera.
① Loosen the fixed screw to disassemble the camera.
Ethernet connector
1
Power connector
2
3 Mounting base
Fixed Screw
Fixed screw
4
②
Drill the screw holes and the cable hole on the wall according to
the drill template.
③ Route and connect the cables. Then secure the mounting base to
the ceiling or wall with the screws provided.
3
Mounting Base
Enclosure
Dome
Cover (only available for
manual zoom camera)
2.21in
Ø4.24 in
2.21 in
Ø3.13 in
Ø5.0 mm
