Nuvico NCT-5MLC-B2 Quick Start Manual

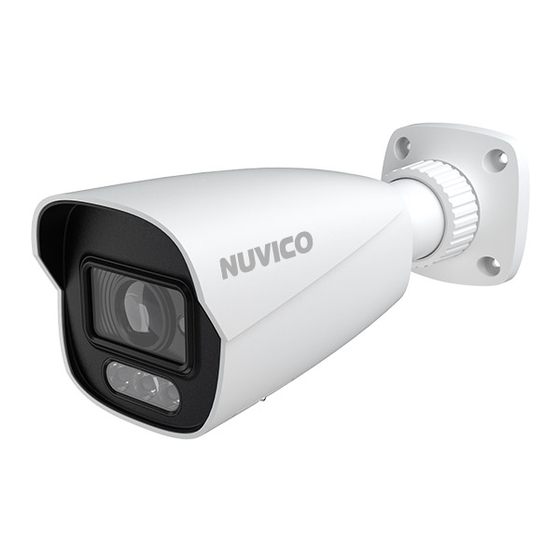

NCT-5MLC-B2 Bullet Camera
Quick Start Guide
■ Please read these instructions carefully before using the product
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
■ Visit nuvico.com for additional downloads, manuals, and
resources.
1

Warning and Caution

■ If the product does not work properly, please contact your dealer or
the nearest service center. Never attempt to disassemble the camera
yourself. (We shall not be responsible for any problems caused by
unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be in strict compliance with the
electrical safety regulations of the nation and region. When the product is
mounted on wall or ceiling, the device shall be firmly fixed.
■ Do not u se camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Do not directly touch the camera when installing.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Avoid pointing the camera towards the sun or other light sources.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -22˚F~140˚F), dusty or damp locations, and do not
expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating
environment.
2

Package

Camera Quick start guide
Drill template Rubber plug
3

Overview

1 2
1 Fixed ring
5 Power connector*
2 Mounting base
6 Micro SD card slot
3 Network connector*
7 Reset
4 Audio input
DC12V
* 1
It is recommended to install the security cap for outdoor installation.
* 2 This series can be powered by DC 12V/PoE power supply. If the PoE switch is
used to power the camera, DC12V power supply is not required.
* 3 Press and hold the reset button for more than 10 seconds to restore to the factory
4 tapping screws
1 machine screw default setting.
Plastic plug × 4
4

Installation

Before you start, please make sure that the wall or ceiling is strong
enough to withstand three times the weight of the camera. Please install
the camera in a dry environment.
① Install a micro SD card.
3
4
5
6
7
② Drill the screw holes and the cable hole (if you want to route
through the ceiling) on the wall or ceiling according to the drill
template.
48.08mm
48.08mm
∅4.6
