In-situ SmarTROLL Quick Start Manual

SmarTROLL MP System
Download the complete manual at www.in-situ.com
Installing the Sensors
Information subject to change without notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, HydroVu™, iSitu, Pocket-Situ, RDO, RuggedCable,
RuggedReader, SmarTROLL™, TROLL, VuSitu, and Win-Situ are trademarks or registered trademarks of In-Situ Inc. © 2015. All rights reserved.
Quick Start Guide

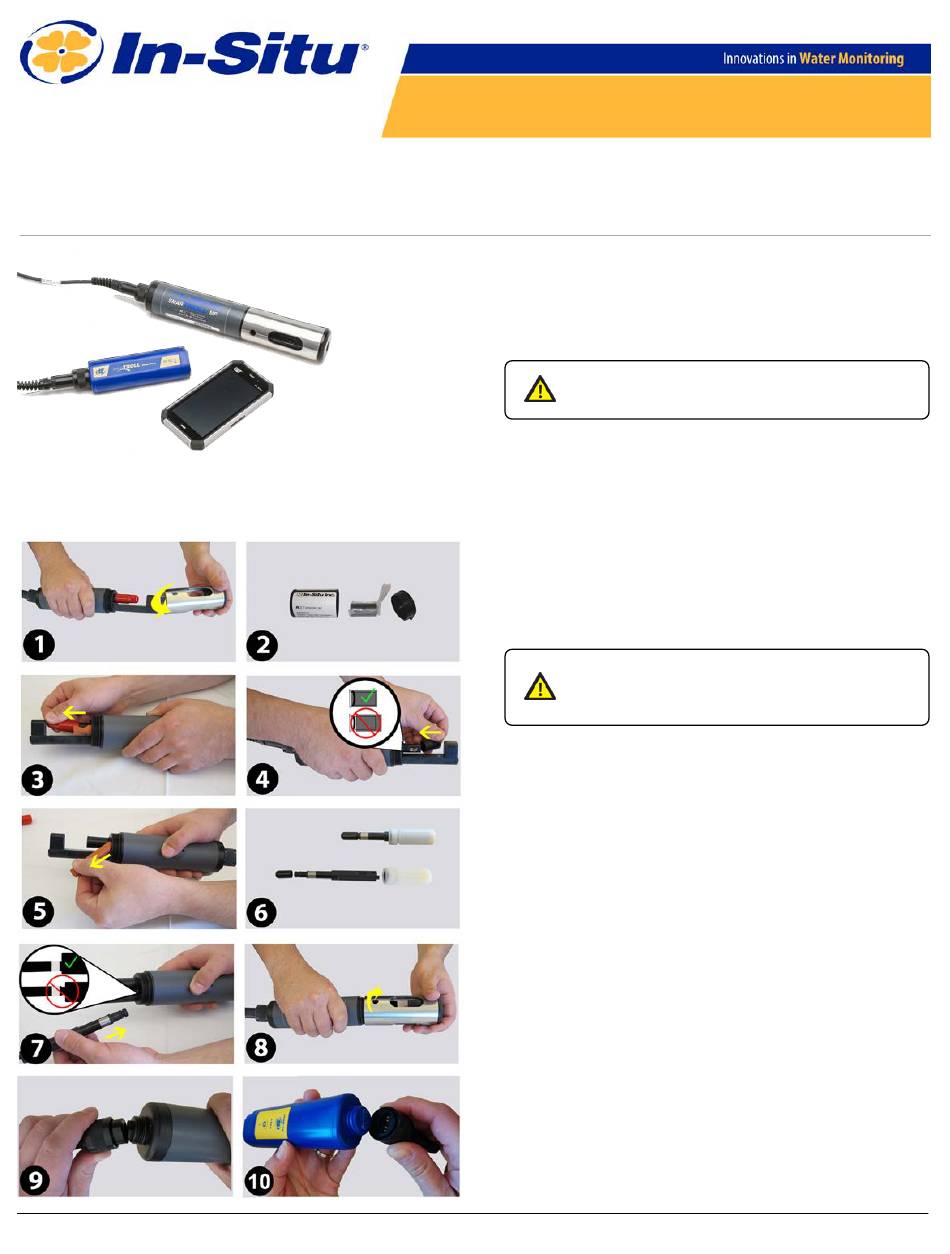

1. Twist the restrictor off the probe.
2. Locate the RDO Sensor Cap container and remove the cap.
3. Remove the dust cap from the RDO Sensor.
4. Align the flat edge of the RDO Sensor with the slotted edge of the RDO
Cap and press the cap into position. Push until the cap is firmly in place.
Important: Avoid touching the sensor lens and the sensing
material on the top of the cap.
5. Remove the orange plug from the pH/ORP port.
6. Remove the pH/ORP sensor from the storage bottle. Keep the bottle for
future sensor storage.
7. Use the alignment marks to properly align the pH/ORP sensor with the
port connection, and press firmly into place. Push until the sensor is
completely inserted into the port.
8. Twist the restrictor onto the probe.
9.
Align the pins on the cable with the pins on the probe, then twist the
outer portion of the connector until the connection is secure.
10. Align the pins on the cable with the pins on the Power Pack, then twist
the outer portion of the connector until the connection is secure.
Important: The RDO Sensor Cap and pH/ORP sensor must
be installed firmly in place to prevent water from entering the
instrument.
Connecting to VuSitu
1. Turn on the Power Pack.
2. Make sure the cable is connected to the instrument as well as the
communication device.
3. Go to Bluetooth settings on the phone.
02/2016 | Rev. 002 | 0099560
