Connect the instrument to the communication device.
1
Connect Rugged TROLL to one of the three available communication devices (Wireless Rugged TROLL Com, Rugged
TROLL Com or Docking Station).
Unscrew cap from
instrument.
or
Information subject to change without notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, HydroVu™, iSitu, Pocket-Situ, RDO,
RuggedCable, RuggedReader, SmarTROLL™, TROLL, VuSitu, and Win-Situ are trademarks or registered trademarks of In-Situ Inc.
rights reserved. This product may be covered by patents identified at www.in-situ.com/patents
Instrument & Required Accessories

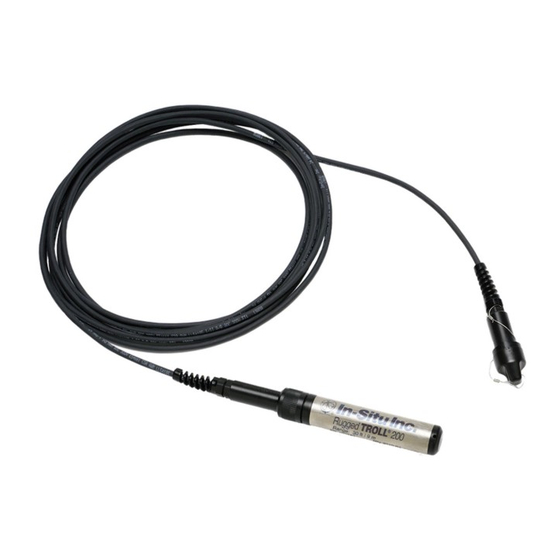

1. Rugged TROLL instrument
2. One of the following communication solutions:
3. Bluetooth-enabled mobile device or Windows PC
Getting Started (3 Steps)
Unscrew cap from end of
cable.
Line up instrument tab with
docking station slot.

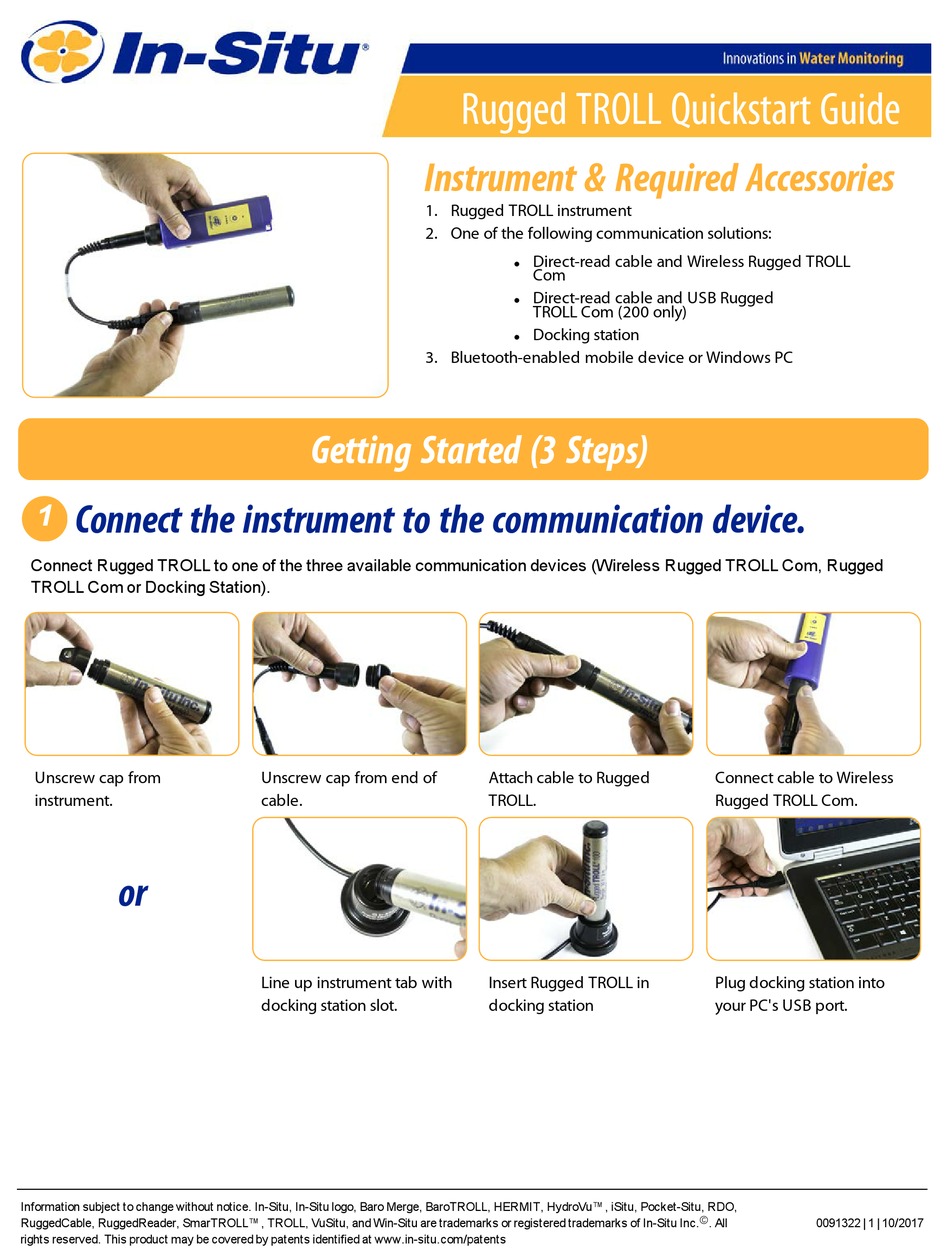

Rugged TROLL Quickstart Guide
Direct-read cable and Wireless Rugged TROLL
l
Com
Direct-read cable and USB Rugged
l
TROLL Com (200 only)
Docking station
l
Attach cable to Rugged
TROLL.
Insert Rugged TROLL in
docking station
Connect cable to Wireless
Rugged TROLL Com.
Plug docking station into
your PC's USB port.
©
. All
0091322 | 1 | 10/2017
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for In-situ Rugged TROLL
Summary of Contents for In-situ Rugged TROLL
- Page 1 3. Bluetooth-enabled mobile device or Windows PC Getting Started (3 Steps) Connect the instrument to the communication device. Connect Rugged TROLL to one of the three available communication devices (Wireless Rugged TROLL Com, Rugged TROLL Com or Docking Station). Unscrew cap from...
- Page 2 (Rugged TROLL 200 only) Open Rugged TROLL Com's Secure direct-read cable to Connect cable to instrument battery compartment door. TROLL Com. and plug into PC's USB port. Insert 9-volt battery. Connect to the software. Option 1: Connect to the VuSitu mobile app (recommended) Download the VuSitu mobile app from the Google Play Store at play.google.com.
- Page 3 Click OK . to sync device time with device now? Select Serial local system. Communications radio button. Click Search for Devices . Learn more. Get complete instructions for your instrument and software in the product manual. Download it from www.in-situ.com.
