1 Quick Guide
The illustration below shows all control terminals of the frequency converter. Applying Start (term. 18) and an analog
reference (term. 53 or 60) make the frequency converter run.
1
Illustration 1.5: Overview of control terminals in PNP-configuration and factory setting.

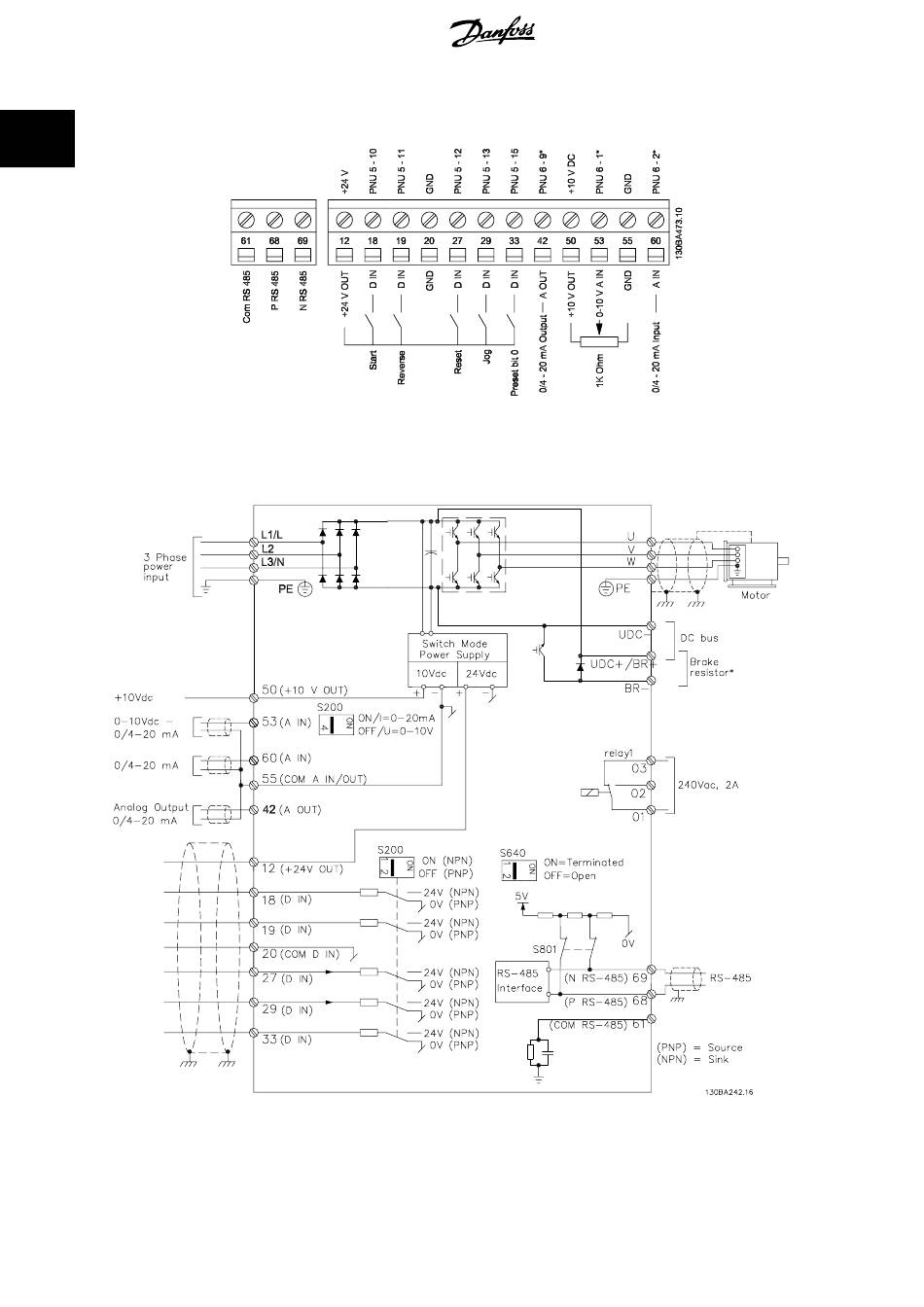

1.3.8 Power Circuit - Overview

Illustration 1.6: Diagram showing all electrical terminals.
* Brake (BR+ and BR-) are not applicable for frame M1.
6
®
MG.02.B5.02 - VLT
is a registered Danfoss trademark
Quick Guide for VLT Micro FC 51
