Benchmark Games GOLDZONE Manual page 12

J201
VOLUME CONTROLS
ISP
DIP
SWITCH
1
2
3
4
5
6
SOUND ROM 2
7
8
PIN1
SOUND ROM 1
PIN1
BATTERY
PIN1
GAME ROM
PIN1
PIN1
J205
CPU
PIN1
PIN1
J206 J206
J106 J106
PIN1
NOTE: THERE HAVE BEEN 5 REVISIONS OF THE BENCHMARK CONTROLLER, ONLY REV 5 WILL
WORK IN GOLDZONE. THE JUMPER ON THE MHZ MUST BE SET AT 33 MHZ
AS SHOWN ON THE PICTURE ABOVE. BE CAREFULL WITH THE CONNECTORS NOT TO PUT THEM
ONE PIN OFF OR BEND ANY OF THE PINS.
J203 J204

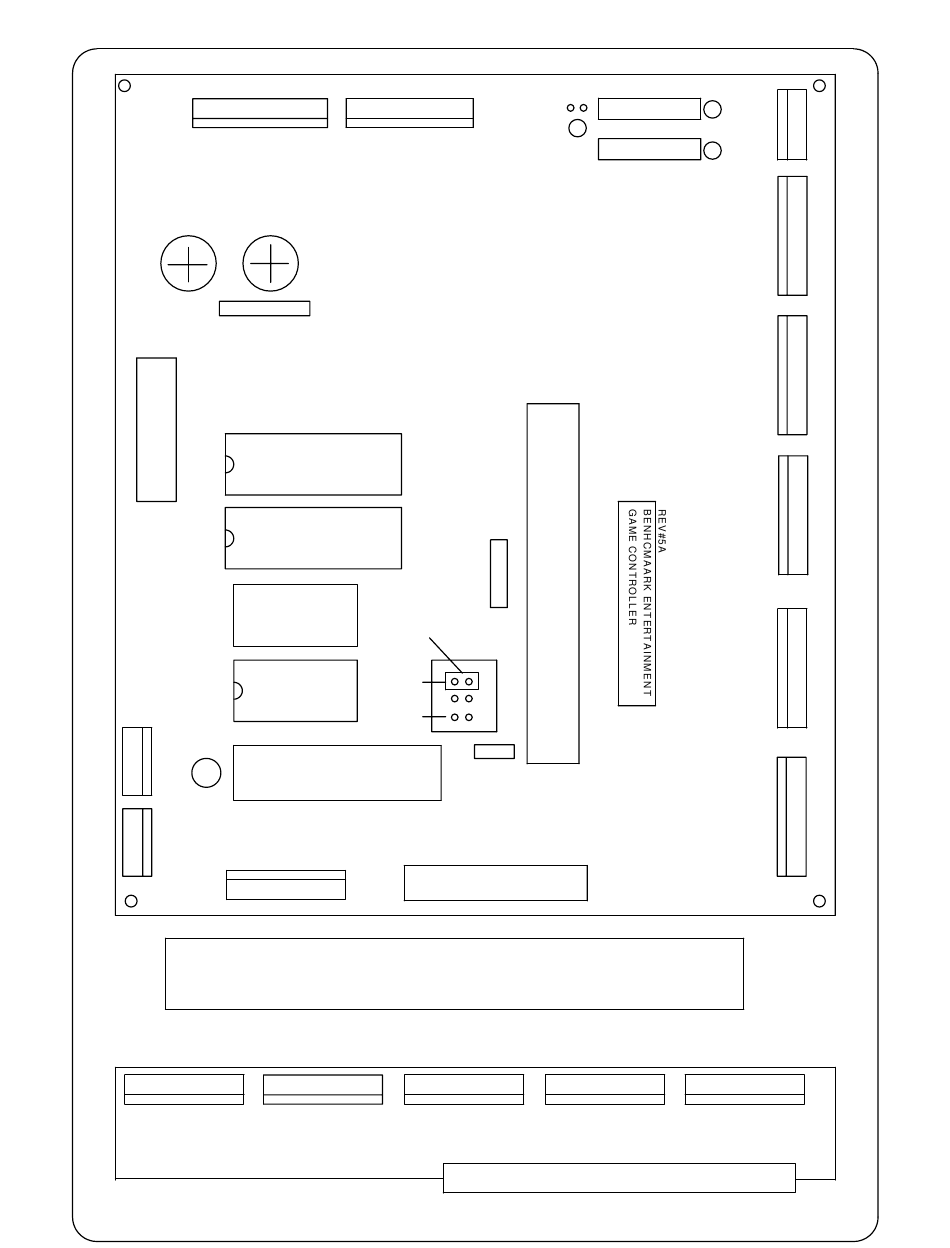

CPU BOARD BLOCK DIAGRAM
J202
ACS BUS CONNECTOR
JUMPER
33 MHZ
20 MHZ
CLOCK
POWER CONNECTOR
EXPANSION BOARD
J205
ACS SPIN EXPANSION MODULE
CPU-1
PIN1
AMPLIFIER
J301
AMPLIFIER
PIN1
J101
PIN1
J102
PIN1
J103
PIN1
J104
PIN1
J105 J105
J107
J108
