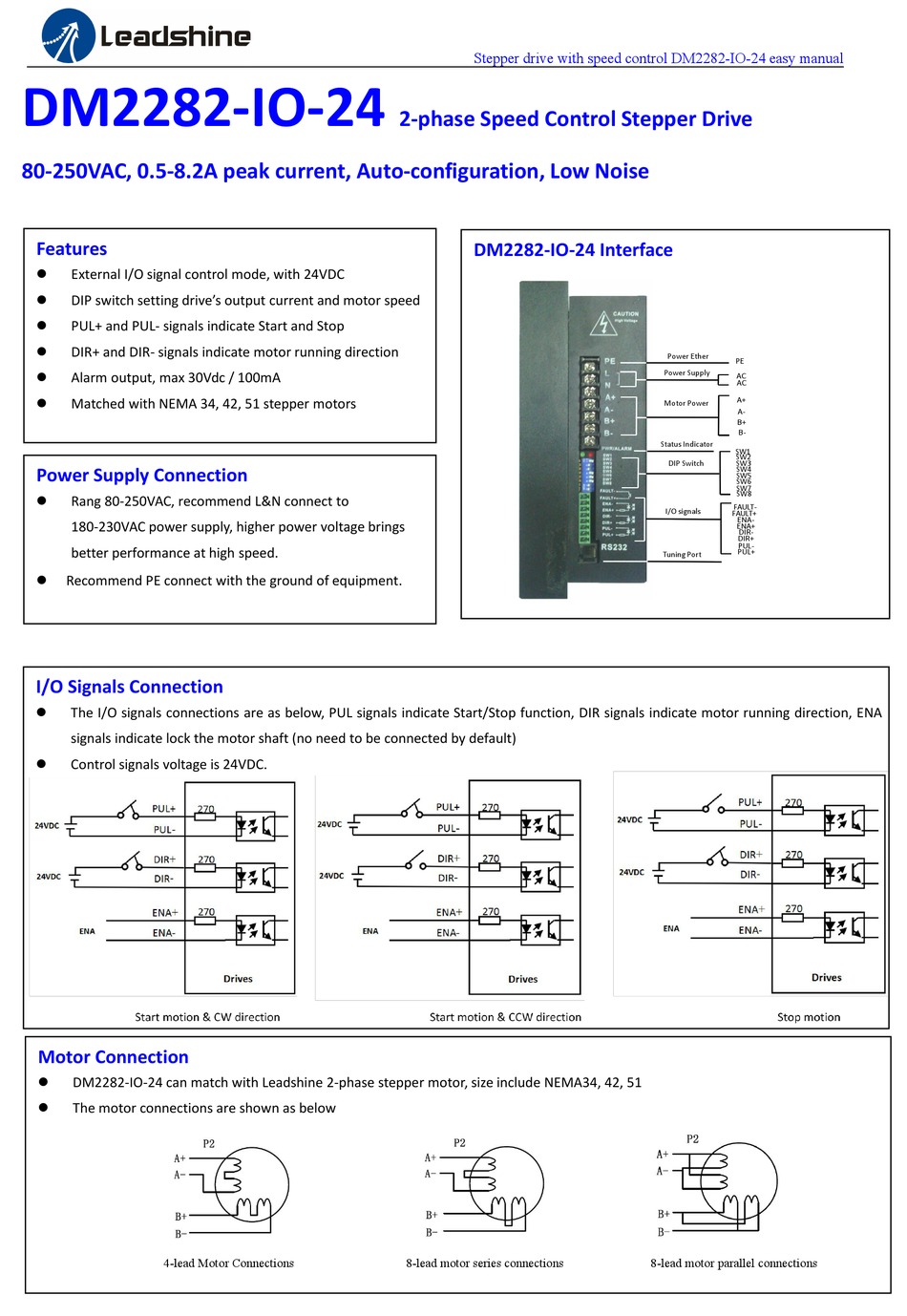

Leadshine DM2282-IO-24 Quick Start Manual

DM2282-IO-24
80-250VAC, 0.5-8.2A peak current, Auto-configuration, Low Noise

Features

External I/O signal control mode, with 24VDC

Dip Switch Setting drive's output current and motor speed

PUL+ and PUL- signals indicate Start and Stop

DIR+ and DIR- signals indicate motor running direction

Alarm output, max 30Vdc / 100mA

Matched with NEMA 34, 42, 51 stepper motors


Power Supply Connection

Rang 80-250VAC, recommend L&N connect to

180-230VAC power supply, higher power voltage brings
better performance at high speed.
Recommend PE connect with the ground of equipment.


I/O Signals Connection

The I/O signals connections are as below, PUL signals indicate Start/Stop function, DIR signals indicate motor running direction, ENA

signals indicate lock the motor shaft (no need to be connected by default)
Control signals voltage is 24VDC.


Motor Connection

DM2282-IO-24 can match with Leadshine 2-phase stepper motor, size include NEMA34, 42, 51

The motor connections are shown as below

4-lead Motor Connections
Stepper drive with speed control DM2282-IO-24 easy manual
2-phase Speed Control Stepper Drive

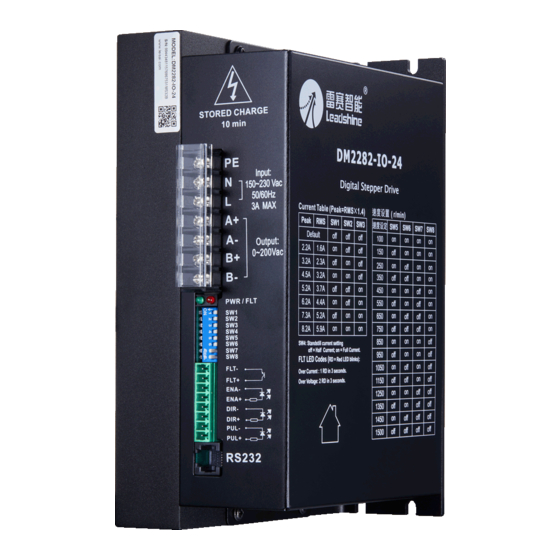

DM2282-IO-24 Interface
8-lead motor series connections
Power Ether
PE
Power Supply
AC
AC
A+
Motor Power
A-
B+
B-
Status Indicator
SW1
SW2
DIP Switch SW3
SW4
SW5
SW6
SW7
SW8
FAULT-
I/O signals
FAULT+
ENA-
ENA+
DIR-
DIR+
PUL-
PUL+
Tuning Port
8-lead motor parallel connections
