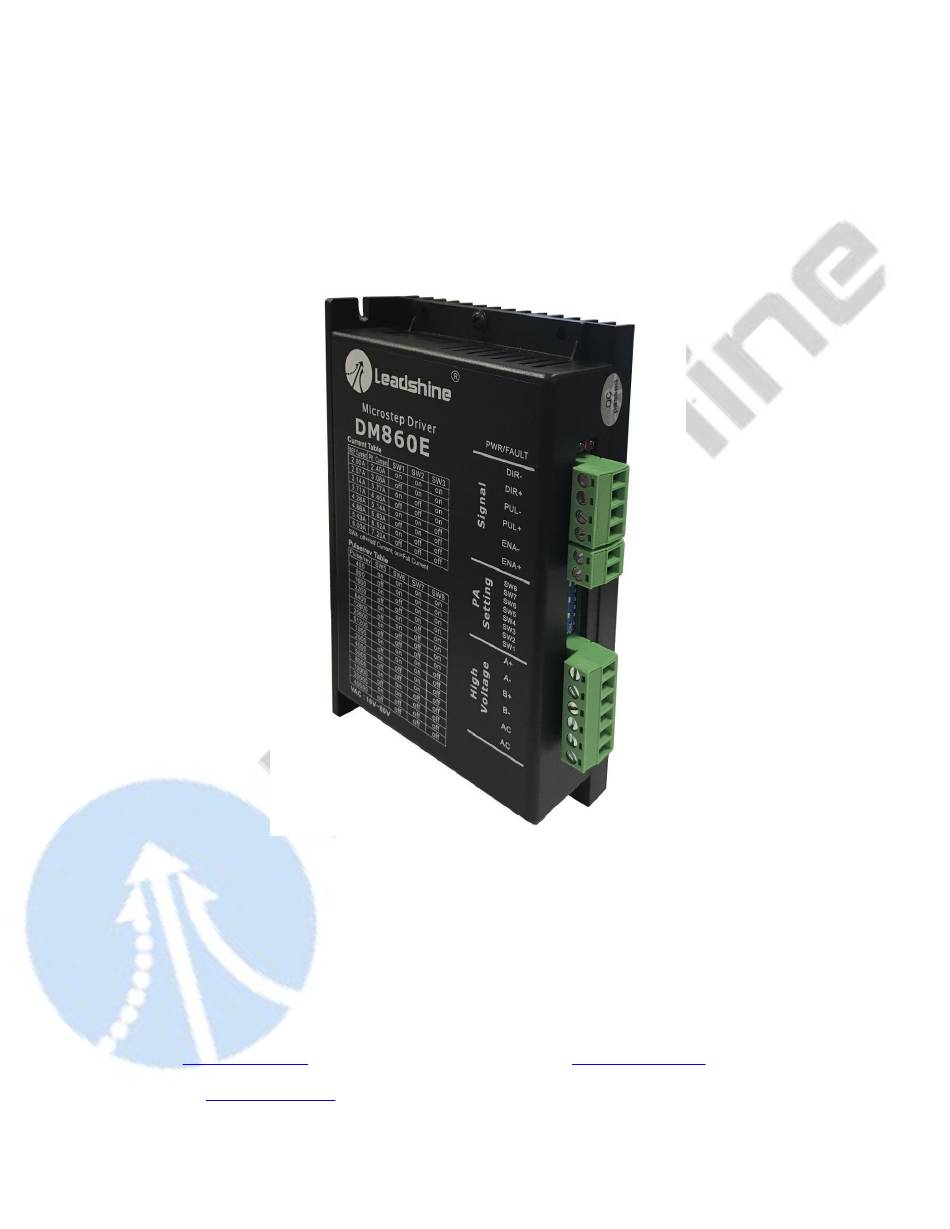

User Manual
DM860E
2-Phase Digital Stepper Drive
Revision 1.0
©2016 China Leadshine Technology Co., Ltd.
Address: Floor 11, Block A3, Nanshan iPark, Xueyuan Avenue 1001, Shenzhen, Guangdong, 518055, China
Tel: (86)755-26409254
Fax: (86)755-26402718
Web:
www.leadshine.com
Sales:
sales@leadshine.com
Support:
tech@leadshine.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM860E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leadshine DM860E

Summary of Contents for Leadshine DM860E

  • Page 1 User Manual DM860E 2-Phase Digital Stepper Drive Revision 1.0 ©2016 China Leadshine Technology Co., Ltd. Address: Floor 11, Block A3, Nanshan iPark, Xueyuan Avenue 1001, Shenzhen, Guangdong, 518055, China Tel: (86)755-26409254 Fax: (86)755-26402718 Web: www.leadshine.com Sales: sales@leadshine.com Support: tech@leadshine.com...
  • Page 2 Strictly adhere to the technical information regarding installation requirements. This manual is not for use or disclosure outside of Leadshine except under permission. All rights are reserved. No part of this manual shall be reproduced, stored in retrieval form, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise without approval from Leadshine.

  • Page 3: Table Of Contents

    DM860E Digital Stepper Drive User Manual Table of Contents 1. Introductions................................... 1 1.1 Features...................................1 1.2 Applications................................1 2. Specifications...................................1 2.1 Electrical Specifications............................1 2.2 Environment................................2 2.3 Mechanical Specifications............................2 2.4 Elimination of Heat..............................2 3. Connection Pin Assignments and LED Indication...................... 3 3.1 Connector P1 Configurations..........................

  • Page 4: Introductions

    1.2 Applications The DM860E stepper drive are designed to power 2 phase (1.8°) or 4-phase (0.9°) NEMA 23, 24, 34, and 42 hybrid stepper motors. It can be easily adopted in many industries (CNC, medical, automation, packaging…), such as X-Y tables, engraving machines, labeling machines, mills, plasma, laser cutters, pick and place devices, and so on.

  • Page 5: Environment

    Side mounting recommended for better heat dissipation 2.4 Elimination of Heat DM860E reliable working temperature should be < 60℃ (140°F)  It is recommended to use automatic idle-current mode to reduce motor heating. That means set the SW4 pin of ...

  • Page 6: Connection Pin Assignments And Led Indication

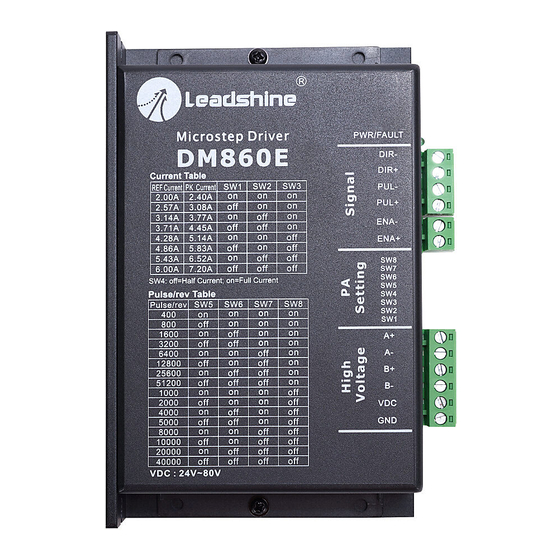

    3. Connection Pin Assignments and LED Indication The DM860E has two connector blocks P1&P2 (see above picture). P1 is for control signals connections, and P2 is for power and motor connections. The following tables are brief descriptions of the two connectors. More detailed descriptions of the pins and related issues are presented in section 4, 5, 9.

  • Page 7: Led Light Indication

    3.4 Internal Jumpers CN6 & CN7 There are two jumpers CN6 and CN7 inside the DM860E. The CN6 is for control type selection and the CN7 is for turning on/off internal-microstep. Internal-microstep is mainly used to reduce motor vibration, when the customer uses microstep 400 - 1600.

  • Page 8: Connections Of 6-Lead Motor

    DM860E Digital Stepper Drive User Manual inductance. The output current from drive that is multiply the specified phase current by 1.4 to determine the peak output current. Figure 4: 4-lead Motor Connections 5.2 Connections of 6-lead Motor Like 8 lead stepper motors, 6 lead motors have two configurations available for high speed or high torque operations.

  • Page 9: Series Connection

    6. Power Supply Selection The DM860E can power medium and large size stepper motors (frame size from NEMA 23 to 42) made by Leadshine or other motor manufacturers. To get good driving performances, it is important to select supply voltage and output current properly.

  • Page 10: Power Supply Sharing

    6.2 Power Supply Sharing Multiple DM860E drives can share one power supply to reduce cost, if that power supply has enough power capacity. To avoid cross interference, connect each stepper drive directly to the shared power supply separately. To avoid cross interference, DO NOT daisy-chain connect the power supply input pins of the Drivers.

  • Page 11: Output Current Configurations

    The current automatically reduced to 50% of the selected dynamic current 0.4 second after the last pulse. 7.3 Automatic Motor Matching & Self Configuration When powered on a DM860E will automatically configure itself with the best settings to match the driven stepper motor for optimal performance. No action is needed.

  • Page 12: Typical Connection

    DM860E Digital Stepper Drive User Manual recommended instead of daisy-chaining.  It is prohibited to pull and plug connector P2 while the drive is powered ON, because there is high current flowing through motor coils (even when motor is at standstill). Pulling or plugging connector P2 with power on will cause extremely high back-EMF voltage surge, which may damage the drive.

  • Page 13: Protection Functions

    DM860E Digital Stepper Drive User Manual Remark: t1: ENA must be ahead of DIR by at least 5s. Usually, ENA+ and ENA- are NC (not connected). See “Connector P1 Configurations” for more information. t2: DIR must be ahead of PUL effective edge by 5s to ensure correct direction;...

  • Page 14: Troubleshooting

    DM860E Digital Stepper Drive User Manual 12. Troubleshooting In the event that your drive doesn’t operate properly, the first step is to identify whether the problem is electrical or mechanical in nature. The next step is to isolate the system component that is causing the problem. As part of this process you may have to disconnect the individual components that make up your system and verify that they operate independently.

  • Page 15: Warranty

    Leadshine Technology Co., Ltd. warrants its products against defects in materials and workmanship for a period of 12 months from shipment out of factory. During the warranty period, Leadshine will either, at its option, repair or replace products which proved to be defective.
