AT91CAP7A-STK
for CAP Customizable Microcontroller
The CAP™ Starter Kit is the ideal vehicle for low-cost, no-risk evaluation of the customization capabilities
of Atmel's CAP microcontroller. It is intended to familiarize the user with the CAP concept and architecture,
and is an ideal vehicle for students of electronic engineering to consolidate their knowledge of system-
on-chip design, both hardware and software.
CAP comprises a microcontroller-based system-on-chip with ARM
standard interfaces, together with a Metal Programmable (MP) Block for application-specific functions.
The CAP Starter Kit facilitates the mapping of application-specific IP blocks into its FPGA that
emulates the functionality of the CAP MP Block, while at the same time providing
a development platform for software for the ARM processor. This enables the
hardware and software of simple applications, or modules of more complex
applications, to be tested at close to operational speed.

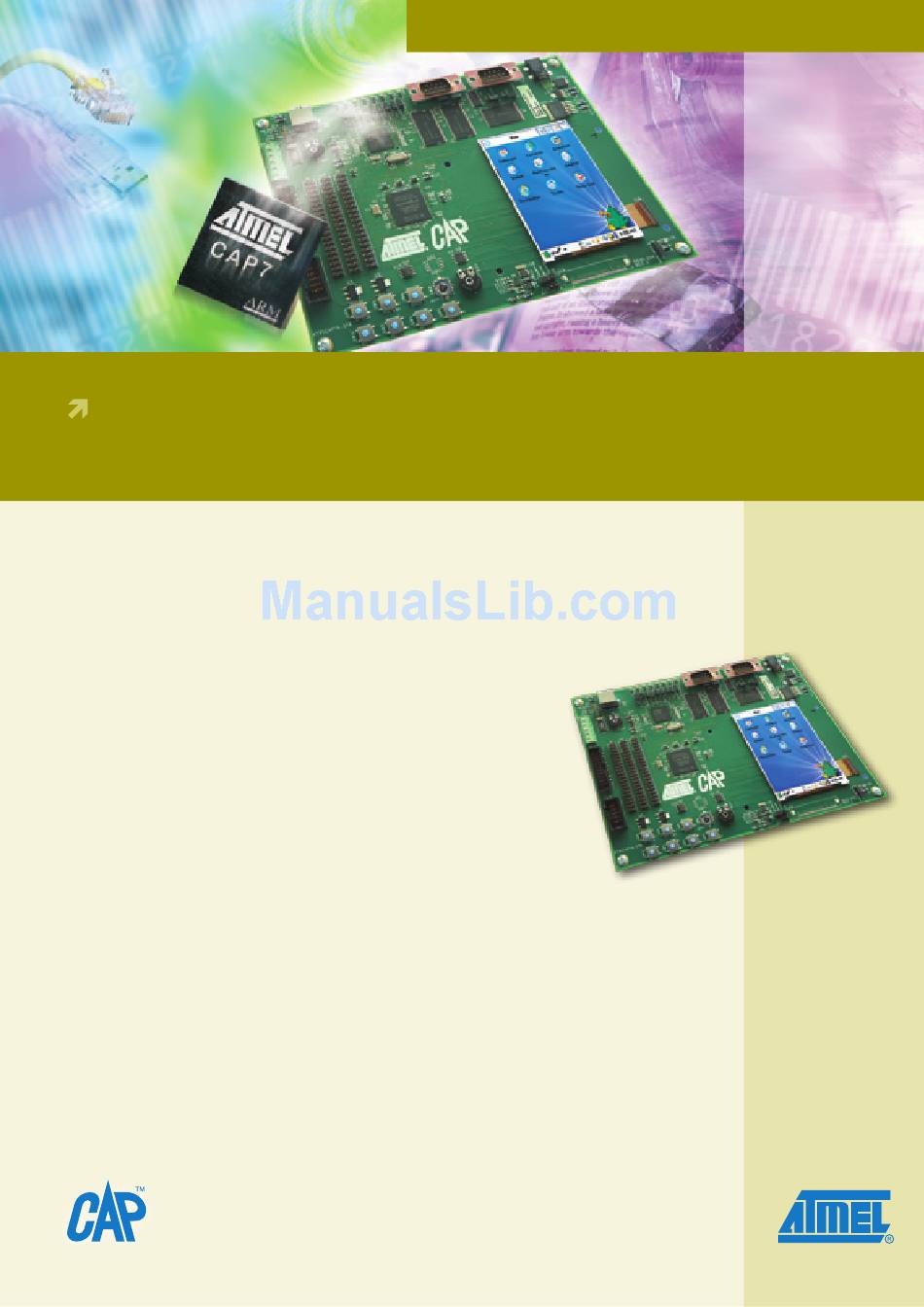

CAP Starter Kit Board
The AT91CAP7A-STK Starter Kit is built on a single PCB, including:
n
®
AT91CAP7E ARM7TDMI
Microcontroller System-On-Chip
n
64M Bytes SDRAM Memory, 3.3V
n
256M Bytes NAND Flash, 3.3V
n
Altera
®
Cyclone
®
II EP2C8F256C7N (256BGA)
n
Altera Configuration PROM -EPCS4SI8N
n
40-Lead Extension Connector (x3) for I/O
Access
n
2.8 inch TFT Color LCD
n
Two Serial Ports (One Connected to the CAP7
Debug Unit)
n
One USB 2.0 Full Speed Device Port
n
Mini Joy Stick
Starter Kit
®
n
-Based
n
n
n
n
n
n
n
n
n
n
n
CAP
CUSTOMIZABLE MICROCONTROLLERS
TM
®
processor, memories, peripherals and
Four Analog Inputs
Light Sensor
Temperature Sensor
Voltage Potentiometer
Voltage Regulators (1.2V, 2.5V and 3.3V)
Access Points for CAP7 Power Measurements
Eight LED's Four Push Buttons
JTAG ICE Connector (CAP7)
JTAG ISP Connector (FPGA)
POR Circuit for FPGA
POR Circuit for CAP7
50 MHz OSC
