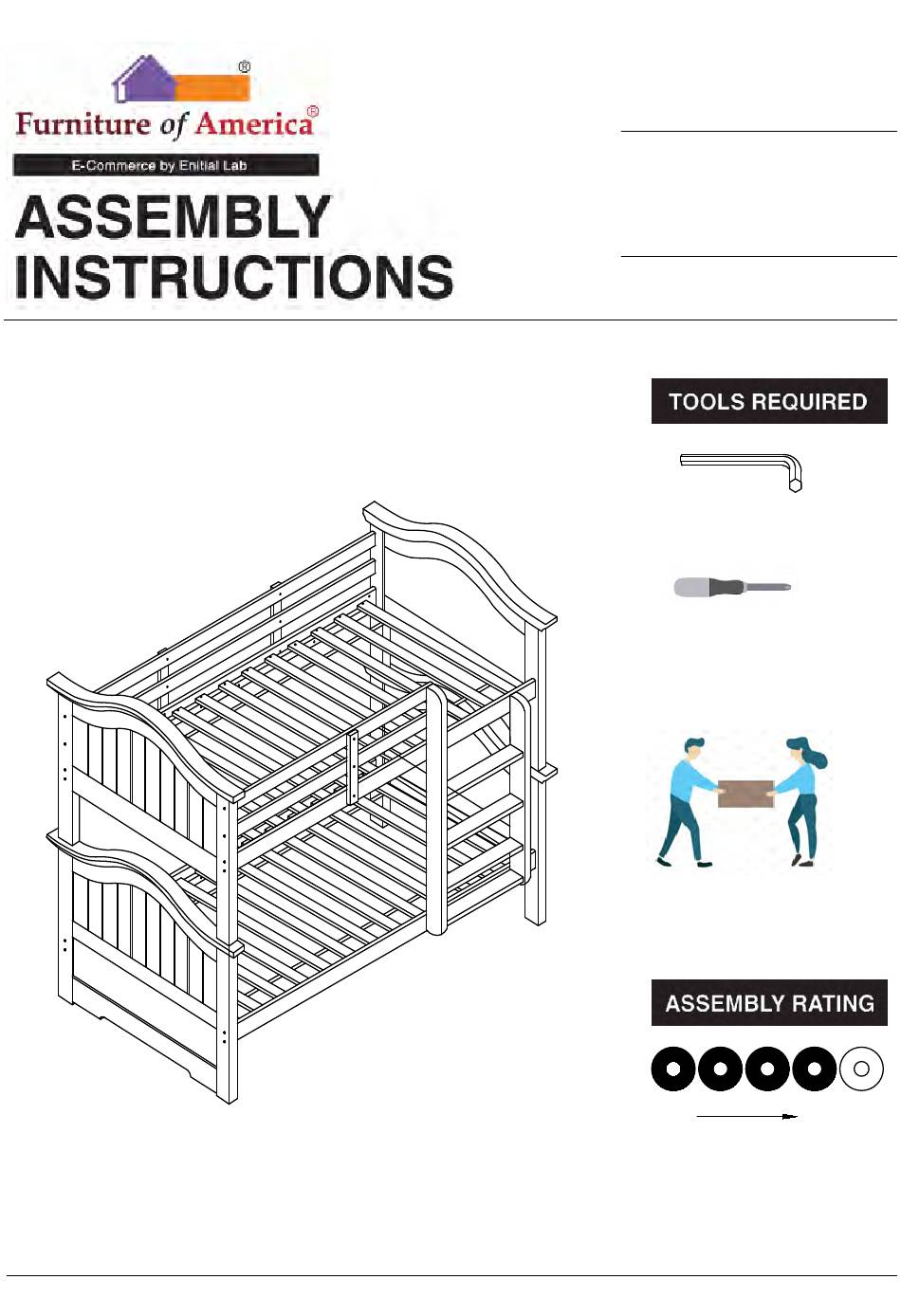

VERSION # 20-03-2 8
1 / 12
MODEL #
CM-BK635
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK635
Summary of Contents for Furniture of America CM-BK635
- Page 1 MODEL # CM-BK635 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 2...
- Page 5 BUNKBED CM-BK635 #1 1pc #2 1pc #3 1pc #4 1pc Upper End Guardrail Upper End Guardrail Lower End Guardrail Lower End Guardrail #5 1pc #6 1pc #8 1pc #7 1pc Upper Back Side Rail Upper Front Side Rail Lower Back Side Rail...
- Page 6 #B 6pcs #A 16pcs #C 9pcs #D 16pcs Bolt Ø1/4" x 1-1/4" Bolt Ø1/4" x 1-5/8" Bolt Ø1/4" x 3-3/8" Nut Ø1/4" #H 12pcs #E 8pcs #F 6pcs #G 4pcs Screw Ø1/4" x 2" Screw Ø1/4" x 3-1/8" Metal Dowel Ø9 x 3-1/2" Wood Dowel Ø10 x 40mm #I 52pcs...
- Page 7 CM-BK635 is packed in 3 cases Carton Disignation Part Hardware CM-BK635-3 Upper End Guardrail #A x 16pcs Upper End Guardrail CM-BK635-1 #B x 6pcs Lower End Guardrail #C x 9pcs Lower End Guardrail #D x 16pcs Lower Front Side Rail...
- Page 8 ASSEMBLY INSTRUCTIONS Part #3 x1pc Part #4 x1pc Part #5 x1pc Part #6 x1pc Hardware #A x8pcs Hardware #D x8pcs Insert nuts (#D) to the side holes of the lower side rails (#5,6). Align lower side rails (#5,6) to the holes of the lower guardrails (#3,4), then secure by tightening bolts (#A) onto nuts (#D).
- Page 9 ASSEMBLY INSTRUCTIONS Part #12 x3pcs Hardware #C x9pcs Align guardrail supports (#12) to the guardrails, then secure by using screws (#C). Place metal dowels (#G) onto the holes on top of lower end guardrails (#3,4), then carefully align upper end guardrails (#1,2) to Hardware #G x4pcs lower end guardrails (#3,4).
- Page 10 ASSEMBLY INSTRUCTIONS Part #13 x1pc Part #14 x1pc Part #15 x4pcs Hardware #E x8pcs Align ladder rungs (#15) to the ladder rails (#13,14), then secure by using screws (#E). Align slat kits (#11) to the bunk beds, then secure by using screws (#I).
- Page 11 ASSEMBLY INSTRUCTIONS Hardware #B x6pcs Align ladder to the bunk bed, then secure by using bolts (#B). 11 / 12...
- Page 12 12/12...
