VERSION # 20-01-10
1 / 21
MODEL #
CM-BK611
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK611
Summary of Contents for Furniture of America CM-BK611

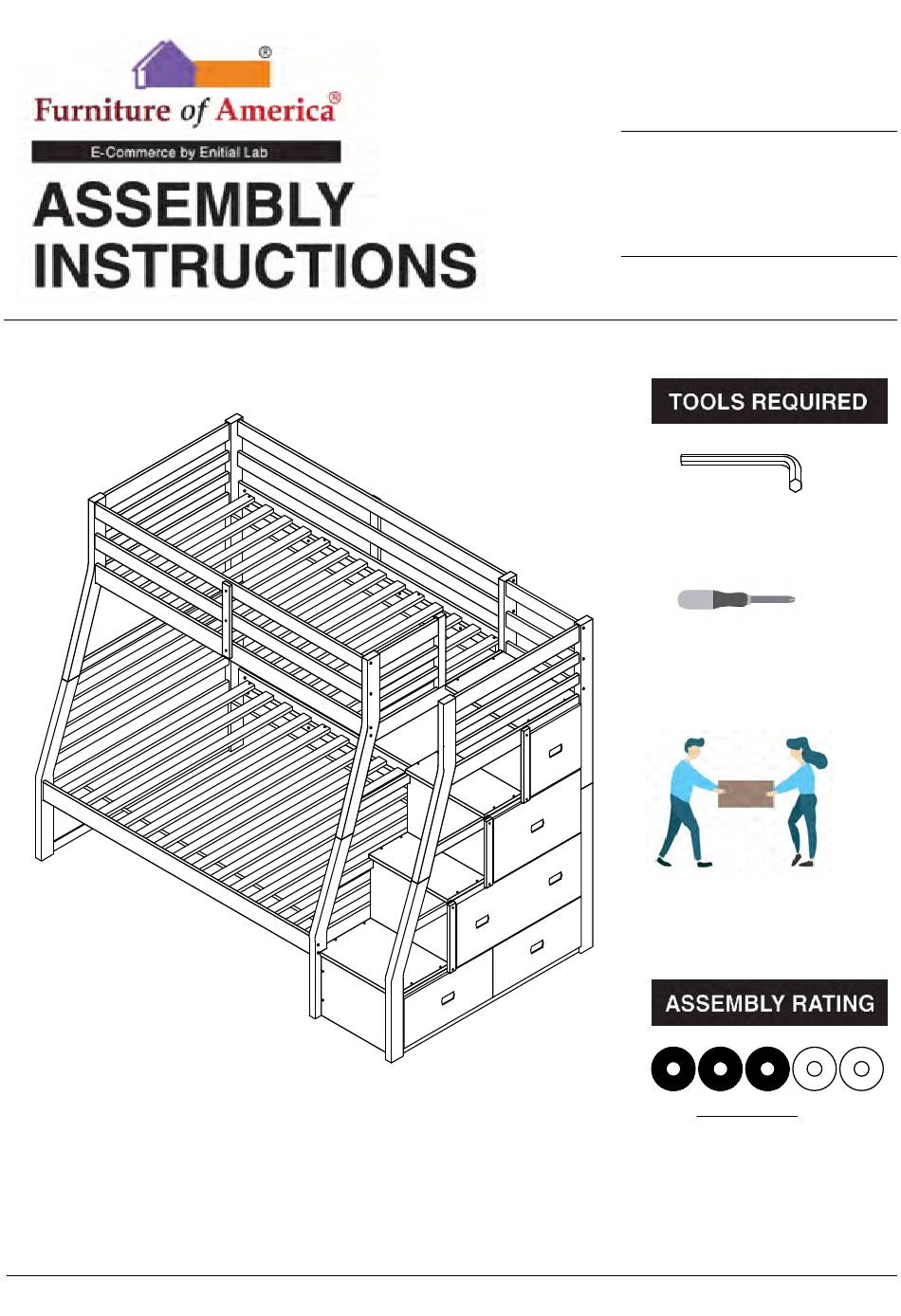

- Page 1 MODEL # CM-BK611 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 2 1...
- Page 5 DAYBED CM-BK611 #1 1pc #2 1pc #3 1pc #4 1pc Lower End Upper End Lower End Upper End Guardrail Guardrail Guardrail Guardrail #5 1pc #6 1pc #7 4pcs #8 4pcs Lower End Upper End Upper/Lower Back/Front Guardrail Guardrail Side Rail...
- Page 6 #17 2pcs #18 1pc #19 1pc #20 1pc Cha Foot Plate Front Board Front Board Cha Foot Plate #21 1pc #22 3pcs #23 3pcs #24 1pc Right Board Left Board Bottom Board Front Board #25 1pc #26 1pc #27 1pc #28 1pc Bottom Board Back Board...
- Page 7 #D 12pcs #A 16pcs #B 14pcs #C 16pcs Bolt Bolt Screw Barrel Nut Ø1/4" x 2-1/8" Ø1/4" x 3-1/2" Ø1/4" x 3" Ø1/4" x 1/2" #H 41pcs #E 10pcs #F 27pcs #G 40pcs Bolt Screw Screw Screw Ø1/4" x 1-3/16" #4 x 30mm #3 x 15mm #4 x 25mm...
-
Page 8: Exploded View
Exploded View #19,#22 #23,#24 #20,#22 #23,#25 #21,#22 #23,#26,#29 #30,#31 #32,#33,#34 8 / 21... - Page 9 CM-BK611 is packed in 3 cases Carton Disignation Part Hardware Lower End Guardrail #1 Upper End Guardrail #2 Lower End Guardrail Upper End Guardrail Lower End Guardrail CM-BK611-1 Upper End Guardrail Right Board Left Board Back Board #A x 16pcs...
- Page 10 CM-BK611 is packed in 3 cases Carton Disignation Part Hardware CM-BK611-2 Wood Connection Back Guardrail Cha Foot Plate Cha Foot Plate Cha Foot Plate Cha Foot Plate Cha Foot Plate Cha Foot Plate Front Board Front Board Front Board Bottom Board...
- Page 11 CM-BK611 is packed in 3 cases Carton Disignation Part Hardware Back Plane Scroll Bar CM-BK611-3 Scroll Bar 11 / 21...
- Page 12 ASSEMBLY INSTRUCTIONS Align side rails (#7) to lower end guardrails (#1,3), then secure by using bolts (#A) onto barrel nuts (#C). Part #1 x1pc Part #3 x1pc Part #7 x2pcs Hardware #A x8pcs Hardware #C x8pcs 1. Insert a wood dowel (#K) into the bottom holes along the ends of the guardrails (#8), then insert those ends into the holes along the sides of the end guardrails (#2,4).
- Page 13 ASSEMBLY INSTRUCTIONS Align the guardrail support (#12) to the center holes along the side rails (#7) and guardrails (#8), then insert 3 screws (#F) into each. Secure using a Phillips screwdriver. Part #12 x2pcs Hardware #F x6pcs Hardware #J x4pcs Insert the metal dowels (#J) into the holes along the top of the bottom bed, then...
- Page 14 ASSEMBLY INSTRUCTIONS 2. Insert bolts (#D) into the holes along the sides of (#16,17). Secure using the Allen wrench (#M). Part #13 x1pc Part #15 x2pcs Part #16 x1pc Part #17 x2pcs Hardware #D x6pcs Hardware #E x2pcs 1. Align the foot plates as displayed.
- Page 15 ASSEMBLY INSTRUCTIONS 1. Insert a wood dowel (#K) into the bottom holes along the ends of the back guardrails (#9), then insert those ends into the holes along the side of the end guardrails (#4). Insert the screws (#B) into each end. Secure using the Allen wrench. Part #9 x3pcs Part...
- Page 16 ASSEMBLY INSTRUCTIONS Place the scroll bars (#O), then insert a screw (#P) into each end. Secure using a Phillips screwdriver. Hardware #F x5pcs Hardware #O x5pcs Hardware #P x5pcs Hardware #H x10pcs Hardware #R x5pcs Place iron basin (#R) to the back of each scroll bar (#O). Secure with screws (#H).
- Page 17 ASSEMBLY INSTRUCTIONS #27,#28 #29,#34 Part #27 x1pc Part #28 x1pc Part #29 x1pc Part #34 x2pcs Hardware #G x20pcs Align (#27,28,39,34) to the back of the drawers, then insert the screw (#G) into each hole. Secure using a screwdriver. Place the scroll bars (#N) onto the bottom of the drawers and align the holes.
- Page 18 ASSEMBLY INSTRUCTIONS #24,#25,#26,#33 #22,#31 #27,#28,#29,#34 #23,#32 #19,#20,#30 Part #37 x1pc Part #38 x1pc #38 #39 Part #39 x1pc Part #40 x1pc Hardware #H x26pcs Align (#37,38,39,40), then insert the screws (#H) into the holes. Secure using a screwdriver. 18 / 21...
- Page 19 ASSEMBLY INSTRUCTIONS Align the wood connection (#35) to the top step and wood connections (#36) to the other two. Insert 2 bolts (#E) into each. Secure using the Allen wrench (#M). Part #35 x1pc Part #36 x2pcs Hardware #E x6pcs Insert the drawers accordingly.
- Page 20 ASSEMBLY INSTRUCTIONS Place the twin slat kit (#11) onto the top bunk. Insert the screws (#F) into each hole and secure using Part #10 x1set a Phillips screwdriver Part #11 x1set Hardware #F x16pcs Place the full slat kit (#10) onto the bottom bunk.
- Page 21 2 1 / 21...
