π

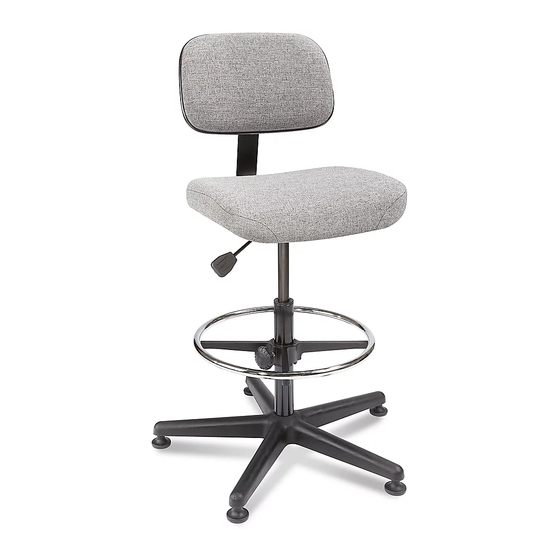

WORK STOOL
Back Cushion x 1
1.
Insert glides into legs of five-star base. Turn base
upright. Insert gas lift into center of base.
(See Figure 1)
Figure 1
Base
Glide
PAGE 1 OF 2
1-800-295-5510
uline.com
Back Cushion Post x 1
Gas Lift x 1
Gas Lift
PARTS
Seat Cushion x 1
5-Star Base x 1
ASSEMBLY
2. Slide footring onto the gas lift and tighten knob to
secure. (See Figure 2)
Figure 2
Footring x 1
Glide x 5
Footring
Knob
Gas Lift
0521 IH-1376
Advertisement
Related Manuals for U-Line H-1376
Summary of Contents for U-Line H-1376
- Page 1 π 1-800-295-5510 uline.com WORK STOOL PARTS Back Cushion x 1 Back Cushion Post x 1 Seat Cushion x 1 Footring x 1 Gas Lift x 1 Glide x 5 5-Star Base x 1 ASSEMBLY Insert glides into legs of five-star base. Turn base 2.
- Page 2 ASSEMBLY CONTINUED STOOL ADJUSTMENTS 3. Loosen knob on mechanism on bottom of seat cushion. Insert back cushion post into corresponding slot on mechanism and tighten knob to secure. (See Figure 3) Figure 3 Back Cushion Post Seat Cushion Knob 4. Align back cushion with post and use knob to attach loosely through slot.
