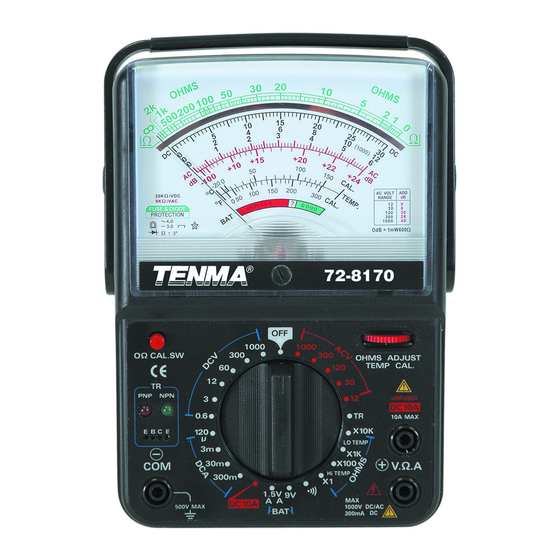

- Page 1 Model 72-8170 Analog Volt/Ohm Meter INSTRUCTION MANUAL Tenma Test Equipment www.tenma.com...
-
Page 2: Controls And Functions
Controls and Functions (1) Zero calibration adjustment (2) Range selector (3) 10A input terminal (4) (+) probe input (5) (–) probe input (6) Transistor input terminals (7) Calibration pushbutton (8) Indicator pointer (9) Carry handle/stand Specifications Function Measurement Ranges Accuracy Remarks 0.6V, 3.0V, 12V, 60V and 300V ±3% full scale... - Page 3 Tips for Use • This manual should be read thoroughly before use and kept for future reference. • Make certain that the red lead is connected to the (+) input terminal, and the black lead is connected to the (–) input terminal. •...
- Page 4 must be part of the circuit to be measured. • Read the value on the topmost DC scale. Note that full 10A measurement will register as “10” on this scale, and not provide a full scale reading. • Important Note: Measurements in excess of 5A should not be done for periods in excess of 20 seconds.
- Page 5 Add dB Battery test • Connect the red lead to the (+) VΩA input. • Connect the black lead to the (–) COM input. • Select the proper range for the type of battery to be used. • For “AAA”, “AA”, “C” and “D” type batteries, select the 1.5V range. •...
- Page 6 Replace the rear housing and reinstall the screws. • Important Note: Replacement of the fuses is seldom required. A blown fuse is always a direct result from improper meter use. Tenma Test Equipment 405 S. Pioneer Blvd. Springboro, Ohio 45066 www.tenma.com...
- Page 7 Largest Supplier of Electrical and Electronic Components Click to view similar products for manufacturer: Tenma Other Similar products are found below : 76-096 21-10156 BC0019213 76-355 CBB018722 76-1564 A1170 72-14500 72-14530 EU 72-13668 72-13686 72-13736 72-13742 72- 13798 72-13818 72-13822 72-13824 72-13836 72-13858 72-13950 72-14090 72-14096 72-14112 72-14228 72-14300 72-14302 21-10164...
