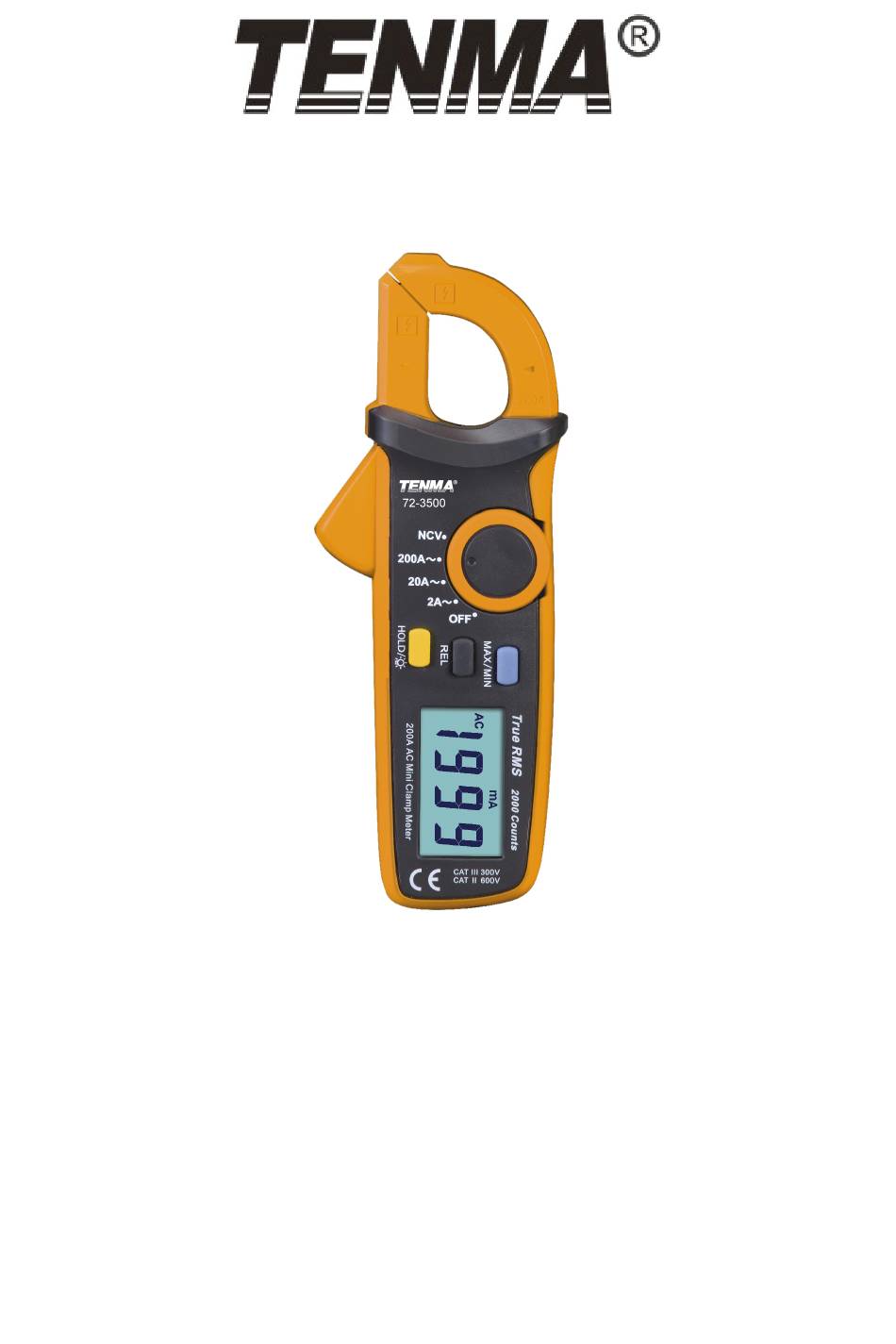

- Page 1 MINI CLAMP METER Model: 72-3500...
-
Page 2: Table Of Contents
CONTENTS Page Number Details What’s Included Important Safety Information General Overview Product Overview Operation NCV Non-Contact Electric Field Measurement Other Functions Technical Specification Maintenance & Repair Replacing the Batteries WHAT’S INSIDE • Mini clamp meter • User manual • Two 1.5V AAA batteries IMPORTANT SAFETY INFORMATION •... -
Page 3: General Overview
GENERAL OVERVIEW 1. Maximum overload protection for clamp head terminal: 200A 2. Maximum display: 2000 counts, update 2-3 times per second. Over range display: “OL” Work temperature: 0°C to 40°C Relative humidity: 0°C to 30°C, 75%, 30°C to 40°C, 50% Storage temperature: -10°C to 50°C 3. -
Page 4: Lcd
Symbol Details Symbol Details True valid value TRMS Ω kΩ MΩ Resistance unit measurement status AC/DC voltage AC/DC mV, V Voltage unit measurement Negative reading mA, A Current unit Non contact AC voltage (EF) NCV Diode measurement induction Auto Circuit on-off measurement Auto range ZERO/REL Zero/relative measurement Data hold... -
Page 5: Ncv Non-Contact Electric Field Measurement
NCV NON-CONTACT ELECTRIC FIELD MEASUREMENT • If you wish to measure whether there is AC voltage or electromagnetic field, place the front end of the clamp head 8~15mm close to the test piece. • Analogue quantity of inductive AC voltage is about ≤... -
Page 6: Technical Specification
TECHNICAL SPECIFICATION Accuracy: ± (a% reading + b word count), warranty period is one year. Environment temperature: 23°C ± 5°C (73.4°F ± 9°F) relative humidity ≤ 75%. ACA Measurement Range Resolution Accuracy 2.000A ± (4% + 30) 20.00A 10mA ± (3% + 10) 200.0A 100mA ±...
