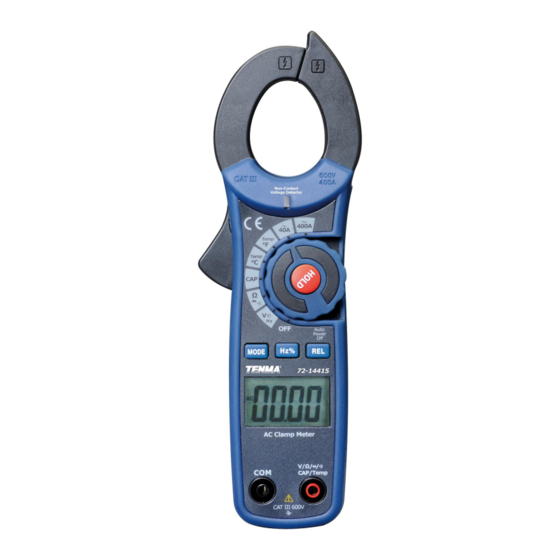

Tenma 72-14415 User Manual

Tenma 72-14415 User Manual

Ac clamp meter

Advertisement

Quick Links

TM

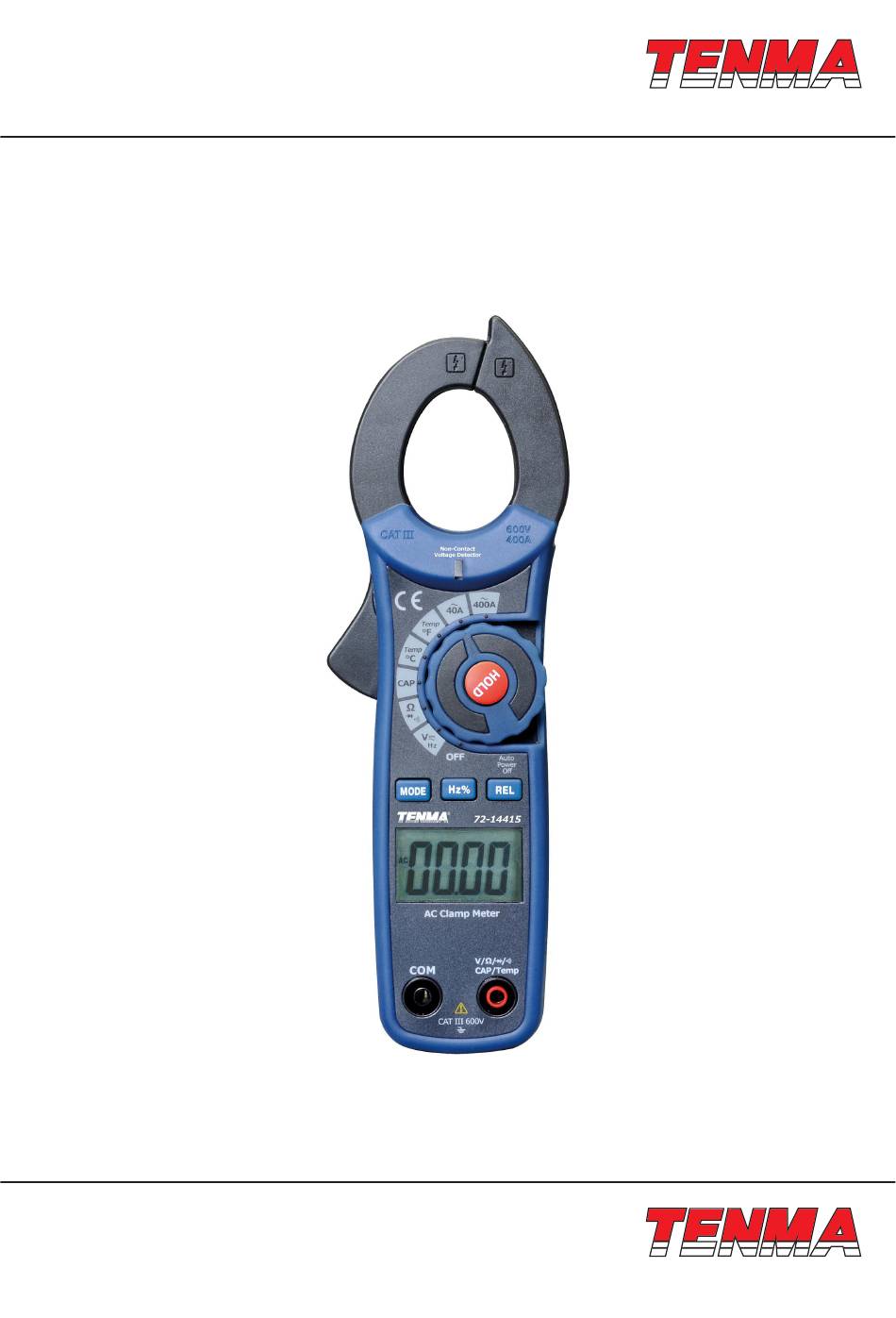

AC Clamp Meter
User Manual
Part Number: 72-14415
www.element14.com
TM
www.farnell.com
www.newark.com
www.cpc.co.uk
Page <1>
08/03/19
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 72-14415 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tenma 72-14415

  • Page 1 AC Clamp Meter User Manual Part Number: 72-14415 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 08/03/19 V1.0...
  • Page 2: Safety Notes

    Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present Double insulation Safety Notes •...
  • Page 3: Meter Description

    Input Limits Function Maximum Input Frequency, Resistance, Diode, 600V DC/AC Continuity , Capacitance Test Temperature (°C/°F) 600V DC/ AC Meter Description 1. Current clamp 2. Non-contact AC voltage indicator light 3. Clamp trigger 4. Data Hold button 5. Rotary Function swith 6.
  • Page 4: Specifications

    Specifications Function Range & Resolution Accuracy (% of reading) 40.00AAC ±(2.5 % + 8 digits) AC Current (50/60Hz) 400.0 AAC ±(2.8 % + 8 digits) 400.0mV DC ±(0.8% + 2 digits) 4.000V DC DC Voltage 40.00V DC ±(1.5% + 2digits) 400.0V DC 600.0V DC ±(2 % + 2 digits)
  • Page 5: Operation

    Operating Altitude. 7000ft. (2000meters) maximum. Over voltage Category III 600V Battery Two “AAA” 1.5V Battery Auto OFF approx. 30 minutes Dimensions/Weight 200x66x37mm / 205g Safety  F orindooruseandinaccordancewithOvervoltageCategoryII,PollutionDegree2.Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Cat.
  • Page 6: Mode Button

    Capacitance Measurements WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any capacitance measurements. Remove the batteries and unplug the line cords. 1.SettherotaryfunctionswitchtotheCAPposition. 2. Insert the black test lead banana plug into the negative (COM) jack. Insert the red test lead banana plug into the positive (V) jack.
  • Page 7: Rel Button

    Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. TenmaistheregisteredtrademarkoftheGroup.©PremierFarnellLimited2016. www.element14.com www.farnell.com...
