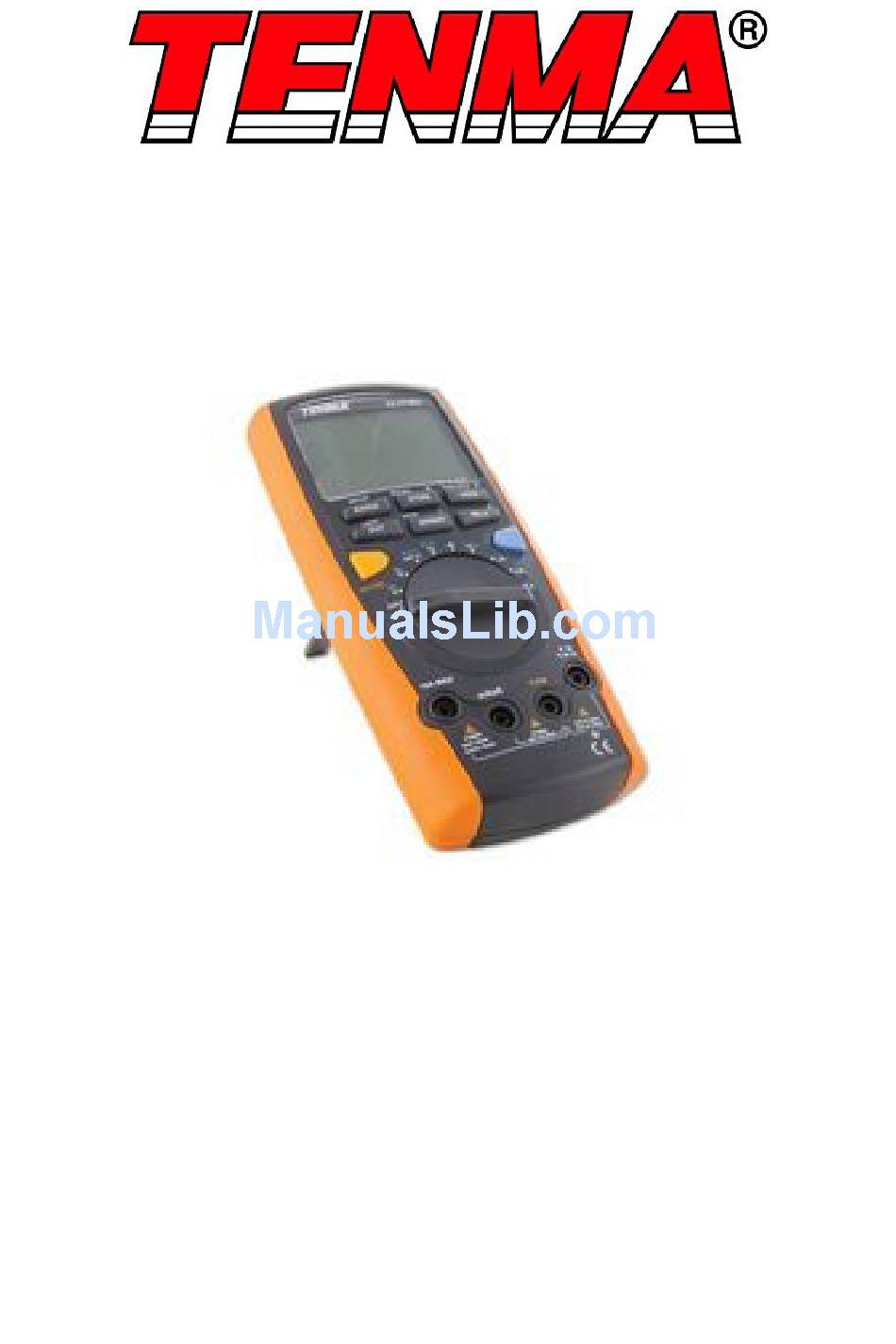

- Page 1 Pocket Size Digital Multimeter with USB Model: 72-7730A & 72-7732A...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. This instrument is designed & manufactured in compliance with: G84793, lEC61010-1, CAT III 600V, & CAT IV 1000V Pollution Degree 2 and Double Insulation standards. •... -
Page 3: Display Backlight
OVERVIEW LCD display Function buttons. Range selector. Input terminals. Automatic Power Off • The display blanks and the meter goes into sleep mode after a 10 minute period of inactivity. • While in Sleep mode, pressing the blue button or turning the range selector will reactivate the meter. -
Page 4: Function Buttons
Function buttons • The buttons activate features that augment the function selected with the range selector. • Press the button once to access the main feature (e.g. STORE). • To access the first additional feature of the button (e.g. RECALL), press and hold the button for over 1 second. - Page 5 Button Description Access Method Press to exit certain button functions and the Press the button once. meter will return to the factory default setting. Press to turn the backlight on. It is possible to EXIT switch between 1st and the 2nd backlight level and Exit the feature by pressing Press and hold the button for this button.
- Page 6 Function Primary Display Right Secondary Display Left Secondary Display The tested DC voltage value No display Full range: 4, 40, 400, 1000 The tested frequency value: The tested AC voltage value Full range: 4, 40, 400, 1000 45.00Hz~ 100.0kHz DCmV The tested DCmV value No display Full range: 400...
-
Page 7: Operation
Analog Bar Graph • The bar graph provides an analog indication of the measured input. For most measurement functions, the bar graph updates 10 times per second. • Using MAX MIN • The MAX MIN mode stores minimum (MIN) and maximum (MAX) input values. When the input goes below the stored minimum value or above the stored maximum value, the meter beeps and stores the new value. -
Page 8: Measuring Current
Measuring Current • To measure AC or DC current proceed as follows: Turn off power to the circuit. Discharge all high- voltage capacitors. Insert the red test lead into the mAµA or A terminal and black test lead into the COM terminal. - Page 9 • When testing the resistance signal from the calibrator, it is necessary to press and hold the RANGE while turning on the meter to change the maximum display to 4000 counts but the accuracy remains unchanged. • When resistance measurement has been completed, disconnect the test leads from the circuit under test and remove test leads from the input terminals of the meter.
-
Page 10: Measuring Capacitance
Measuring Capacitance • To ensure accuracy, the meter will first internally discharge the capacitor under test. DIS.C will show on the display. Depending upon the size of the capacitor and the amount of discharge required, this process may take some time. •... - Page 11 Measuring Temperature Note: Do not apply voltage to the test leads when the meter is in temperature measuring mode. Set the range selector to F, the display shows OL. Short circuit the test leads to show the room temperature. The meter is default to Celsius degree unit, you can change units by press the BLUE button once you have selected the temperature function.
- Page 12 If there is no interval time set to store the reading, each press of STORE increments the reading by one index number. • The maximum number of stored reading is 100 (for 72-7730A) and 9999 (for 72- 7732A) When the stored readings memory is full, the meter will stop storing data. •...
-
Page 13: Battery And Fuse Replacement
Factory Selection Option Description Default Max. 40,000 (model 72-7732A), Max. 20,000 (model 72-7730A) Over the upper limits, HIGH Press◄ to select off beeps intermitently Press ►to select the digit you want to edit. Max. 40,000 (model 72-7732A), Max. 20,000 (model 72-7730A) Over the upper limits, Press◄... -
Page 14: Specifications
340g incl battery Range Auto Polarity Auto Tri digital display:Primary 40,000 counts (Model 72-7732A), 20,000 counts (Model 72-7730A) Left Secondary: 4000 counts (Model 72-7732A), 2000 counts (Model 72-7730A) Right Secondary: 4000 counts (Model 72-7732A), 2000 counts (Model 72-7730A Analogue bar graphh... - Page 15 0~400MHz Temperature C~1000 C(-40 F~1832 STORE Readings Up to 100 readings for 72-7730A or 9999 reading for 72-7732A may be saved by the user in a memory. These readings may be viewed by using Recall feature. DC Voltage Range Accuracy...
- Page 16 When frequency is lower than 100kHz, the accuracy guarantee range 10% -100% • For AC+DC measurement, add (1%-35 digits) of reading based on above table. DC Current Range Accuracy Resolution Overload Protection 72-7730A 72-7732A 72-7730A 72-7732A 200μA 400μA 0.01μA ±(0.1%+15) 2000μA 4000μA...
- Page 17 Resistance Range Accuracy Resolution Overload Protection 72-7730A 72-7732A 72-7730A 72-7732A 200Ω 400Ω 0.01Ω ±(0.4%+20) ±(3%+8) +test leads +test leads OC value OC value 2kΩ 4kΩ 0.0001kΩ ±(0.4%+20) ±(3%+8) 1000V 20kΩ 40kΩ 0.001kΩ 200kΩ 400kΩ 0.01kΩ ±(0.8%+20) ±(0.5%+20) 2mΩ 4mΩ 0.0001mΩ...
- Page 18 Frequency Range Accuracy Resolution Overload Protection 72-7730A 72-7732A 72-7730A 72-7732A 20Hz 40Hz 0.001Hz 200Hz 400Hz 0.01Hz 2kHz 4kHz 0.0001kHz ±(0.1%+15) ±(0.01%+8) 1000V 20kHz 40kHz 0.001kHz 200kHz 400kHz 0.01kHz 2mHz 4mHz 0.0001mHz 20mHz 40mHz 0.001mHz 200mHz 400mHz 0.01mHz Not specified Not specified Input amplitude ‘a’...
- Page 19 4~20mA Loop Current Range Resolution Accuracy Overload Protection 0.5A,1000V, fast type (4~20mA) % 0.01% (1%+50) ± fuse, 6.3x32mm When the readings obtained is: • < 4mA, the primary display shows LO • 4mA, the primary display shows 0%..• 20mA, the primary display shows 100% •...
- Page 20 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT These symbols indicate that separate collection of Waste Electrical and Electronic Equipment (WEEE) or waste batteries is required. Do not dispose of these items with general household waste. Separate for the treatment, recovery and recycling of the materials used. Waste batteries can be returned to any waste battery recycling point which are provided by most battery retailers.
