Summary of Contents for Tenma 72-7712

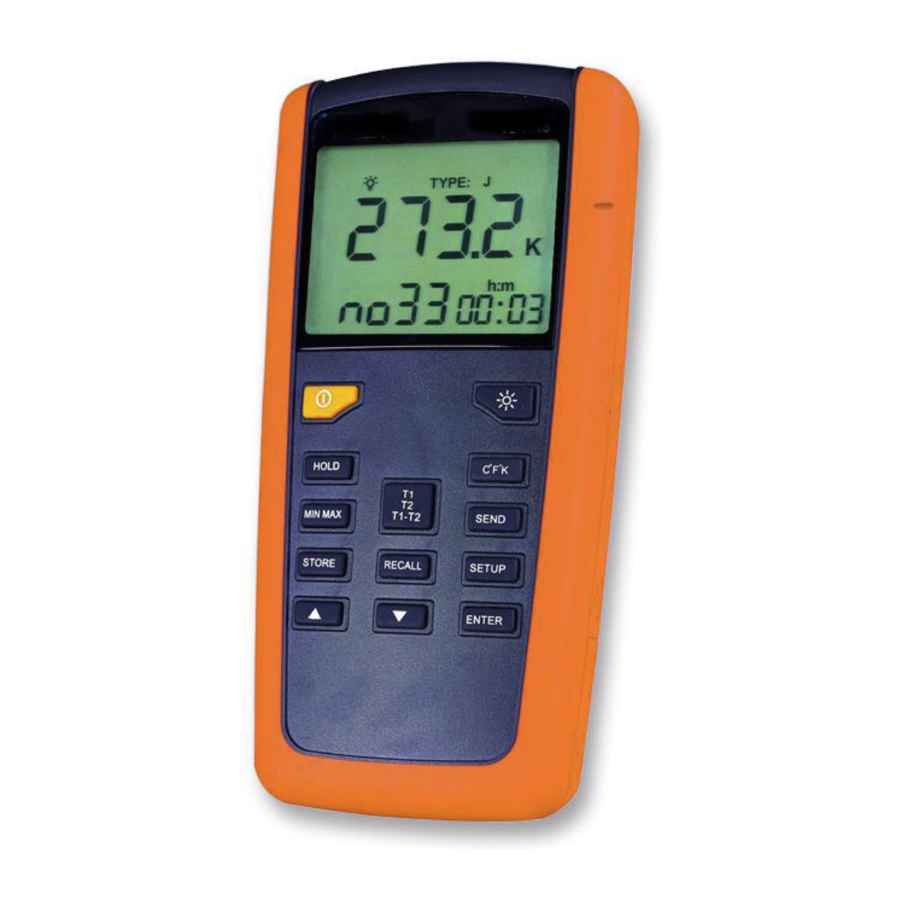

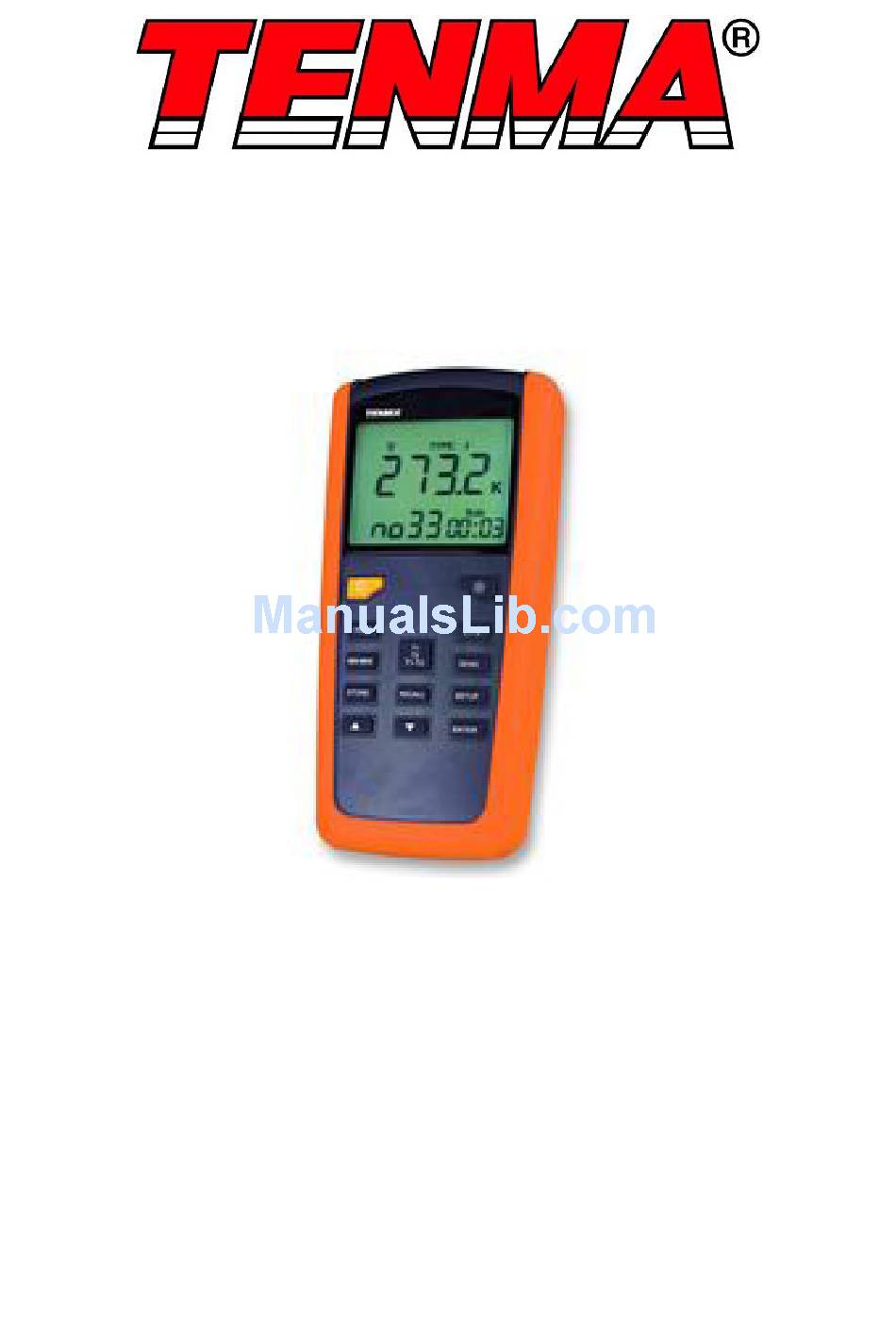

- Page 1 Thermocouple Digital Thermometer Model: 72-7712 and 72-7715...
- Page 2 To prolong battery life turn off the Thermometer after use. WHAT’S INCLUDED • Digital Thermometer • (72-7712) thermocouple K- J- T- & E- type leads. • (72-7715) thermocouple K- J- T- E- R- S- & N- type leads. • 9V 6F22 Alkaline Battery (included) •...
- Page 3 Setup is in progress when the icon blinks Display readings of maximum, minimum and average USB connected. Logged readings are displayed when the icon blinks. Low battery. The thermocouple type The temperature units Time display Under Calibration mode when the icon blinks. The displayed reading is fixed. 10.
-
Page 4: Logging Interval
OPERATION FUNCTION Thermocouple type • Plug the thermocouple(s) into the input connector(s). • Press the power button to turn on the thermometer. • Set the type of thermocouple(s) to those plugged into the input connector(s). • Press SETUP until the display shows TYPE. •... - Page 5 • The maximum low limit alarm setting is the maximum range of the thermocouple used -1, or the high limit alarm setting -1. High Limit Alarm (Hi) (72-7715 only) • Press SETUP until the display shows HI. • Press ▲or▼ until the required high limit alarm. •...
- Page 6 Displaying Temperatures • Press ºC ºF K to select the correct temperature scale. • Hold or attach the thermocouple(s) to the measurement location. • The temperature reading appears in the selected display. Holding the displayed temperature Press HOLD to freeze the readings on the display. The display shows HOLD. •...
- Page 7 Wipe using a damp cloth or sponge. Do not use solvents as these may damage the casing. Do not immerse in water. SPECIFICATIONS Input Function 72-7712 72-7715 Protection Type K, J, T, E K, J, T, E, R, S, N...
-
Page 8: Input Protection
Relative time Data Store 0 - 99 sets Logging interval, Thermocouple type, offset T1, Offset T2 (72-7712 and 72-7715 only), sleep mode, Setup line frequency, time, high/low limit (72-7715 only) over limit signal output (72-7715 only), normal temp compensation, debug (72-7715 only)
