VALVE TRIM
MODEL: 3500WD-TRM
INSTALLATION GUIDE
FEATURE HIGHLIGHTS

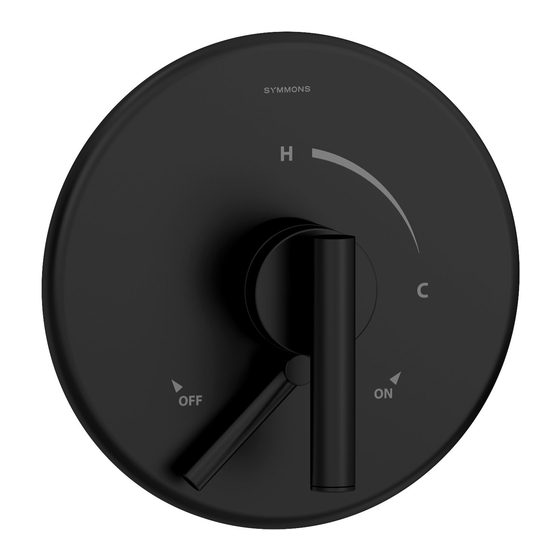

Valve trim made from metal construction, plated in standard polished chrome finish.
WARRANTY
Limited Lifetime - to the original end purchaser in consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to symmons.com/warranty for complete warranty information.
DIMENSIONS
3-1/2"
(89mm)
SHOWER SUPPLY
(PIPE AND FITTINGS
NOT SUPPLIED)
REF.
42"
(1067mm)
Note: Dimensions subject to change without notice.
ROUGH-IN
2-3/8" ± 1/2"
(60mm ± 13mm)
WALL SHOWN FOR
REFERENCE ONLY
FLOOR
3"
(76mm)
3"
(76mm)
Ø 7-1/2"
(191mm)
