Accessory Installation Instructions

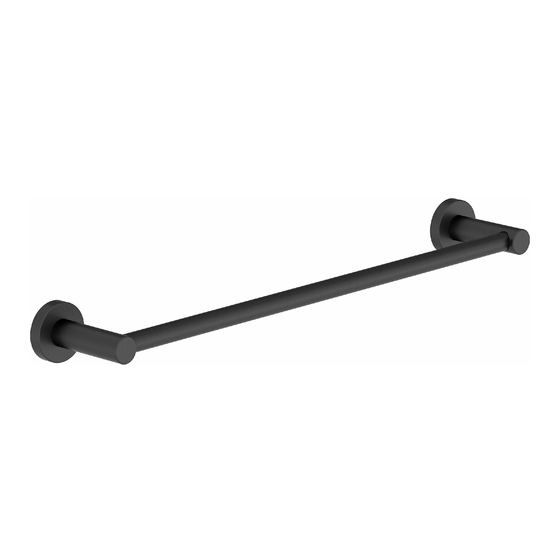

353TB-18
Towel bar
353TB-24
Towel bar
353DTB-18
Towel bar
353DTB-24
Towel bar
353TS-22
Towel shelf
353TR
Towel ring
353RH
Robe hook
353DRH
Double robe hook
353TH
Toothbrush holder
353TP
Toilet
Paper holder
353TPC
Toilet Paper holder
353SD
Soap dish
353-SD2
Soap basket
Feature Highlights
▪ Metal construction
▪ Standard finish is polished chrome
Finish Options
Append appropriate-suffix to model number.
▪ STN Satin nickel finish
Warranty
▪ Limited Lifetime - to the original end purchaser
in residential/consumer installations
▪ 5 years - for commercial installations
WARNING: This product can expose you to chemicals including lead, which is known to the
state of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Dia
®
353TB-18 & 353TB-24
353DTB-18 & 353DTB-24
353TS-22
353RH
353TR
353TH
353DRH
353TPC
353TP
353SD
353-SD2
REPLACEMENT PARTS
MODEL NO.
DESCRIPTION
Mounting
RA-017
Hardware Kit
Less Bracket
Mounting
RA-026
Hardware Kit
With Bracket
RECOMMENDED
TOOLS AND MATERIALS
Flathead Screwdriver,
Drill
Phillips Screwdriver
Tape Measure
Allen Wrench
All specifications subject to change without
prior notice.
MEASUREMENT
BEFORE INSTALLATION
MODEL NO.
LENGTH X=inch
18.03
353TB-18
353TB-24
23.62
use size
353DTB-18
18.03
5/16" drill bit
353DTB-24
23.62
353TS-22
22.05
X
1
Measure and mark holes as listed in the above table.
Drill screw mounting holes using a size 5/16" drill bit
-IMPORTANT: Ensure that the holes you have drilled for
installation are level.
2
Affix your mounting hardware to the wall using your
mounting screws. For plaster walls 1/2" thick or less,
insert toggle tool into toggle anchor to secure behind
wall prior to installing accessory trim.
353-SD2 Only:
3
After securing your mounting hardware to the wall, place
the mounting end of your accessory onto the mounting
hardware as is shown in the picture above. Affix your
accessory to the mounting hardware using the Allen
wrench that shipped with the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dia 353TB-18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Symmons Dia 353TB-18

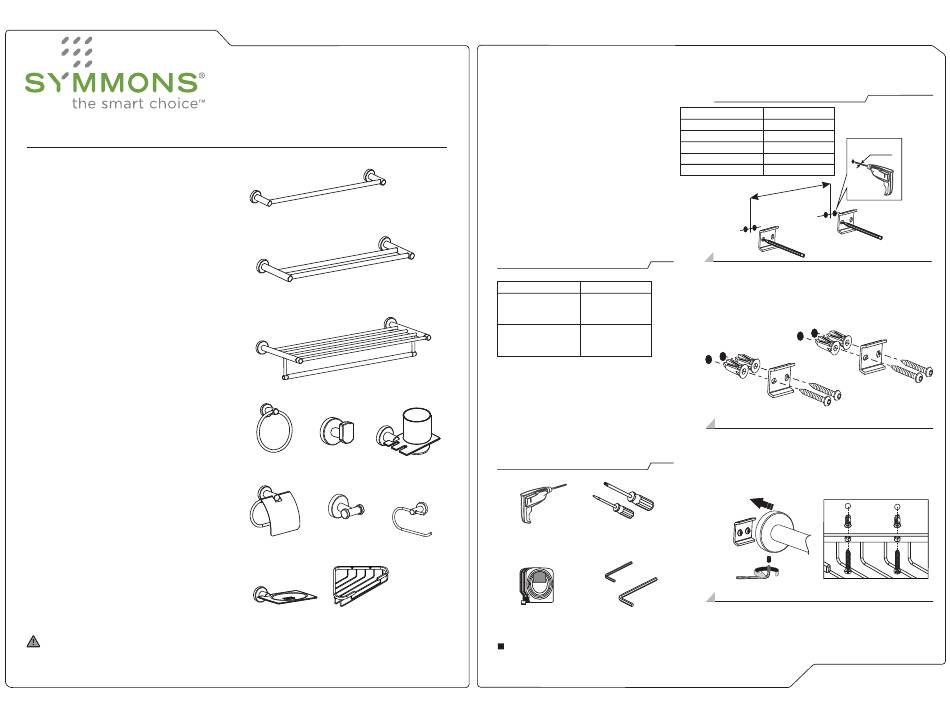

  • Page 1 MEASUREMENT ® BEFORE INSTALLATION MODEL NO. LENGTH X=inch Accessory Installation Instructions 18.03 353TB-18 353TB-24 23.62 use size 353DTB-18 18.03 5/16" drill bit 353DTB-24 23.62 353TS-22 22.05 353TB-18 Towel bar 353TB-24 Towel bar 353TB-18 & 353TB-24 353DTB-18 Towel bar 353DTB-24 Towel bar REPLACEMENT PARTS 353TS-22 Towel shelf...
