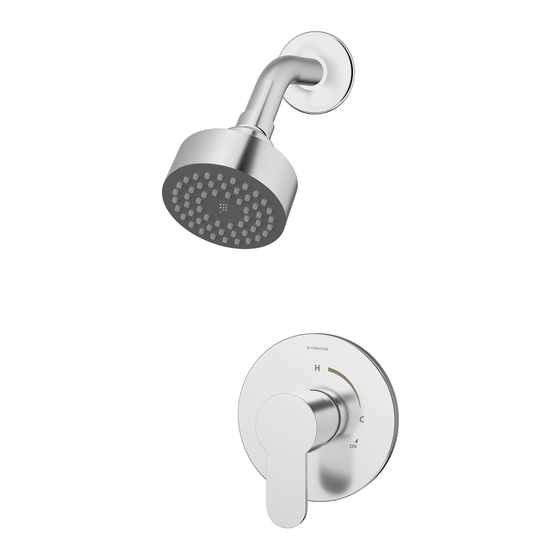

Single handle pressure-balancing mixing valve for shower or tub/shower application (4 pages)
Summary of Contents for Symmons 6701-TRM

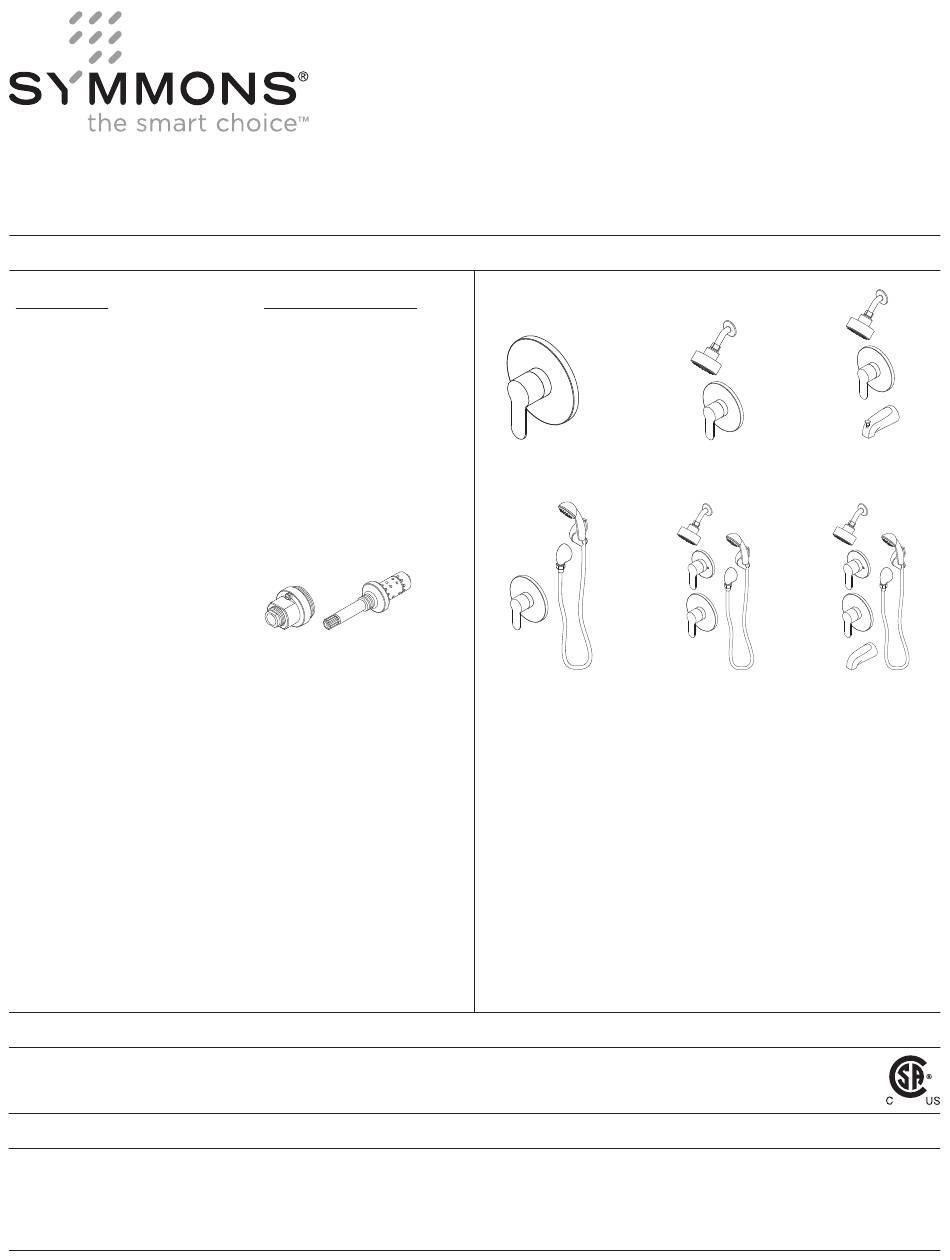

Page 1
6705TRMTC 6706TRMTC Compliance • ASME A112.18.1/CSA B125.1 Warranty Limited Lifetime - to the original end purchaser in consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Go to www.symmons.com/register to register your Symmons product.
Page 2
1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (2mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions FIGURE 2 Measurements 5-7/8", 149 mm 4-5/8", 117 mm Male 1/2" NPT fitting must be recessed 1/4" (6 mm) from finished wall Diverter Valve Hole Size Min.
Page 3
3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
Page 4
7. Parts Breakdown FIGURE 7 Replacement Parts Item Description Part Number Showerhead 672SH Shower Arm 300S Flange Handle Assy. RTS-084 Dome Cover T-19 Diverter Escutcheon 67-DIV-ESC Screws Shower Escutcheon Screws 6700-ESC Mounting Plate Tub Spout Diverter Tub Spout Wall Cradle Screws EF-106 Mounting Plate...
Page 5
4) Install handle to shower valve. Secure with set screw (FIGURE 8.4). FIGURE 8.3 FIGURE 8.4 9. Installation - Diverter Valve Trim 1) Secure small diverter escutcheon to Symmons diverter FIGURE 9.1 FIGURE 9.2 valve using mounting screws (FIGURE 9.1). 2) Install dome cover by turning clockwise (FIGURE 9.2).
Page 6
11. Installation - Slide Bar Assembly 1) Place mounting plate in position. Mark and drill 3/16" FIGURE 11.1 FIGURE 11.2 holes for tile anchors, 5/16" holes for drywall anchors. Install anchors (FIGURE 11.1). Note: For dry wall 1/2" thick or less, insert anchor tool into drywall anchor to secure behind wall prior to installing wall cradle.
Page 7
12. Operation (Temperature Control) 1) Turn shower handle counter-clockwise FIGURE 12.1 FIGURE 12.2 FIGURE 12.3 approximately 1/4 turn to put valve in cold position (FIGURE 12.1). 2) Turn shower handle counter- clockwise approximately 1/2 turn to put valve in warm position (FIGURE 12.2). 3) Turn shower handle counter- clockwise approximately 3/4 turn to put valve in hot position (FIGURE 12.3).
