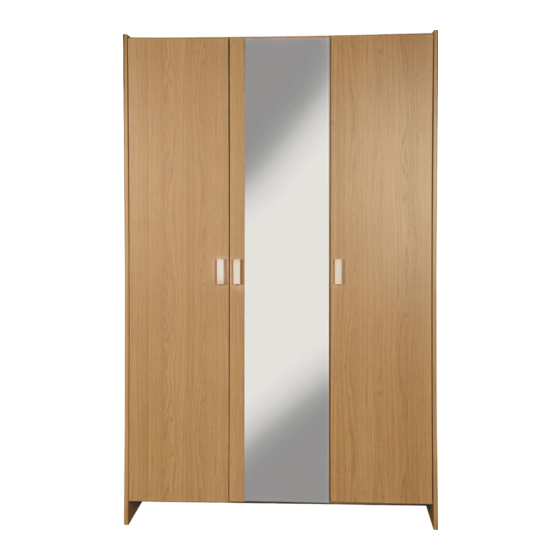

Capella - 3 Door Mirror Robe
Assembly Instructions -
Dimensions
Width - 115cm
Depth - 49cm
Height - 181cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
615/6831
615/6855
615/6848
615/5997
MADE IN
BRITAIN
Issue 3 - 16/05/12
Advertisement
Related Manuals for Argos Capella 615/6831
Summary of Contents for Argos Capella 615/6831
- Page 1 Capella - 3 Door Mirror Robe Assembly Instructions - 615/6831 Please keep for future reference 615/6855 615/6848 615/5997 Dimensions Width - 115cm Depth - 49cm MADE IN Height - 181cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 3 - 16/05/12...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 75kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Top/Base (D1018A) (1119 x 471mm) Plinth (D1024A) (1119 x 85mm) 1 Left Side 2 Right Side Long Divider...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Choose which side you would like the Shelves on Shelves on shelves the right side the left side Step 2 Prepare the long divider...
- Page 6 Assembly Instructions Step 4 Important: If one of the top/base panels has a plain chipboard surface this must be used as the base. Prepare the top and base Tap 4 wooden dowels into the top and base as shown. Note: Wooden dowels must not stick out from the edge by more than Finished...
- Page 7 Assembly Instructions Step 6 Important: If one of the top/base panels has a plain Fit top and base to chipboard surface this the long divider must be used as the base. Only carry out this step if you have chosen to fit the shelves on the left side.
- Page 8 Assembly Instructions Step 8 Fit the right side Push the right side onto the top base as shown. Use a screwdriver to tighten the 4 large locking nuts fitted to the top and base Profiled Note: From now on the front edge diagrams show the long of right side...
- Page 9 Assembly Instructions Step 10 Plain chipboard Prepare the plinth surface Tap 2 wooden dowels into the plinth Insert 2 large locking nuts into the plinth Step 11 Fit the plinth Push the plinth onto the right side Use a screwdriver to tighten the large locking fitted to...
- Page 10 Assembly Instructions Step 13 Impotant: If you have fitted the long divider on the left side of the unit the backs will need to go the opposite way around i.e. the Fit the back panels small back on the left side and the large back on the right side. Square up the unit by The measurement from top corner X to bottom corner X must be making sure that...
- Page 11 Assembly Instructions Step 14 Fit the hanging rail and shelves Push the hanging rail into the rail holders fitted to the left side and long divider For each of the 3 shelves , insert 4 shelf studs at the required height.
- Page 12 Assembly Instructions Step 15 Prepare the 2 standard doors Important: The 6 hinges used in this step are in the bag marked as AHP1546. Push fit 3 hinges into each standard door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees...
- Page 13 Assembly Instructions Step 17 Fit the standard doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the...
- Page 14 Assembly Instructions Step 18 Fit the mirror door and handle Note: The easiest way to attach the mirror door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the...
- Page 15 Assembly Instructions Step 19 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 16 Assembly Instructions Step 20 Fit the bracket To prevent possible overbalancing, we recommend that this unit is secured to a suitable wall by use of the bracket fitted to the top of the unit. Fixings are not supplied, as they will need to suit the wall type and the length of screw will depend on the distance...
- Page 17 KEEP THESE INSTRUCTIONS FOR FUTURE USE If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 20 ALR2603...
