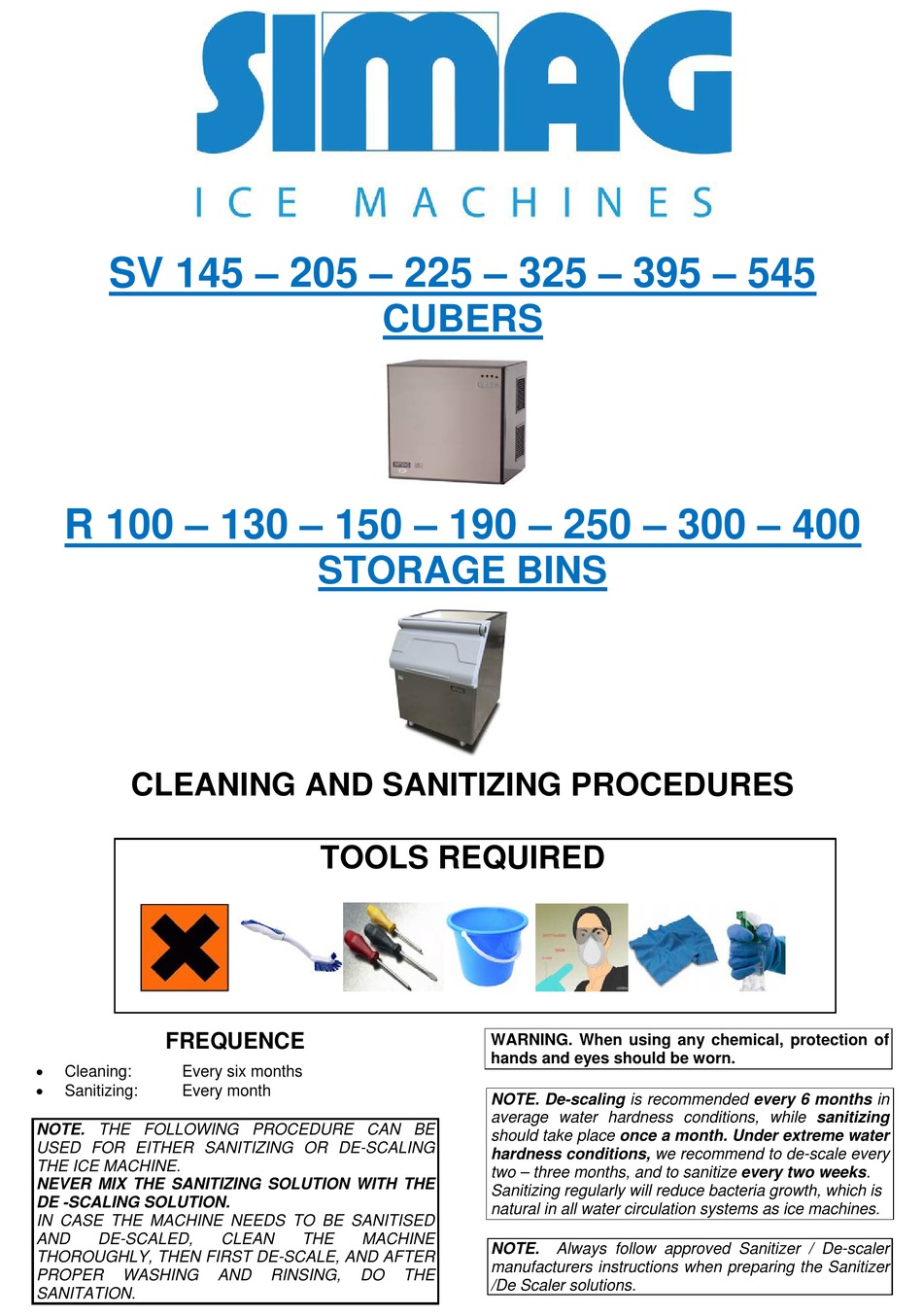

SV 145 – 205 – 225 – 325 – 395 – 545

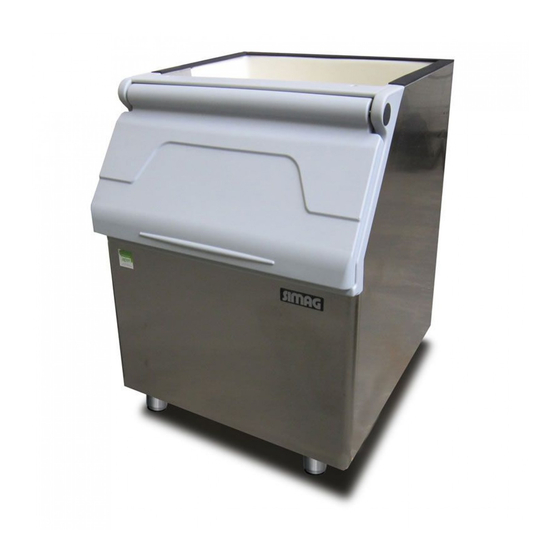

R 100 – 130 – 150 – 190 – 250 – 300 – 400
CLEANING AND SANITIZING PROCEDURES
FREQUENCE
Cleaning:
Every six months
Sanitizing:
Every month
NOTE. THE FOLLOWING PROCEDURE CAN BE
USED FOR EITHER SANITIZING OR DE-SCALING
THE ICE MACHINE.
NEVER MIX THE SANITIZING SOLUTION WITH THE
DE -SCALING SOLUTION.
IN CASE THE MACHINE NEEDS TO BE SANITISED
AND
DE-SCALED,
THOROUGHLY, THEN FIRST DE-SCALE, AND AFTER
PROPER
WASHING
SANITATION.
CUBERS
STORAGE BINS
TOOLS REQUIRED
CLEAN
THE
MACHINE
AND
RINSING,
DO
WARNING. When using any chemical, protection of
hands and eyes should be worn.
NOTE. De-scaling is recommended every 6 months in
average water hardness conditions, while sanitizing
should take place once a month. Under extreme water
hardness conditions, we recommend to de-scale every
two – three months, and to sanitize every two weeks.
Sanitizing regularly will reduce bacteria growth, which is
natural in all water circulation systems as ice machines.
NOTE.
Always follow approved Sanitizer / De-scaler
manufacturers instructions when preparing the Sanitizer
THE
/De Scaler solutions.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SIMAG SV 145
Summary of Contents for SIMAG SV 145
- Page 1 SV 145 – 205 – 225 – 325 – 395 – 545 CUBERS R 100 – 130 – 150 – 190 – 250 – 300 – 400 STORAGE BINS CLEANING AND SANITIZING PROCEDURES TOOLS REQUIRED FREQUENCE WARNING. When using any chemical, protection of hands and eyes should be worn.
- Page 2 PROCEDURE 1. Wait until the end of defrost cycle then 5. Remove the drain plug and drain out the water disconnect power from the unit (OFF) 6. Carefully push upper sides corner of the evaporator plastic cover and withdraw the same 2.
- Page 3 9. Disconnect water hose from water distributor …and disconnect hose from its fitting system 13. Push water level sensor clips and remove the same from its seat 10. Carefully push the two plastic clips of the water distributor and slip it off to right hand thus to release the same from its bottom plastic bracket ….
- Page 4 …..and disconnect hose from fitting 17. Push the two water sump holding brackets …….and withdraw water reservoir from its seat 15. Remove right half water sump plastic cover 16. Unloose a little bit the water pump bracket 18. Using gloves prepare the cleaning solution by screws diluting in a plastic bucket two liters of lukewarm water (max 40ºC) with 200 cc of Ice Machine...
- Page 5 20. Clean “water distributor system” by cleaning 26. Pour following quantity of cleaner inside water solution then rinse by fresh water sump SV 145-205: 300 ml SV 225-325: 400 ml SV 395-545: 500 ml 21. Clean water reservoir and its covers by cleaning solution then rinse by fresh water 27.
-
Page 6: Yellow Led
29. With the system in Cleaning mode the water 33. Once water reservoir is filled up by water, the pump is the only component in operation to water pump starts up again for 3 minutes circulate the cleaning solution in the entire water circulating, into the water system, the new fresh system. - Page 7 37. Water pump starts keeping sanitizing solution re-circulating inside hydraulic circuit; let the unit operating in sanitizing cycle for about 10 minutes 38. Push reset button for a while to restart rinsing 39. PC Board will start 7 rinsing batches as from # 32 to # 33 40.
