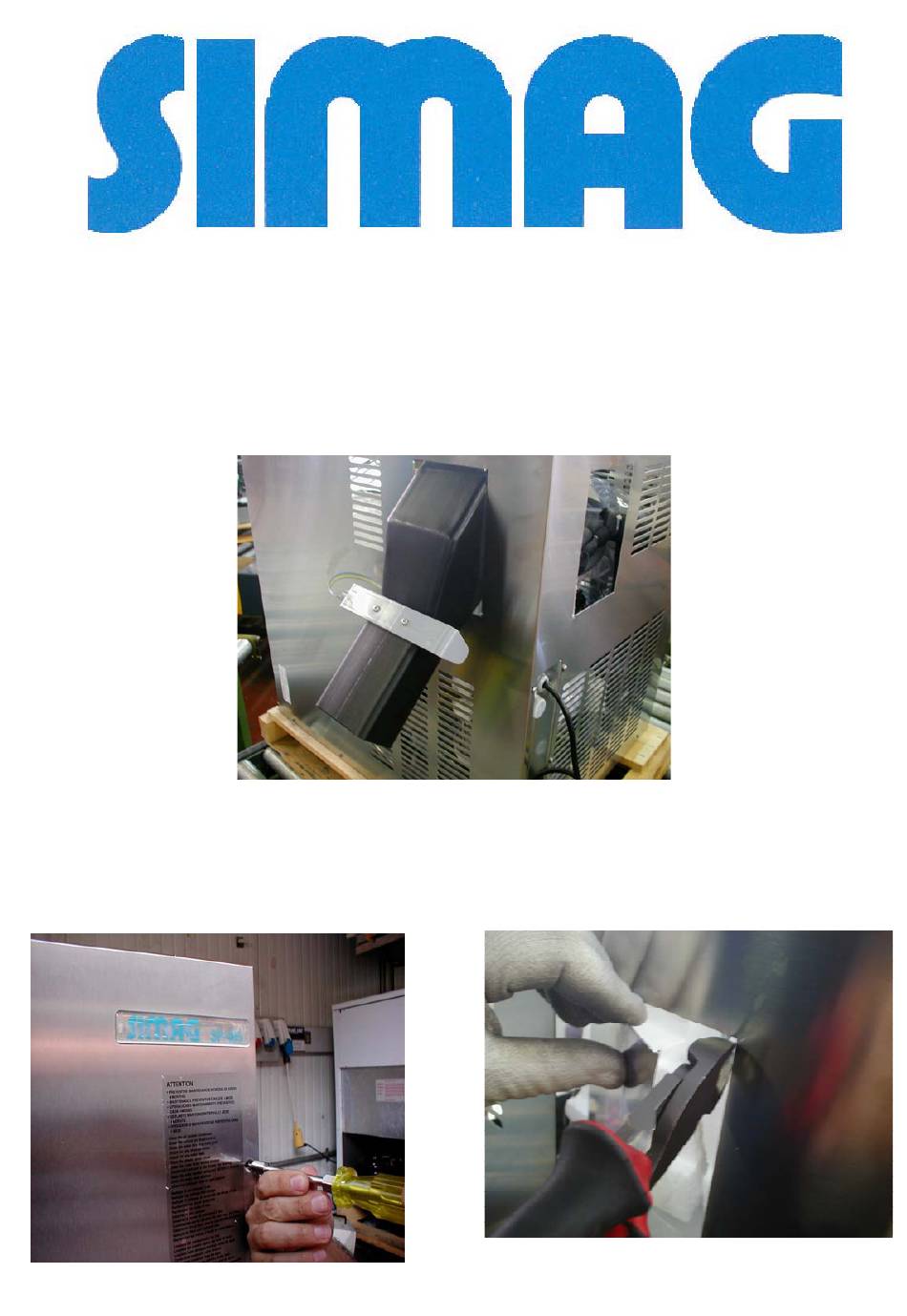

- Page 1 ELECTRONIC MODULAR FLAKERS SP 405 – SP 605 ICE CHUTE KIT INSTALLATION PROCEDURES 1. Remove first the Front/Top Panel. 2. Remove pre-punched small panel from right or… Page 1/5...
- Page 2 ……..rear panel. Unscrew the screw securing the ice spout metal bracket to the frame of the ice machine. 3. Install at bottom side of the opening gasket included in the kit. 5. Remove the rubber band from the insulation of plastic ice spout.
- Page 3 7. Unloose the two screws securing the ice spout 9. Unloose and remove the four ice-breaker screws metal bracket to the ice breaker and remove it and….. ….turn the same toward the selected opening. Secure again the ice-breaker with its screws in the new position.
- Page 4 ……move it through the ice opening so to have the 13. Install Ice Level Sensor onto the new ice chute same available just outside the unit frame. included in the kit securing it to the two drilled holes. 14. Insert the new ice chute through the selected 11.
- Page 5 16 . Re-fit the Front-Top panel. Page 5/5...
