The Challenge Machinery Company provides owner's manuals on its
products solely as a courtesy to its customers. See the information below
before using this manual.
These manuals are for reference only. These manuals include products which are noncurrent,
unsupported or no longer produced by The Challenge Machinery Company, and are provided solely as
an accommodation to our customers. By providing these manuals, The Challenge Machinery Company
makes no representation or warranty as to the products, their current condition, or their suitability or fitness
for use in any particular application, which are the sole and independent responsibility of the product
owner and user.
Older products may not comply with current safety procedures, guidelines or regulations, and it
is the product owner's and user's responsibility to evaluate the suitability and fitness of the
products in their current use and application. The Challenge Machinery Company makes no
representation, warranty or recommendation regarding any modifications which may be required
on non-current or unsupported products. The Challenge Machinery Company assumes no liability
for any modification or alteration to any Challenge product, and any such modification or
alteration to any Challenge product is not authorized by The Challenge Machinery Company. The
availability of these manuals is solely for the purpose of providing reference information for the products.
This manual may not be complete in all aspects of product maintenance and repair. All products should
be used only by qualified and properly trained personnel, following proper safety procedures. All
products should be regularly inspected and maintained, and their condition, application and use should
be periodically evaluated by qualified personnel. Only qualified and properly trained technicians should
perform maintenance, repair and replacement procedures. Attempting these procedures without proper
training may cause machine damage or operator injury!
Products may be unsupported by The Challenge Machinery Company due to age or the unavailability of
parts from their original manufacturer. No parts or product support will be available to repair or maintain
unsupported products. Older products may not be UL listed (if the product does not have a UL label it is
not a listed product), and may not comply with applicable installation or other regulations or requirements
if relocated to a new facility. Many municipalities require a product to be UL listed before an electrician
will connect power to them. Often the cost of updating an older product to comply with current safety
regulations is greater than the value of the product.
The Challenge Machinery Company
6125 Norton Center Drive
Norton Shores, MI 49441-6081 USA
ChallengeMachinery.com

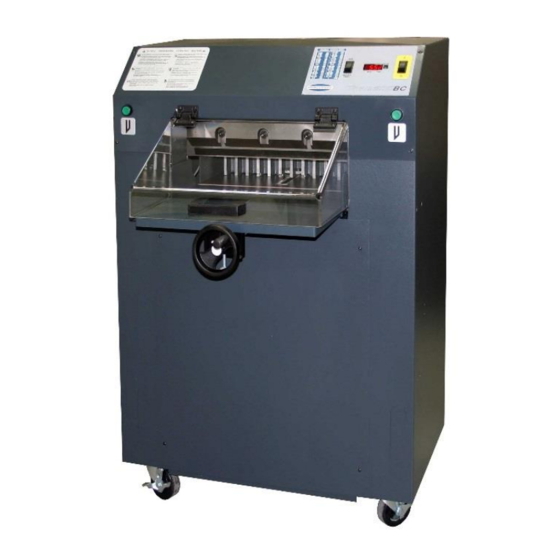

TITAN 200BC
Operator's Manual
110001 through 159999,
200BC-A-150000 and up
Sold and Serviced by
Serial Numbers:
F.200BC-O
August 2015
Advertisement
Table of Contents
Related Manuals for Challenge TITAN 200BC
Summary of Contents for Challenge TITAN 200BC
- Page 1 Products may be unsupported by The Challenge Machinery Company due to age or the unavailability of parts from their original manufacturer. No parts or product support will be available to repair or maintain unsupported products.
-
Page 2: Introduction
DIRECTLY TO CHALLENGE. If you bought a used machine, it is important to have the following information on record at Challenge. Copy this page, fill in the information and send it care of The Challenge Service Department, 6125 Norton Center Drive, Norton Shores MI. -
Page 3: Table Of Contents
1.0 Introduction TABLE OF CONTENTS 1.0 Introduction ............................2 2.0 Safety ..............................4 2.1 Precautions ...........................4 2.2 Power Lockout Procedure ......................4 2.3 Warning Label Definitions ......................5 3.0 Packing List ............................7 4.0 Specifications ............................8 5.0 Installation & Setup ...........................9 5.1 Inspecting Shipment ........................9 5.2 Floor Plan (Standard Table) ......................9 5.3 Floor Plan (Short Table Option) .................... -
Page 4: Safety
2.0 Safety 2.0 Safety 2.1 Precautions This machine is designed for one-person operation. Never operate the machine with more than one person. Safe use of this machine is the responsibility of the operator. Use good judgment and common sense when working with and around this machine. -
Page 5: Warning Label Definitions
2.0 Safety 2.3 Warning Label Definitions The following warning labels are found at various locations on your machine. Read and understand the meaning of each symbol. If a label is lost from the machine, it should be replaced. HAZARDOUS AREA Disconnect power before cleaning, servicing, or making adjustments not requiring power. - Page 6 2.0 Safety !OJO! This Este simbolo de alerta de seguridad significa ¡ OJO ! - INSTRUCCIONES DE SEGURIDADPERSONAL. Lea las instrucciones porque se refieren a su seguridad personal. Fall de obedecer las instrucciones que siguen podria resultar en lesiones corporales. ...
-
Page 7: Packing List
3.0 Packing List 3.0 Packing List Part No. Description Qty. A-10034 Knife 4166 Cutting Stick (in addition to one installed in machine) F.200BC-O Operation Manual 70025 Jogging Aid Tool Kit Knife Bolts, 3/8 – 16 x 1” H-6918-608 8815 Knife Washers, Special 5064 Cutting Stick Puller 43108... -
Page 8: Specifications
Machine cutting a full lift of paper: 77 dB *With false clamp plate attached, minimum cut is 1-7/8” (48 mm). Challenge reserves the right to make changes to any product or specification without notice and without incurring responsibility to existing units. -
Page 9: Installation & Setup
5.0 Installation & Setup 5.0 Installation & Setup 5.1 Inspecting Shipment This machine has been carefully packed to prevent damage during shipment. However, claims for damage or loss are the responsibility of the recipient. Inspect all shipments as soon as they are received. -
Page 10: Floor Plan (Short Table Option)
5.0 Installation & Setup 5.3 Floor Plan (Short Table Option) Figure 3... -
Page 11: Uncrating
If you don’t have the ceiling clearance to do this, carefully slit the carton down the side and then unwrap it from around the cutter. Remove all lag screws from the skid. Remove the lower front cover of the Titan 200BC and remove the two lag screws in the base. Remove the accessories. -
Page 12: Cleaning
5.6 Fitting Through Narrow Door (Standard Table) The Titan 200BC cutter will not fit through an opening less than 36” (91 cm) without the table being removed. With the table removed, it will fit through a 35” (89 cm) opening. With the table and front guard, it will fit through a 23”... -
Page 13: Reattaching The Table
5.0 Installation & Setup Remove the cut stick from the table using the cut stick removal tool. Locate the two taper pins in the cut stick slot. These must be tapped out from under the base through the table slot and removed. Then remove the four screws that mount the table to the base. -
Page 14: Hydraulic System Check
5.8 Hydraulic System Check The cutting/clamping mechanism of the Titan 200BC is powered by a hydraulic system consisting of an electric motor coupled directly to a hydraulic pump. The hydraulic reservoir holds 1 gallon (3,8 liters) of hydraulic fluid. It is filled with ISO VG 100 hydraulic fluid at the factory but should be checked before operation. -
Page 15: False Clamp Plate (Optional)
5.0 Installation & Setup 5.9 False Clamp Plate (Optional) To prevent marking on pressure sensitive jobs, a false clamp plate is available as an optional item for your machine. This plate attaches to the bottom of the clamp. It is secured with wing nuts on studs that pass through the top of the clamp. -
Page 16: Operation
6.0 Operation IMPORTANT: DO NOT ATTEMPT TO OPERATE THE CUTTER UNTIL YOU HAVE THOROUGHLY READ AND UNDERSTAND ALL OF THE FOLLOWING INSTRUCTIONS. CALL YOUR AUTHORIZED CHALLENGE DEALER IF YOU STILL HAVE ANY QUESTIONS. 6.1 Console Controls The console controls consist of a main power switch, inch/mm selector, and knife adjust switch. -
Page 17: Adjusting The Clamping Pressure
Always remove the jogging aid from the table before making a cut. A jogging aid is included as standard equipment with the Titan 200BC. This tool allows the operator to load and align paper without the need to place hands or arms under the knife or clamp. -
Page 18: Backgauge Control
6.0 Operation Figure 13 6.5 Backgauge Control Each time the machine is switched on, the backgauge must be preset. Switch on the machine. The display will read all dashes. If the backgauge is closer than 5 inches (127mm), move the backgauge further than 5 inches (127mm)then bring it forward again until numbers are displayed. -
Page 19: Knife Installation/Changing
7.0 Knife Installation/Changing 7.0 Knife Installation/Changing Changing knives can be very dangerous unless safety precautions are observed and extreme care is taken when handling knives. By nature of the machines design, the right end of the knife will be exposed when it is in the knife lifter. - Page 20 7.0 Knife Installation/Changing Figure 15 3. Remove the knife bolts from the two slotted knife bar holes and replace with the knife lifter assembly (Figure 16). Tighten the lifters to hold the knife in place, and then remove the remaining knife bolts. Figure 16 4.
-
Page 21: Knife Installation
7.0 Knife Installation/Changing 7.2 Knife Installation Knives are heavy and always very sharp! Be sure to keep the edge away from your body and keep other people out of the area while handling the blade. Severe lacerations or dismemberment could result from careless handling procedures. 1. -
Page 22: Knife Care Tips
7.0 Knife Installation/Changing Figure 18 14. Plug in the power cord and switch power on. And move the Knife Adjust Switch to the Run mode. 15. Close the front shield and push both cut buttons. This will raise the knife and clamp to the up position. -
Page 23: Cutting Stick
4 times again. 7.3.3 Bevel Angle Challenge recommends that bevel angles for the Titan 200BC knives be in the range of 21° to 23°. In general, a 21° bevel angle will provide better cut quality when cutting soft paper (such as newsprint), recycled paper, or bound books. - Page 24 Always keep knife bolts securely tightened. Always use the heavy-duty knife bolt washers provided by Challenge. Failure to do so could result in scratching or marring of the clamp face. Store knives in a dry environment to prevent corrosion.
-
Page 25: Lubrication
8.0 Lubrication 8.0 Lubrication Switch power off and disconnect the power cord. Remove the top cover. Parts requiring oiling are marked with red paint. See figures Figure 19 through Figure 25 starting on page 25 for oil and grease locations. Figure 19 and Figure 20 require the knife and clamp be in the up position. Figure 28 through 32 require the knife and clamp be down. - Page 26 8.0 Lubrication Figure 21 – Knife Bar Link – L.H. Side, Lower Figure 22 – Knife Bar Link – R.S. Lower, Knife Bar, Knife Cylinder Bracket, Upper Figure 23 & Figure 24 –Clamp Guides...
- Page 27 8.0 Lubrication Figure 25 – Lead Screw and Backgauge Guide...
-
Page 28: Safety Systems Test
9.0 Safety Systems Test Machine manufacturer CHALLENGE Model TITAN 200BC Serial Number __________________ Frequency of test: THESE TESTS SHOULD BE PERFORMED AT THE BEGINNING OF EACH WORK DAY. Switch power on and make sure the knife and clamp are in the up position (if they are not, follow the instructions in this manual to send them up). - Page 29 9.0 Safety Systems Test Please enter date and initials for both tests. Date ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ Test 1 ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ Test 2 ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ Date ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ Test 1 ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______...
- Page 30 F.200BC-O August 2015...
