Installation and operating instructions
PROFESSIONAL GAS PASTRY
FRYER
FPG-20 FPG-30 FMPG-20 FMPG-30
Model LIBR.ISTR. FPG
Code 563010300
Review 1
Edition date 05/02/2020
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions
Advertisement
Table of Contents
Related Manuals for Lotus FPG-20
Summary of Contents for Lotus FPG-20
- Page 1 Installation and operating instructions PROFESSIONAL GAS PASTRY FRYER FPG-20 FPG-30 FMPG-20 FMPG-30 Model LIBR.ISTR. FPG Code 563010300 Review 1 Edition date 05/02/2020 Language English LOTUS S.p.A. Via Calmaor, 46 31020 San Vendemiano +39 0438 778020 +39 0438 778277 Translation of the original instructions...
-
Page 2: Table Of Contents
Contents Contents INTRODUCTION ......................... Installation drawing ........................GENERAL INFORMATION......................Declaration of compliance......................Technical data table ........................INSTALLATION........................... Delivery checks ..........................Removing the packaging ......................Mechanical installation ......................... Electrical/gas connections ......................BURNERS TECHNICAL DATA TABLE (ITGB)................Burners technical data table ......................INSTRUCTIONS FOR USE...................... -
Page 3: Introduction

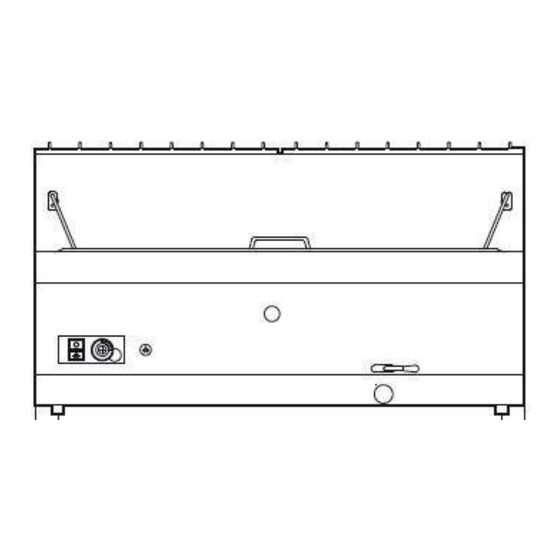

INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 FPG-20..30 A Data Plate C Gas connection Translation of the original instructions... - Page 4 INTRODUCTION FIG. 2 FMPG-20..30 A Data Plate C Gas connection Translation of the original instructions...
-
Page 5: General Information
GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system. -
Page 6: Technical Data Table
GENERAL INFORMATION Technical data table Technical data table FPG GAS FITTING RATED MODEL DIMENSIONS ISO 7-1 TOTAL GAS FLOW (kW) FPG-20 60x70x25h R ½GM 11,2 FPG-30 80x70x25h R ½GM 16,5 FMPG-20 60x70x85h R ½GM 11,2 FMPG-30 80x70x85h R ½GM 16,5... -
Page 7: Installation
INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following: · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·... - Page 8 INSTALLATION Installation operations, any conversion to other types of gas and start-up must only be performed by qualified personnel, in accordance with current regulations. Gas systems, electrical connections and premises where the appliances are installed must comply with current regulations in the country of installation;...
- Page 9 INSTALLATION For burners equipped with air adjustment, set the adjustable bushing and lock it with a screw. The "Burner technical data" table shows approximate values for the "h" parameter (primary air). The primary air flow volume must be adjusted to avoid a flame cut-off when the burner is cold and a flame blowback when the burner is hot.
- Page 10 INSTALLATION Forced evacuation (fig.4) The gas supply to the appliance must be directly servo-controlled by the forced evacuation system and must stop if the flow rate drops below the values indicated in point 4.3 of the UNI-CIG 8723 standard. Resetting the gas supply to the appliance must be possible only by hand.
-
Page 11: Burners Technical Data Table (Itgb)
12.68 kWh/KG 12.87 kWh/KG 9.45 kWh/m3st. BUTANE PROPANE METHANE H 30 mbar 37 mbar 20 mbar FPG-20 FMPG-20 Burner 11,2 kW Burner injector 1/100 mm 3 x 100 3 x 100 3 x 150 Pilot injector Consumption kg/h 0.875... -
Page 12: Instructions For Use
INSTRUCTIONS FOR USE 5 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails. -
Page 13: Safety Thermostat
INSTRUCTIONS FOR USE Safety thermostat The appliance is equipped with a safety thermostat which interrupts the gas flow if the temperature of the oil bath exceeds the pre-set maximum value (230 °C). Safety intervention is signalled by the main burner and the pilot burner both switching off. -
Page 14: Top Appliances Bowl Emptying
INSTRUCTIONS FOR USE Top appliances bowl emptying · The user is required to have a suitable recipient for emptying the water/oil · Insert the drain tube as shown on the drawing, position the container · Push the safety device upwards against the involuntary openings (A) and move the lever (B) ... -
Page 15: Maintenance
MAINTENANCE 6 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract. Caution Maintenance must only be performed by specialist personnel in compliance with current ... - Page 16 MAINTENANCE · Replace the nozzle with the appropriate version and make sure that, after ignition, the flame correctly touches the tip of the thermocouple Warning After conversion to another type of gas, update the technical data plate to indicate the type of ...
-
Page 17: Cleaning
CLEANING 7 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the appliance from the power supply.
