IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

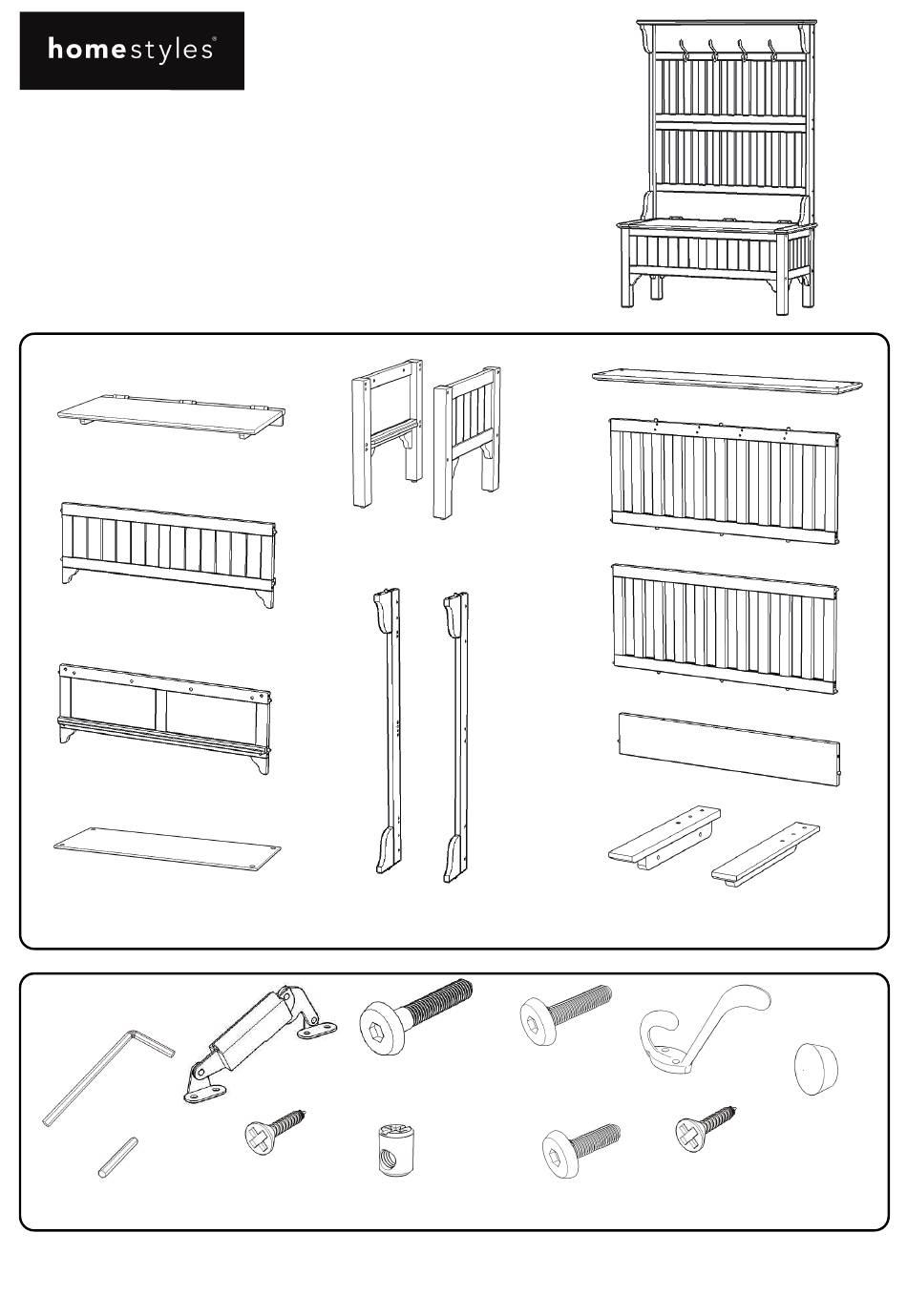

Part List
A.
Seat
1 pc.
D.
Front Panel
1 pc.
E.
Back Panel
1 pc.
F.
Base
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5649 49C

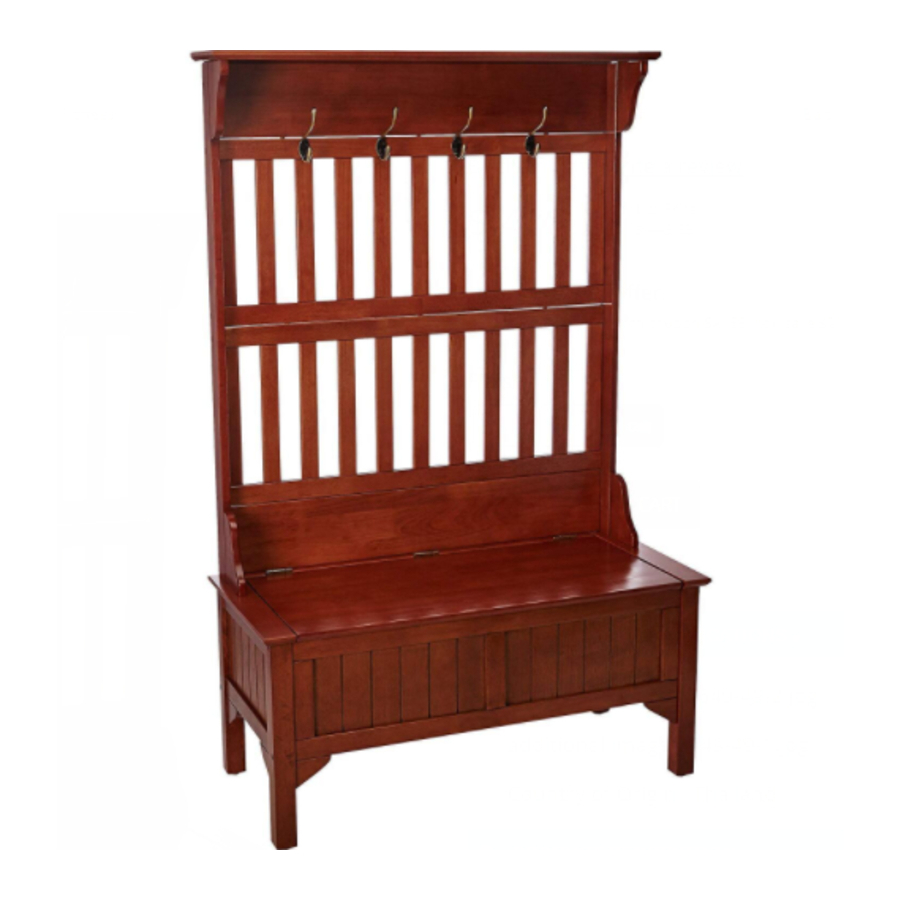

Hall Tree Storage Bench
B.
Side Panel
1 pc.
H.
Side Panel
1 pc.
M6x50
Spring Support
Head Cap Bolt (long)
2 pcs.
8 pcs. (+1 extra)
M3.5x16
Wood Screw
for Spring Support
Cross Dowel
8 pcs. (+1 extra)
8 pcs. (+1 extra)
G.
Top
1 pc.
C.
J.
Side Panel
Back Frame
1 pc.
1 pc.
K.
Back Frame
1 pc.
L.
Back Stretcher
2 pcs.
I.
Side Panel
1 pc.
M6x35
Head Cap Bolt
24 pcs. (+1 extra)
M6x30
Head Cap Bolt (short)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
M.
Arm
1 pc.
Hook
4 pcs.
M4x16
Wood Screw
for Hook
8 pcs. (+1 extra)
N.
Arm
1 pc.
Wood Plug
20 pcs. (+1 extra)
