IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Small Hex Wrench
1 pc.
Carton 20 05411 0352 is also needed for assembly.
Tool(s) required for assembly: Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05411 0351

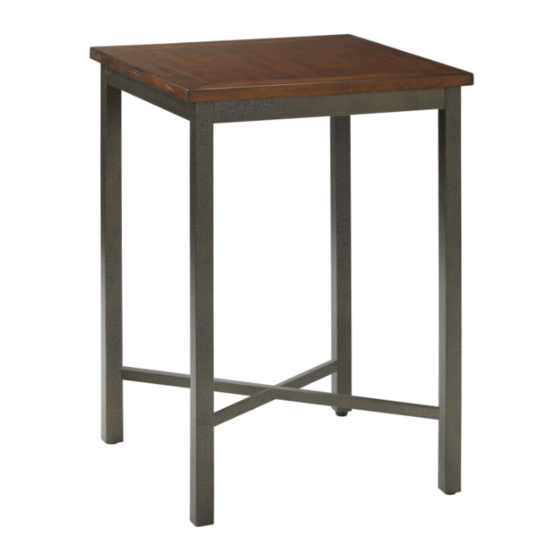

Bar Table
M8x45
Head Cap Bolt (long)
Hex Wrench
8 cs. (+1 extra)
p
1 c.
p
A.
Top
1 pc.
M x
6 16
Head Cap Bolt (short)
5 pcs. (+1 extra)
888-680-7460, 877-831-0319
Spring Washer
Flat Washer
8 cs. (+1 extra)
p
8 cs. (+1 extra)
p
