IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
D.
Front Rail
1 pc.
F.
Back Panel
1 pc.
G.
Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05420 0016

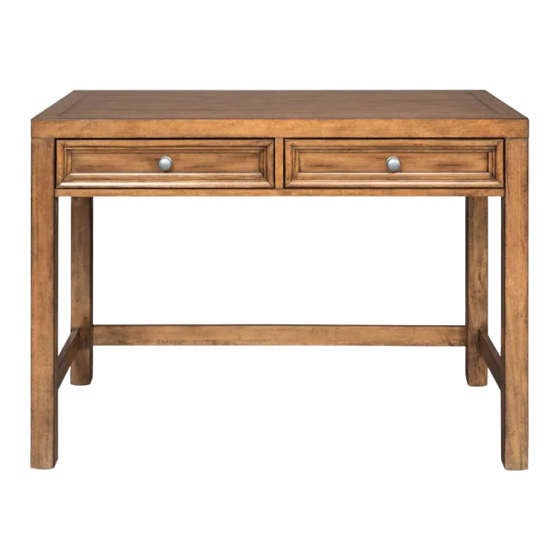

Student Desk
E.
Divider
1 pc.
M6x35
Cam Lock
Head Cap Bolt
2 pcs. (+2 extra)
12 pcs. (+1 extra)
Cam Lock Screw
2 pcs. (+2 extra)
B.
Side Frame
1 pc.
H.
Drawer
2 Pcs.
Refer to later page(s) of these
instructions for drawer assembly.
Spring Washer
12 pcs. (+1 extra)
M3.5x38
M3.5x25
Wood Screw
Flat Head Screw
2 pcs. (+1 extra)
1 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
Side Frame
1 pc.
Flat Washer
Handle
12 pcs. (+1 extra)
2 pcs.
M4x22
Machine Screw
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05420 0016
Summary of Contents for Homestyles 20 05420 0016
- Page 1 Wood Screw Flat Head Screw Machine Screw Cam Lock Screw 1 pc. 2 pcs. (+2 extra) 2 pcs. (+1 extra) 1 pcs. (+1 extra) 2 pcs. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/5 Wood Screw STEP 3 Attach Front Rail (D) to unit with Cam Lock and Flat Head Screw. (See Figures 3) Flat Washer Attach Stretcher (G) to unit Spring Washer with Wood Screw. Head Cap Bolt (See Figure 4) Attach Side Frame (C) to unit with Cam Lock, Wood Screw, Head Cap Bolts,...
- Page 4 Assembly Instructions 4/5 Drawer (H) STEP 5 Attach Drawer Sides (H3) and (H4) to Drawer Back (H2), then flip the Locks. (See Figures 5 and 6) Lock Figure 5 Figure 6 STEP 6 Slide Drawer Bottom (H5) into grooves in Drawer Sides (H3) and (H4) until it meets Drawer Back (H2).
- Page 5 Assembly Instructions 5/5 STEP 8 Turn unit to its’ upright position. Slide Drawers (H) into position. Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 7) Figure 7...
- Page 6 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
