U-Line H-6102 Quick Start Manual

6' deluxe wooden picnic table
Hide thumbs
1
2
3
4
5
6

Advertisement

Available languages

Available languages

Quick Links

Download this manual

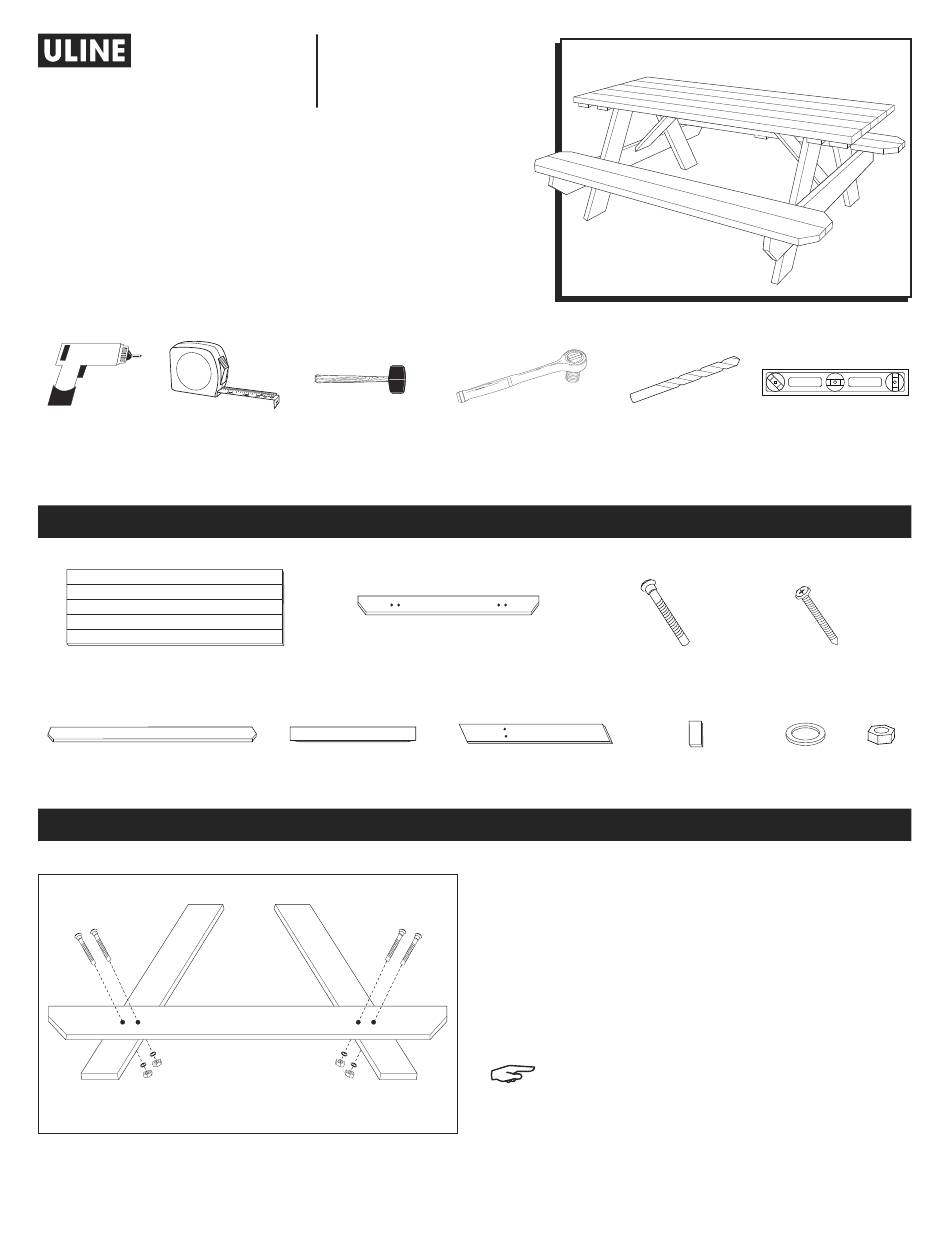

H-6102
6' DELUXE WOODEN
PICNIC TABLE
TOOLS NEEDED
Drill
Tape Measure
Preassembled Table Top x 1
72" Seat Plank x 4
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
Rubber Mallet
PARTS
59" Pre-Drilled Seat Cross-Member x 2
23½" Diagonal Brace x 2
30" Pre-Drilled Table Leg x 4
ASSEMBLY
1/2" Socket Wrench
3½" Carriage Bolt x 8
1. Verify all parts are present before beginning.
Hardware is bagged and stapled to the table.
2. Place the pre-drilled seat cross-member on top of
the pre-drilled table legs. Position the legs so the
holes are aligned and the tops of the legs are level
and straight. (See Figure 1)
3. Loosely attach with the 3½" carriage bolts through
the pre-drilled holes using the washers and nuts.
NOTE: It is recommended to use a rubber
mallet to tap bolts through holes.
4. Repeat steps 1-3 for the second side.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
1/8" Drill Bit
Level
2½" Wood Screw x 36
10" Seat Block x 2
Washer x 8
Nut x 8
0421 IH-6102

Advertisement

loading

Related Manuals for U-Line H-6102

Summary of Contents for U-Line H-6102

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-6102 1-800-295-5510 uline.com 6' DELUXE WOODEN PICNIC TABLE TOOLS NEEDED Drill Tape Measure Rubber Mallet 1/2" Socket Wrench 1/8" Drill Bit Level PARTS Preassembled Table Top x 1 59"...

  • Page 2: Care And Maintenance

    ASSEMBLY CONTINUED 5. Place the preassembled table top upside down. Position the legs on the inside of the support bar. Make sure the legs are equal distance from either table edge and the cross-member is facing out. (See Figure 2) 6.
  • Page 3 H-6102 800-295-5510 uline.mx MESA DE MADERA PARA PÍCNIC DE ALTA CALIDAD DE 6' HERRAMIENTAS NECESARIAS Taladro Cinta de Medir Mazo de Caucho Llave de Dado de 1/2" Broca de Taladro Nivel de 1/8" PARTES 1 Cubierta Preensamblada 2 Travesaños Preperforados 8 Pernos de Cabeza 36 Tornillos de 2½"...

  • Page 4: Cuidado Y Mantenimiento

    CONTINUACIÓN DE ENSAMBLE 5. Coloque en posición invertida la cubierta de mesa preensamblada. Coloque las patas en el interior de la barra de soporte. Asegúrese de que las patas están a la misma distancia de ambos extremos de la mesa y que el travesaño voltee hacia afuera. (Vea Diagrama 2) 6.

  • Page 5: Montage

    H-6102 1-800-295-5510 uline.ca TABLE DE PIQUE-NIQUE DE LUXE EN BOIS – 6 PI OUTILS REQUIS Perceuse Ruban à mesurer Maillet en Clé à douilles de 1/2 po Mèche de perceuse Niveau caoutchouc de 1/8 po PIÈCES Dessus de table préassemblé x 1...

  • Page 6: Nettoyage Et Entretien

    MONTAGE SUITE 5. Placez le dessus de table préassemblé à l'envers. Placez les pattes sur la face intérieure de la barre de soutien. Assurez-vous que les pattes sont équidistantes des deux bords de la table et que la traverse est orientée vers l'extérieur. (Voir Figure 2) 6.
