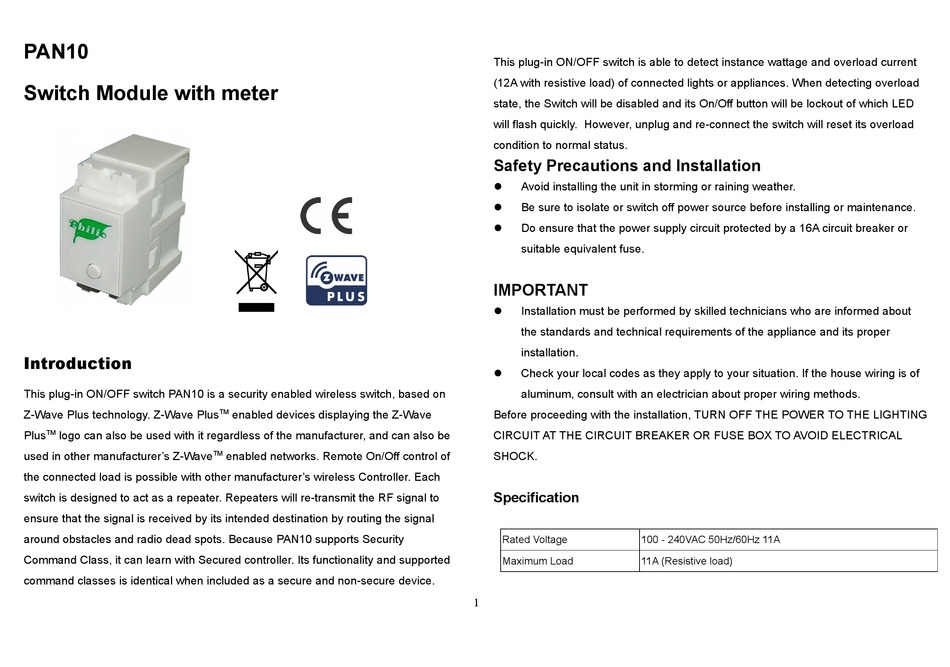

Philio PAN10 Manual

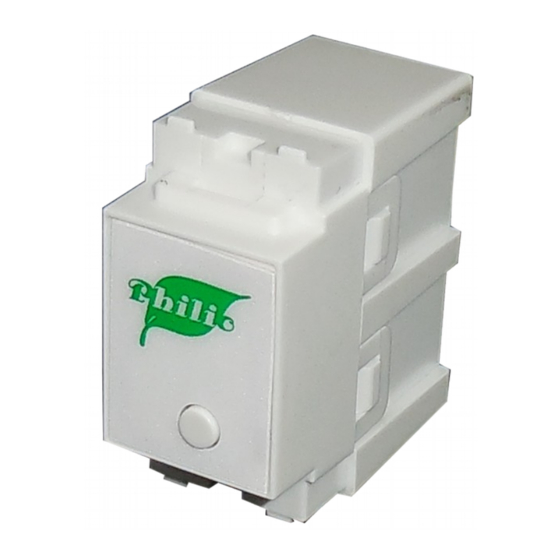

PAN10
Switch Module with meter
Introduction
This plug-in ON/OFF switch PAN10 is a security enabled wireless switch, based on
Z-Wave Plus technology. Z-Wave Plus
Plus TM logo can also be used with it regardless of the manufacturer, and can also be
used in other manufacturer's Z-Wave
the connected load is possible with other manufacturer's wireless Controller. Each
switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to
ensure that the signal is received by its intended destination by routing the signal
around obstacles and radio dead spots. Because PAN10 supports Security
Command Class, it can learn with Secured controller. Its functionality and supported
command classes is identical when included as a secure and non-secure device.
TM enabled devices displaying the Z-Wave
TM enabled networks. Remote On/Off control of
This plug-in ON/OFF switch is able to detect instance wattage and overload current
(12A with resistive load) of connected lights or appliances. When detecting overload
state, the Switch will be disabled and its On/Off button will be lockout of which LED
will flash quickly. However, unplug and re-connect the switch will reset its overload
condition to normal status.
Safety Precautions and Installation
Avoid installing the unit in storming or raining weather.

 Be sure to isolate or switch off power source before installing or maintenance.
 Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.
IMPORTANT
 Installation must be performed by skilled technicians who are informed about
the standards and technical requirements of the appliance and its proper
installation.
 Check your local codes as they apply to your situation. If the house wiring is of
aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE LIGHTING
CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID ELECTRICAL
SHOCK.
Specification
Rated Voltage 100 - 240VAC 50Hz/60Hz 11A
Maximum Load 11A (Resistive load)
