Philio PSR04 Manual

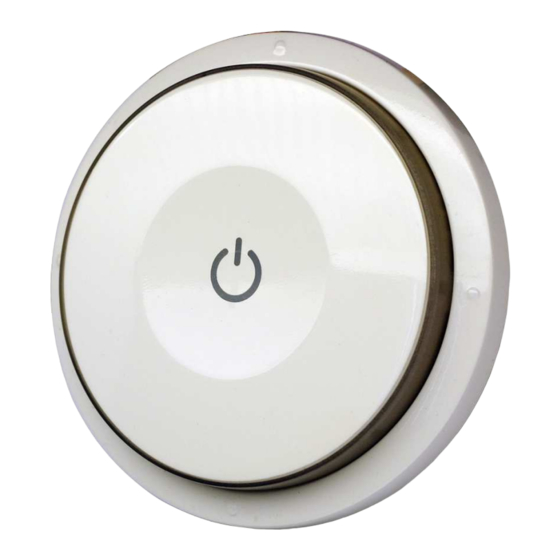

PSR04 Smart Color Button
This device is a multiple functions button switch. It is able to
switch the appliances on/off or adjust the percentage of dimmer.
It can also work as a timer. The well designed wall bracket and
magnetic back let the switch can be fixed on the wall. This product
can be included and operated in any Z-Wave
TM
Z-Wave certified devices from other manufacturers and/or other
applications.
Note:
Please provide a 5 VDC voltage through Micro USB Port to
wake the device up before the first using.
The rotation function and timer functions work only when the
device is fitted upright or stick on the wall or the device will only
work as on/off switch when fitted horizontal.
TM
network with other
1
CAUTION
– replacement of a battery with an incorrect type that can defeat a
safeguard (for example, in the case of some lithium battery types);
– disposal of a battery into fire or a hot oven, or mechanically
crushing or cutting of a battery, that can result in an explosion;
– leaving a battery in an extremely high temperature surrounding
environment that can result in an explosion or the leakage of
flammable liquid or gas;
– a battery subjected to extremely low air pressure that may result in
an explosion or the leakage of flammable liquid or gas
The marking information is located at the bottom of the apparatus.
Specification
Operating Voltage 3.7 V (Lithium Polymer Battery)
Battery Charge Voltage 5 VDC @ Micro USB Port
Range Minimum 40 m in door, 100m outdoor
line of sight
Frequency Range 868.40 MHz, 869.85 MHz (EU)
908.40 MHz, 916.00 MHz (US)
920.9MHz, 921.7MHz, 923.1MHz
(TW/KR/Thai/SG)
RF Maximum Power +5dBm
Location Indoor use only
Operation temperature -10 to 45° C
Humidity 95%RH max
FCC ID RHHPSR04
Marking CE/NCC
** Specifications are subject to change and improvement
without notice.
