PAN03 ; PAN10
Switch Module with meter

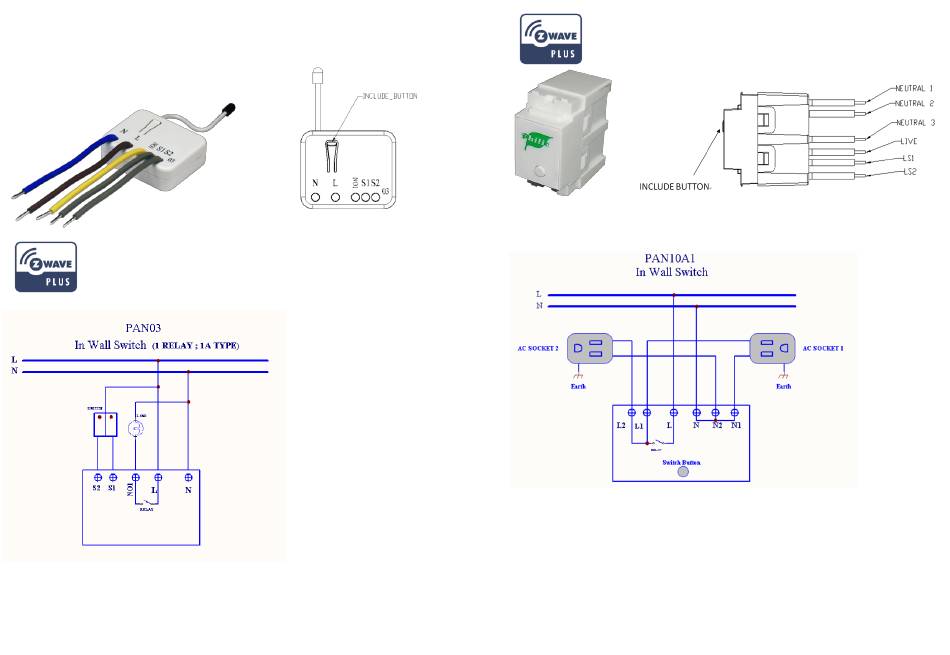

Fig 1. PAN03 Assembling
Fig 2. PAN10 Assembling
This plug-in ON/OFF switch PAN03/PAN10 is a security enabled wireless switch,
based on Z-Wave Plus technology. Z-Wave Plus
TM
Z-Wave Plus
logo can also be used with it regardless of the manufacturer, and can
also be used in other manufacturer's Z-Wave
1
TM
enabled devices displaying the
TM
enabled networks. Remote On/Off
Advertisement
Table of Contents
Related Manuals for Philio Z-Wave Plus PAN03
Summary of Contents for Philio Z-Wave Plus PAN03
- Page 1 PAN03 ; PAN10 Switch Module with meter Fig 2. PAN10 Assembling This plug-in ON/OFF switch PAN03/PAN10 is a security enabled wireless switch, based on Z-Wave Plus technology. Z-Wave Plus enabled devices displaying the Z-Wave Plus logo can also be used with it regardless of the manufacturer, and can Fig 1.
- Page 2 control of the connected load is possible with other manufacturer’s wireless Controller. Put your Z-Wave controller into Inclusion inclusion mode by following the Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal instructions provided by the to ensure that the signal is received by its intended destination by routing the signal controller manufacturer.
-
Page 3: Led Indication
PAN03 already installed in a wall box. To solve this issue, PAN03 support a special 2. Connect the wall switch to the PAN03/PAN10 as Fig1. feature that can use S1 or S2 to execute “exclusion, inclusion, Reset or Association” at the first 3 minutes when first time connect to main power. PAN10 does not support 3. - Page 4 [Command Class Switch Binary, Switch Binary Set, Value = 1~99, to Group 1 node. (255)0xFF]: the load attached to the Switch turns on. The content of Alarm Report [Command Class Switch Binary, Switch Binary Set, Value = 0(0x00)]: the load attached to the Switch turns off. Alarm report command: [Command_Class_Alarm, Alarm_Report, Alarm Type = 0x08, Alarm Level = 0xFF] 1.
- Page 5 Example: node. Scale = 0x00 (KWh) Precision = 2 Meter Get Command: [Command Class Meter, Meter Get, Scale =0x05(I)] Size = 4 Bytes (KW/h) Meter Report Command: Meter Value 1 = 0x00(KWh) [Command Class Meter，Meter Report，Rate Type = 0x01，Meter Type = 0x01， Meter Value 2 = 0x01(KWh) Meter Value 3 = 0x38(KWh) Precision = 2，Scale = 0x05，Size = 2，Meter Value(I)]...
- Page 6 Report Period 0x7FFF Threshold of 0.01A 3-3 Threshold of current for Load Caution 10-1100 1100 1100*0.01A = 11A current for Load caution This is a warning when the current of load over the preset threshold value, if the Threshold of 1KWh 1-10000 10000...
-
Page 7: Troubleshooting
3-9-4 Switch On：It switches to ON state. media. It is a helpful and convenient way to improve some function if needed. 3-10 Edge mode、Pulse mode and Edge-Toggle mode 6. Command Classes Manual switch S1 and S2 can set to Edge mode or Pulse mode or Edge-Toggle mode, default value is Edge mode. -
Page 8: Specification
They can take this product for environmental safe recycling. FCC ID : RHHPAN03 Company of License Holder：Philio Technology Corporation Address of License Holder：8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New DANGER Taipei City 24257,Taiwan(R.O.C) Danger of electrocution! All works on the device may be performed only by a qualified and licensed electrician. - Page 9 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •...
