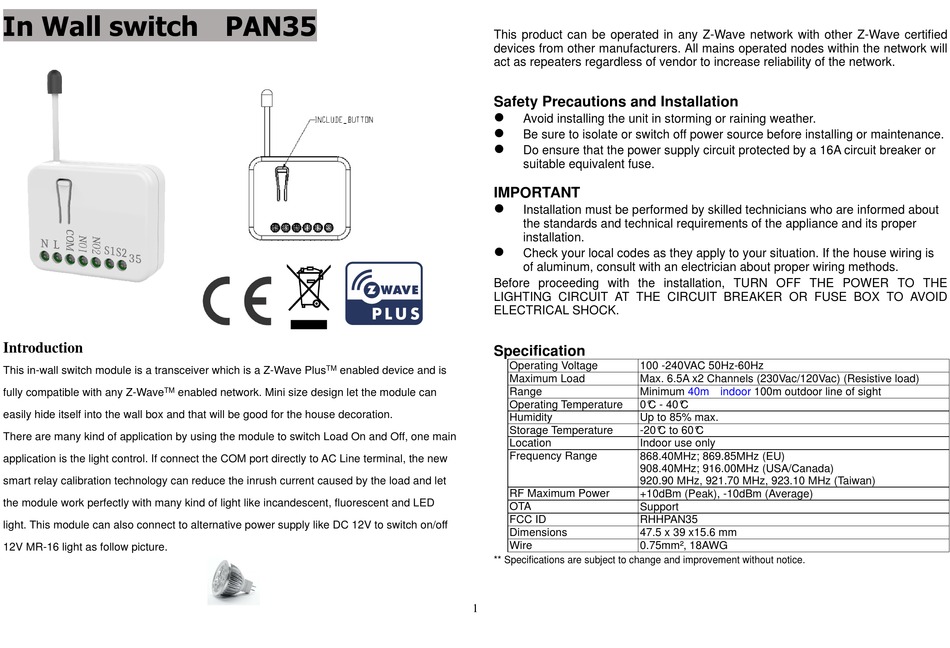

Philio PAN35 Manual

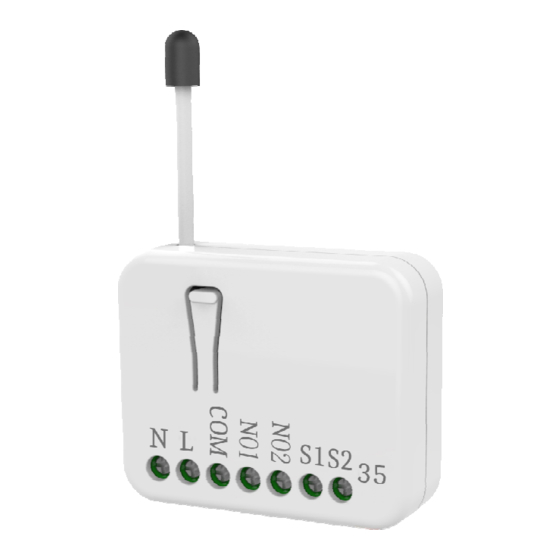

In Wall switch PAN35
Introduction
This in-wall switch module is a transceiver which is a Z-Wave Plus
fully compatible with any Z-Wave TM enabled network. Mini size design let the module can
easily hide itself into the wall box and that will be good for the house decoration.
There are many kind of application by using the module to switch Load On and Off, one main
application is the light control. If connect the COM port directly to AC Line terminal, the new
smart relay calibration technology can reduce the inrush current caused by the load and let
the module work perfectly with many kind of light like incandescent, fluorescent and LED
light. This module can also connect to alternative power supply like DC 12V to switch on/off
12V MR-16 light as follow picture.
This product can be operated in any Z-Wave network with other Z-Wave certified
devices from other manufacturers. All mains operated nodes within the network will
act as repeaters regardless of vendor to increase reliability of the network.
Safety Precautions and Installation



IMPORTANT


Before proceeding with the installation, TURN OFF THE POWER TO THE
LIGHTING CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID
ELECTRICAL SHOCK.
Specification
TM enabled device and is
** Specifications are subject to change and improvement without notice.
1
Avoid installing the unit in storming or raining weather.
Be sure to isolate or switch off power source before installing or maintenance.
Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.
Installation must be performed by skilled technicians who are informed about
the standards and technical requirements of the appliance and its proper
installation.
Check your local codes as they apply to your situation. If the house wiring is
of aluminum, consult with an electrician about proper wiring methods.
Operating Voltage 100 -240VAC 50Hz-60Hz
Maximum Load Max. 6.5A x2 Channels (230Vac/120Vac) (Resistive load)
Range Minimum 40m indoor
Operating Temperature 0° C - 40° C
Humidity Up to 85% max.
Storage Temperature -20° C to 60° C
Location Indoor use only
Frequency Range 868.40MHz; 869.85MHz (EU)
908.40MHz; 916.00MHz (USA/Canada)
920.90 MHz, 921.70 MHz, 923.10 MHz (Taiwan)
RF Maximum Power +10dBm (Peak), -10dBm (Average)
OTA Support
FCC ID RHHPAN35
Dimensions
47.5 x 39 x15.6 mm
Wire
0.75mm², 18AWG
100m outdoor line of sight
