Philio PAN24 Manual

Smart touch in-wall switch

Advertisement

Quick Links

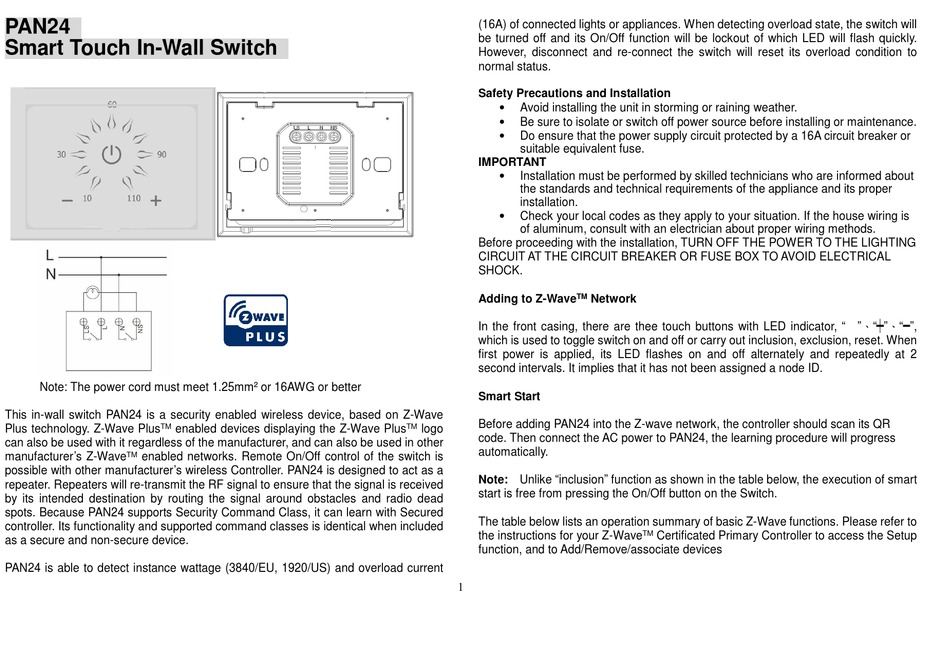

PAN24
Smart Touch In-Wall Switch
Note: The power cord must meet 1.25mm² or 16AWG or better
This in-wall switch PAN24 is a security enabled wireless device, based on Z-Wave
TM
Plus technology. Z-Wave Plus
enabled devices displaying the Z-Wave Plus
can also be used with it regardless of the manufacturer, and can also be used in other
manufacturer's Z-Wave
TM
enabled networks. Remote On/Off control of the switch is
possible with other manufacturer's wireless Controller. PAN24 is designed to act as a
repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received
by its intended destination by routing the signal around obstacles and radio dead
spots. Because PAN24 supports Security Command Class, it can learn with Secured
controller. Its functionality and supported command classes is identical when included
as a secure and non-secure device.
PAN24 is able to detect instance wattage (3840/EU, 1920/US) and overload current
(16A) of connected lights or appliances. When detecting overload state, the switch will
be turned off and its On/Off function will be lockout of which LED will flash quickly.
However, disconnect and re-connect the switch will reset its overload condition to
normal status.
Safety Precautions and Installation
Avoid installing the unit in storming or raining weather.
Be sure to isolate or switch off power source before installing or maintenance.
Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.
IMPORTANT
Installation must be performed by skilled technicians who are informed about
the standards and technical requirements of the appliance and its proper
installation.
Check your local codes as they apply to your situation. If the house wiring is
of aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE LIGHTING
CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID ELECTRICAL
SHOCK.
Adding to Z-Wave
TM
In the front casing, there are thee touch buttons with LED indicator, "    "、"┿"、"━",
which is used to toggle switch on and off or carry out inclusion, exclusion, reset. When
first power is applied, its LED flashes on and off alternately and repeatedly at 2
second intervals. It implies that it has not been assigned a node ID.
Smart Start
Before adding PAN24 into the Z-wave network, the controller should scan its QR
TM
logo
code. Then connect the AC power to PAN24, the learning procedure will progress
automatically.
Note: Unlike "inclusion" function as shown in the table below, the execution of smart
start is free from pressing the On/Off button on the Switch.
The table below lists an operation summary of basic Z-Wave functions. Please refer to
the instructions for your Z-Wave
function, and to Add/Remove/associate devices
1
Network
TM
Certificated Primary Controller to access the Setup
