Crestron TS-70 Series Quick Start

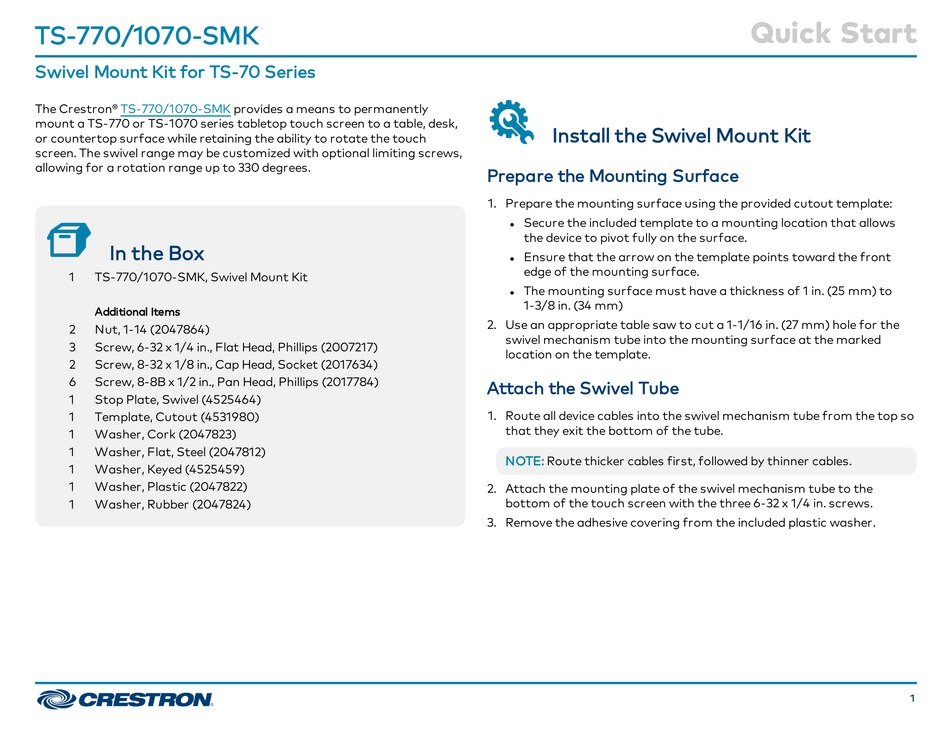

TS-770/1070-SMK
Swivel Mount Kit for TS-70 Series

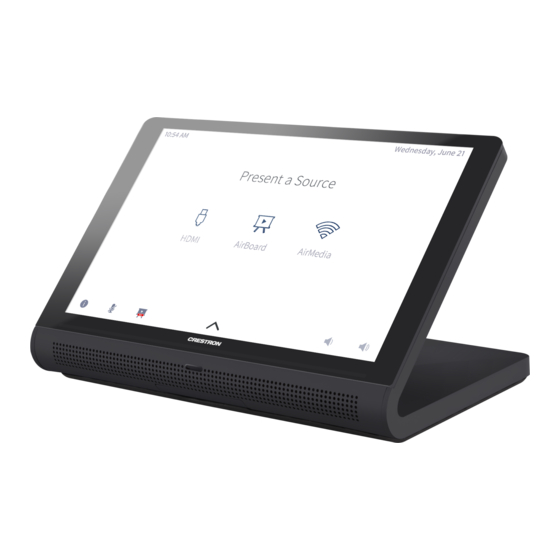

The Crestron® TS-770/1070-SMK
mount a TS-770 or TS-1070 series tabletop touch screen to a table, desk,
or countertop surface while retaining the ability to rotate the touch
screen. The swivel range may be customized with optional limiting screws,
allowing for a rotation range up to 330 degrees.
In the Box
1 TS-770/1070-SMK, Swivel Mount Kit
Additional Items
2 Nut, 1-14 (2047864)
3 Screw, 6-32 x 1/4 in., Flat Head, Phillips (2007217)
2 Screw, 8-32 x 1/8 in., Cap Head, Socket (2017634)
6 Screw, 8-8B x 1/2 in., Pan Head, Phillips (2017784)
1 Stop Plate, Swivel (4525464)
1 Template, Cutout (4531980)
1 Washer, Cork (2047823)
1 Washer, Flat, Steel (2047812)
1 Washer, Keyed (4525459)
1 Washer, Plastic (2047822)
1 Washer, Rubber (2047824)
provides a means to permanently
Install the Swivel Mount Kit
Prepare the Mounting Surface
1. Prepare the mounting surface using the provided cutout template:
Secure the included template to a mounting location that allows
l
the device to pivot fully on the surface.
Ensure that the arrow on the template points toward the front
l
edge of the mounting surface.
The mounting surface must have a thickness of 1 in. (25 mm) to
l
1-3/8 in. (34 mm)
2. Use an appropriate table saw to cut a 1-1/16 in. (27 mm) hole for the
swivel mechanism tube into the mounting surface at the marked
location on the template.
Attach the Swivel Tube
1. Route all device cables into the swivel mechanism tube from the top so
that they exit the bottom of the tube.
NOTE: Route thicker cables first, followed by thinner cables.
2. Attach the mounting plate of the swivel mechanism tube to the
bottom of the touch screen with the three 6-32 x 1/4 in. screws.
3. Remove the adhesive covering from the included plastic washer.
Quick Start
1
