Mounting

6 Mounting
6.1

Mounting requirements

6.1.1 Suitable mounting position
1
A
C

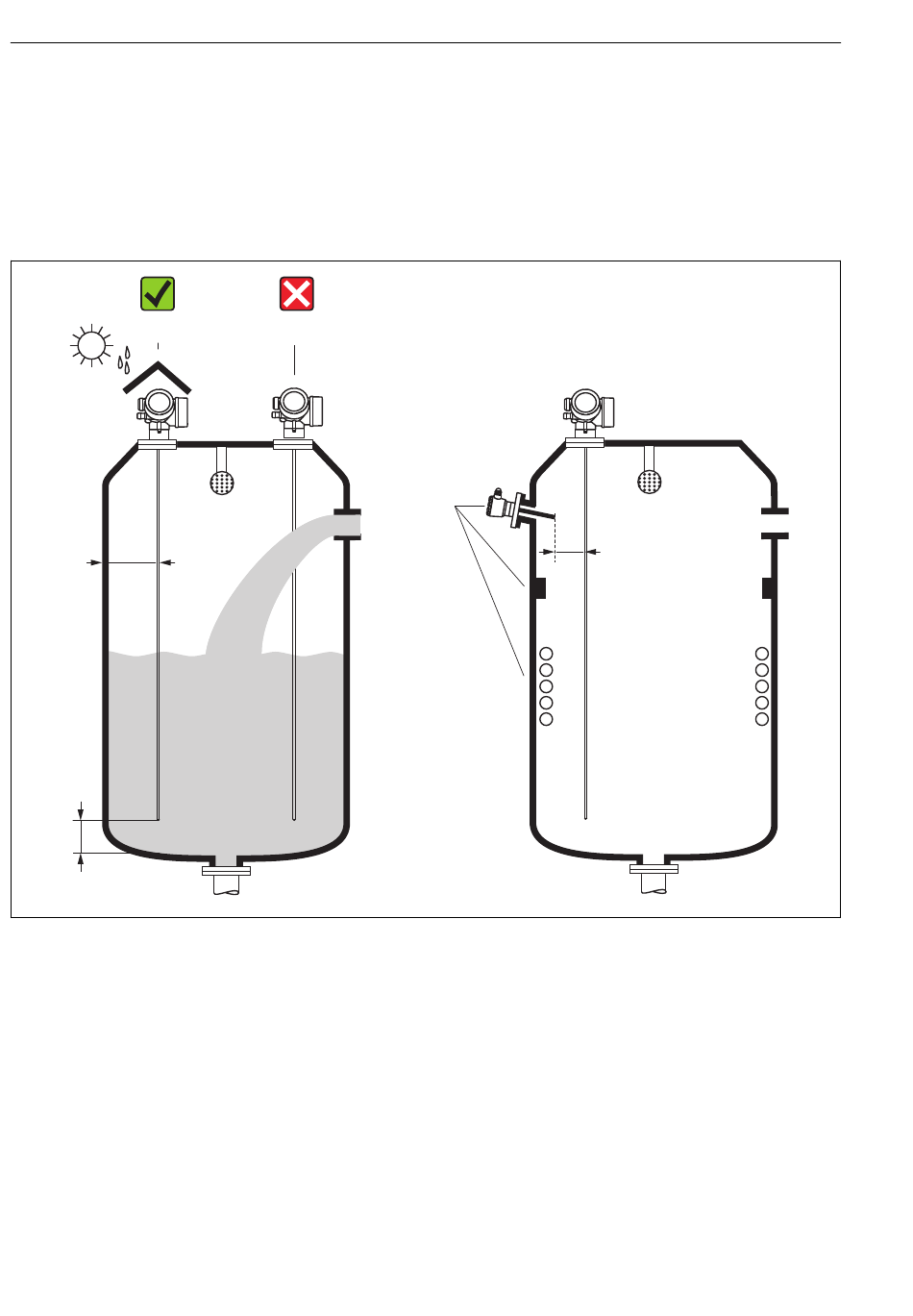

 4 Mounting requirements for Levelflex
Mounting distances
• Distance (A) between wall and rod probe:
– for smooth metallic walls: > 50 mm (2")
– for plastic walls: > 300 mm (12") mm to metallic parts outside the vessel
• Distance (B) between rod probe and internal fittings (3) in the vessel: > 300 mm (12")
• Distance (C) from end of probe to bottom of the vessel: > 10 mm (0.4 in).
14
2
3
Levelflex FMP53 HART
B
Endress+Hauser
A0014130
