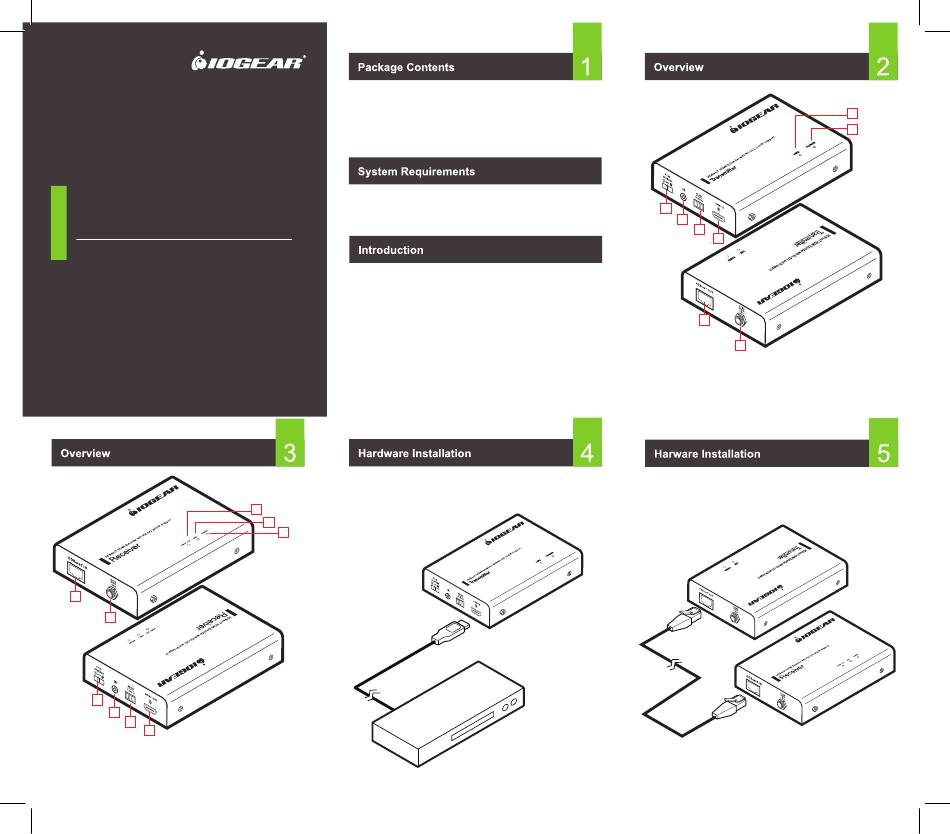

IOGear GVE340 Quick Start Manual

Quick Start Guide
HDBaseT HD Extender with RS-232
and IR Support
GVE340
PART NO. Q1527
Receiver
4
5
6
7
8
9
1. HDMI Out LED
2. LInk LED 6. F/W upgrade switch
3. Power LED
7. IR Port (Connect to IR Receiver)
4. HDBaseT Input Port
8. RS-232 Port
5. Power Jack (Optional) 9. HDMI Output Port
1 x GVE340 Transmitter
1 x GVE340 Receiver
1 x Power Adapter (For transmitter)
2 x IR Extender cables
- HDMI output from source
- HDMI input to display
The GVE340 HDMI HDBaseT-Lite Extender extends an HDBaseT signal
up to 70m from the HDBaseT source using one Cat 5e/6/6a cable.
GVE340 supports RS-232 and IR signal pass-through, allowing you to
control the HDMI source device from the remote unit (GVE340R) while
also allowing access to the HDMI display device from the local unit
(GVE340T) as an HDMI local pass-through. IR signals can also be
extended in both directions.
The GVE340 features Power over HDBaseT (POH) which can send
power over Cat 5e/6/6a cable without an additional power supply.
The GVE340 is HDMI (3D, Deep Color, 4k) and HDCP compatible. The
www.iogear.com
GVE340 is perfect for a digital entertainment center or any installation
that requires superior video quality.
1. Connect the HDMI Input Port on the GVE340T to the HDMI Output
Port on your video source device using HDMI cable.
1
2
3
left view
right view
2 x Terminal blocks
Transmitter
1 x Quick Installation Guide
1 x Warranty Card
1. Link LED
2. Power LED
3. F/W Upgrade Port and Switch
4. IR Port (Connect to IR Receiver)
2. Connect one end of the RJ-45 cable to the HDBaseT output port
Transmitter
Video Source
left view
3
4
5
6
right view
7
8
5. RS-232 Port
6. HDMI Input Port
7. HDBaseT Output Port
8. Power Jack
on the transmitter. Then connect the other end of the RJ-45 cable
to the HDBaseT input port on the receiver.
Transmitter
Receiver
1
2
